Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System
Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System
Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System
Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System
Specifications
Brand Name :
RSUN or OEM
Model Number :
RSN Series
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10,000PCS Per month
Delivery Time :
30 days
Packaging Details :
Wooden box
Place of Origin :
China
Type :
All in one Energy Storage System
Input Voltage :
208 / 220 / 230 / 240 VAC
Output Voltage Range :
(220V~240V)±5%
PV Max. Charging Current :
100A
Battery type :
LiFePO4 battery
Frequency :
50/60Hz±0.1%
Max. Output Current :
22.7A
MPPT solar controller :
Yes
Parallel Interface :
RS485/CAN/RS232/SNMP/WIFI/Bluetooth
Color :
Black,white
Description

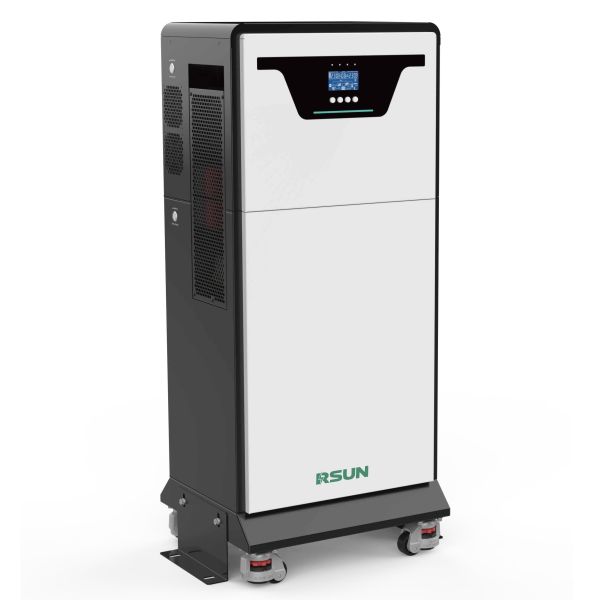

Stackable All-in-One ESS 3.6kWh +6kWh with wide grid input Energy Storage System

The Stacked RSN Series by RSUN is a space-saving, floor-mounted home energy storage system with a modular battery design. Offering 3kW or 5kW output and scalable LiFePO₄ storage from 5.12kWh to 15.36kWh, it ensures reliable power for household appliances using stored solar energy.

This all-in-one ESS includes integrated WiFi and Bluetooth for remote system monitoring and control. Its easy stackable setup, sleek design, and autonomous energy use make it a smart, user-friendly choice for modern residential solar applications.

FEATURES:

• Stylish all-in-one floor unit with built-in hybrid inverter and battery
• MPPT solar controller and power source priority selection
• Compatible with wide grid input voltage ranges
• Advanced protections for safe and reliable operation
• Long-life lithium battery with up to 8000 charge cycles
• Scalable stack design for flexible energy storage
• Smart connectivity: WiFi, Bluetooth, RS485, SNMP

PRODUCT OVERVIEW:

Stackable All In One ESS 3.6kWh 6kWh With Wide Grid Input Energy Storage System

SPECIFICATIONS:

Model RSN 1.2kWh+4kWh RSN 3.6kWh+6kWh RSN 6kWh+10kWh RSN 11kWh+16kWh
AC Input
Rated Input Voltage 208/220/230/240 VAC
Input Voltage Range 170~280VAC(For PC);90~280VAC(For Home Appliances)
Frequency Range 50/60Hz(Auto Sensing)
AC Charging Current Range 2-60A 2-100A 2-80A 2-120A
Max. Input Current 10A 20A 26A 50A
PV Input
Solar Charging Type MPPT
PV Max. Input Power 1KW 4KW 5.5KW 5.5KW*2
MPPT Tracking Voltage Range 120-430 VDC
Max. PV Input Voltage 450 VDC
PV Charging Current Range 100A 0~80A
Max. Charging Current 60A 100A 80A 160A
Output
Rated Output Voltage 1.2kW 3.6kW 6.0kW 11kW
Output Voltage Range (220V~240V)±5%
Frequency 50/60Hz±0.1%
Max. Output Current 22.7A
Peak Power 2400W 7200W 12000W 11000W*2
Overload Capacity
Product Description (Battery Mode)		 1min@102%~110% Load ; 10s@110%~130%Load; 3s@130%~150% Load ;200ms@>150% Load
Peak Efficiency >94% battery mode >99% line mode
Transfer Time 10ms
Battery
Battery Voltage 12.8VDC 25.6VDC 51.2vdc 51.2vdc
Battery Energy 4.02kWh 8.04kWh 10.24kWh 16.08kWh
Cell technology LiFePO4
DOD 80%
Product General Data
Designed Life-span cycle 6000
Communication Interface RS232, RS485, CAN(Standard),SNMP/Wifi/Bluetooth(Optional)
Display LCD&LED
Parallel Interface RS485/CAN/RS232/SNMP/WIFI/Bluetooth
Operation Environment
Temperature		 0~40℃
Environment Humidity -15~60℃
Operation Altitude <3000m
Cooling Mode Active Cooling
Noise Emission <50db

FAQ:

Q1: Can I get a sample to test?
A: Absolutely. Samples and mixed model orders are welcome.

Q2: How fast can you deliver?
A: Samples in 5 - 7 days. Bulk orders take around 3 - 4 weeks.

Q3: What’s the smallest order I can place?
A: Just 1 unit to start.

Q4: What’s the shipping method and timing?
A: Express or sea freight. Delivery time varies by region.

Q5: How do I order?
A: Tell us your needs, Receive quote, Confirm order, Production begins.

Q6: Can I customize branding?
A: Yes, OEM service is fully supported.

Q7: What’s the warranty policy?
A: 5 - 10 years depending on the model and agreement.
