Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller
Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller
Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller
Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller
Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller
Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller
Specifications
Brand Name :
RSUN or OEM
Model Number :
RSN Series
MOQ :
10PCS
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10,000PCS Per month
Delivery Time :
30 days
Packaging Details :
Wooden box
Place of Origin :
China
Type :
All in one Energy Storage System
Input Voltage :
208/220/230/240 VAC
Battery type :
LiFePO4 battery
Cooling Mode :
Active Cooling
Peak Efficiency :
>94% battery mode >99% line mode
Transfer time :
Typical 2-6ms,<10ms
MPPT solar controller :
Yes
Communication interface :
RS232, RS485, CAN, Bluetooth
Protection :
overload,Overvoltage,Short Circuit,discharge,over temperature
Description

Stackable All-in-One Energy Storage System 6KWh +10kWh ESS MPPT Solar controller

The RSUN Stacked RSN Series is a fully integrated residential energy storage solution featuring a modular, stackable LiFePO₄ battery system (capacity range: 5.12kWh to 15.36kWh). Designed to deliver 3kW or 5kW output, it supports a wide range of household loads with reliable, sustainable power.

This system stores surplus solar energy generated during the day, ensuring energy independence and reducing electricity costs. Built-in WiFi and Bluetooth enable real-time monitoring and control via mobile devices, while the floor-standing, compact design simplifies installation and operation. Ideal for home energy management with flexibility and long-term efficiency.

FEATURES:

• Floor-standing hybrid ESS with sleek, modern design
• Integrated inverter, lithium battery, and MPPT solar controller
• User-selectable output source: solar, battery, or grid
• Broad AC input range adaptable to various grid conditions
• Comprehensive protection: over-discharge, overload, over-temp, short-circuit
• Long-life Li-ion battery, up to 8000 cycles
• Modular stack design for easy maintenance and capacity expansion
• Supports RS485, SNMP, WiFi, and Bluetooth monitoring

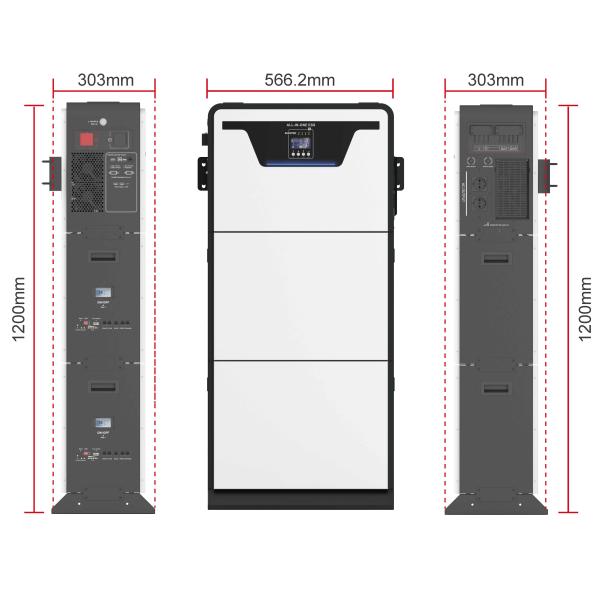

PRODUCT OVERVIEW:

Stackable All In One Energy Storage System 6KWh 10kWh ESS MPPT Solar Controller

SPECIFICATIONS:

Model RSN 1.2kWh+4kWh RSN 3.6kWh+6kWh RSN 6kWh+10kWh RSN 11kWh+16kWh
AC Input
Rated Input Voltage 208/220/230/240 VAC
Input Voltage Range 170~280VAC(For PC);90~280VAC(For Home Appliances)
Frequency Range 50/60Hz(Auto Sensing)
AC Charging Current Range 2-60A 2-100A 2-80A 2-120A
Max. Input Current 10A 20A 26A 50A
PV Input
Solar Charging Type MPPT
PV Max. Input Power 1KW 4KW 5.5KW 5.5KW*2
MPPT Tracking Voltage Range 120-430 VDC
Max. PV Input Voltage 450 VDC
PV Charging Current Range 100A 0~80A
Max. Charging Current 60A 100A 80A 160A
Output
Rated Output Voltage 1.2kW 3.6kW 6.0kW 11kW
Output Voltage Range (220V~240V)±5%
Frequency 50/60Hz±0.1%
Max. Output Current 22.7A
Peak Power 2400W 7200W 12000W 11000W*2
Overload Capacity
Product Description (Battery Mode)		 1min@102%~110% Load ; 10s@110%~130%Load; 3s@130%~150% Load ;200ms@>150% Load
Peak Efficiency >94% battery mode >99% line mode
Transfer Time 10ms
Battery
Battery Voltage 12.8VDC 25.6VDC 51.2vdc 51.2vdc
Battery Energy 4.02kWh 8.04kWh 10.24kWh 16.08kWh
Cell technology LiFePO4
DOD 80%
Product General Data
Designed Life-span cycle 6000
Communication Interface RS232, RS485, CAN(Standard),SNMP/Wifi/Bluetooth(Optional)
Display LCD&LED
Parallel Interface RS485/CAN/RS232/SNMP/WIFI/Bluetooth
Operation Environment
Temperature		 0~40℃
Environment Humidity -15~60℃
Operation Altitude <3000m
Cooling Mode Active Cooling
Noise Emission <50db

FAQ:

Q1: Can I order samples?
A: Yes, sample orders including mixed models are supported for testing.

Q2: What’s your lead time?
A: 5 - 7 days for samples; approx. 25 working days for bulk orders.

Q3: What’s the MOQ?
A: Minimum order is 1 unit, ideal for pilot testing or demo use.

Q4: How are battery packs shipped?
A: Via express (DHL, FedEx) or sea freight; delivery time depends on destination.

Q5: How do I place an order?
A: Share your needs, Get a tailored quote, Approve sample, Pay deposit, Production starts.

Q6: Is OEM branding available?
A: Yes, custom logos, labels, and packaging are available.

Q7: Do you offer warranty?
A: We provide 5 to 10 years warranty, depending on product category and terms.
