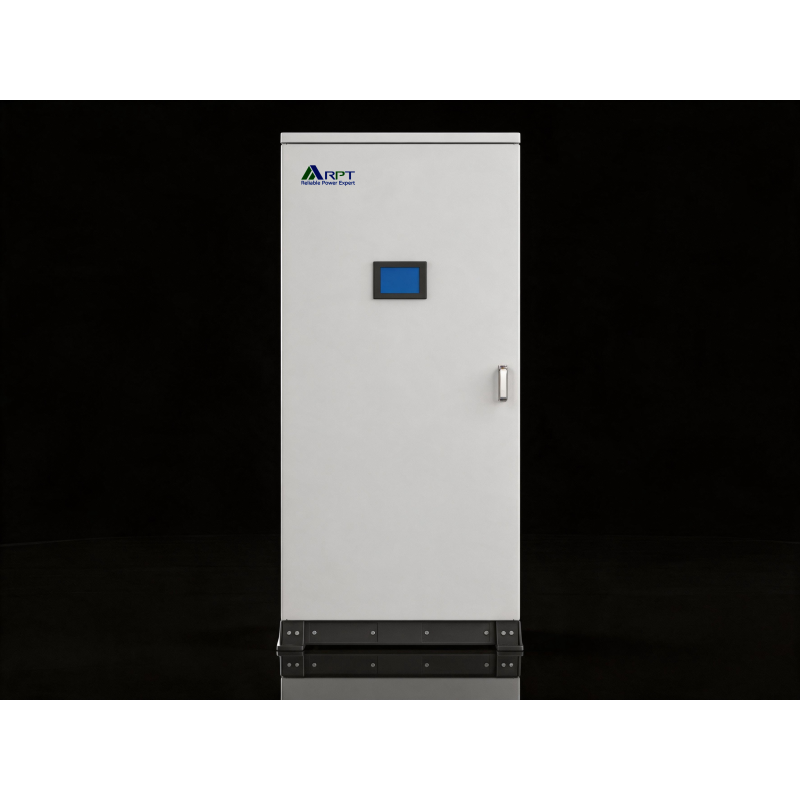

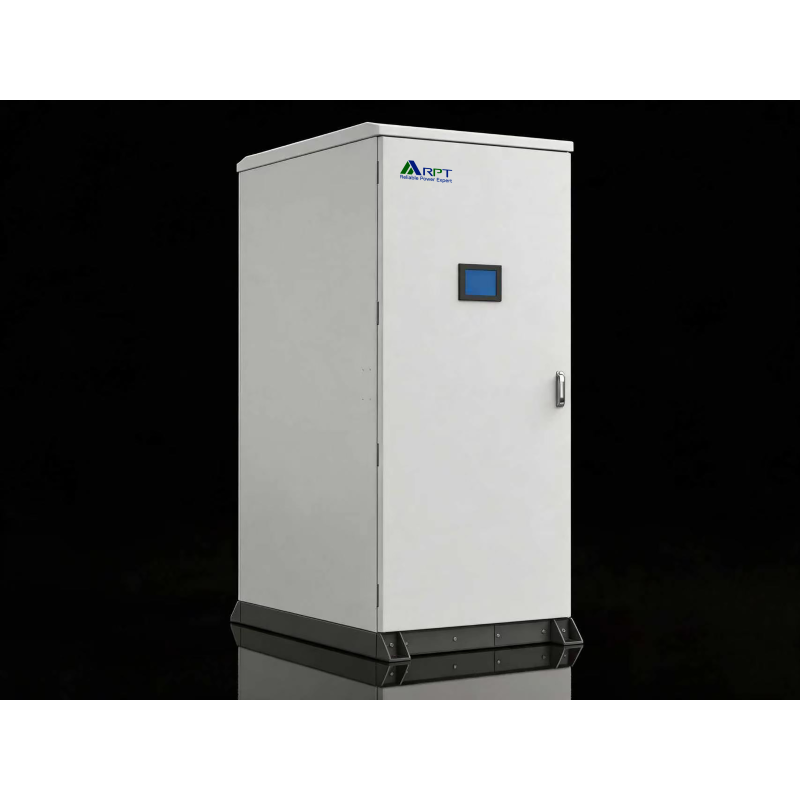

RPCI-HVC7
50kW + 112kWh

C&I Energy Storage System

Specifications

Battery System Voltage :

358.4V

Battery Module Type :

51.2V 314Ah

Battery Module Number :

Inverter Power :

50kW

Description

RPCI-HVC7 is a large-scale commercial and industrial energy storage system

featuring a 50kW hybrid inverter with 112kWh battery capacity. Built with

7× 51.2V 314Ah battery modules at 358.4V system voltage, supporting up

to 76.8kW PV input for large commercial applications.

Key Features

50kW built-in hybrid inverter

112kWh high-capacity battery

7× 51.2V 314Ah battery modules

358.4V system voltage

Up to 76.8kW PV input

>20ms automatic backup switch

WiFi/GPRS cloud monitoring

Scalable modular design

Technical Specifications

Inverter Power50kW

Battery System Voltage358.4V

Battery Module Type51.2V 314Ah

Battery Module Number7

Battery Capacity314Ah

Normal Energy112kWh

Battery Max Charge/Discharge Current157A

Charge Voltage386.4V

Cut-off Voltage313.6V

Max Battery Voltage850V

Min Battery Voltage160V

Max PV Input Power38.4kW × 2

Max PV Voltage850V

MPPT Voltage Range200 ~ 800V

AC Output Voltage400V/230V

AC Voltage Range-20% ~ +15%

Normal AC Current73A

Power Factor-0.8 ~ 0.8

System Efficiency97%

Application Scenarios

Large Commercial

Industrial Parks

Peak Shaving

Demand Response

Certifications

CEIEC62019IEC62477IEC61000EN50549

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

RPCI-HVC7 50kW + 112kWh C&I Energy Storage System

Ask Latest Price

Product Detail

Battery System Voltage :

358.4V

Battery Module Type :

51.2V 314Ah

Battery Module Number :

Inverter Power :

50kW

Contact Supplier

Shenzhen Renergy Power Technology Co.,Ltd

Site Member

1 Years

Since 2021

Business Type :

Manufacturer

Main Products :

C&I Energy Storage, Telecom Batteries, UPS Batteries

Employee Number :

450~550

Certification Level :

Site Member

Discover similar products

RPCI-Mega M168 700kW + 1.68MWh Mega-Scale Containerized ESS

Contact Now
RPCI-HVC5 125kW + 241/261kWh All-In-One C&I ESS

Contact Now

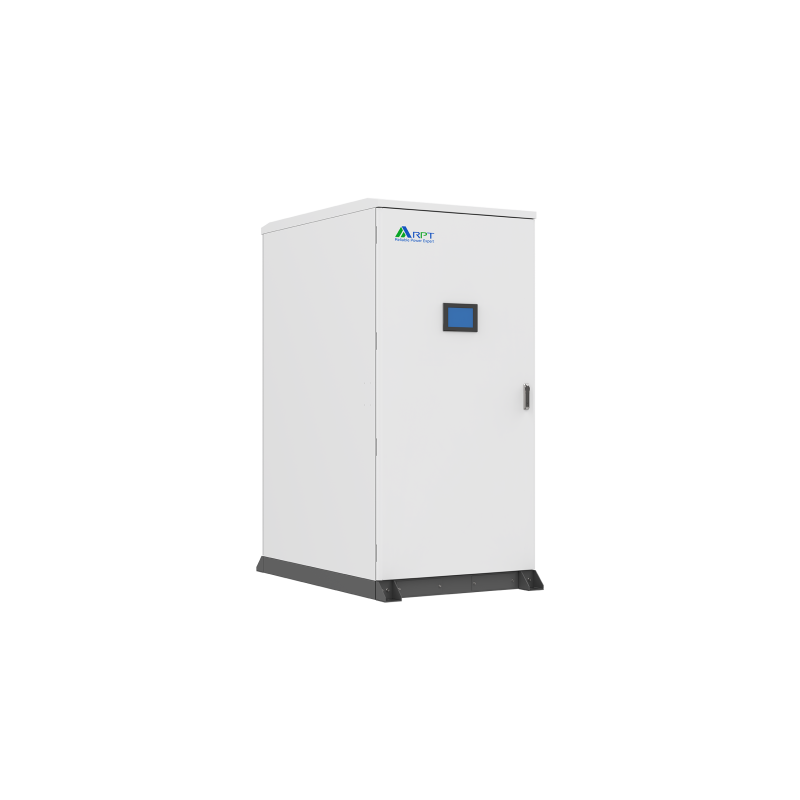

RPCI-HVC6 20kW + 50kWh C&I Energy Storage System
