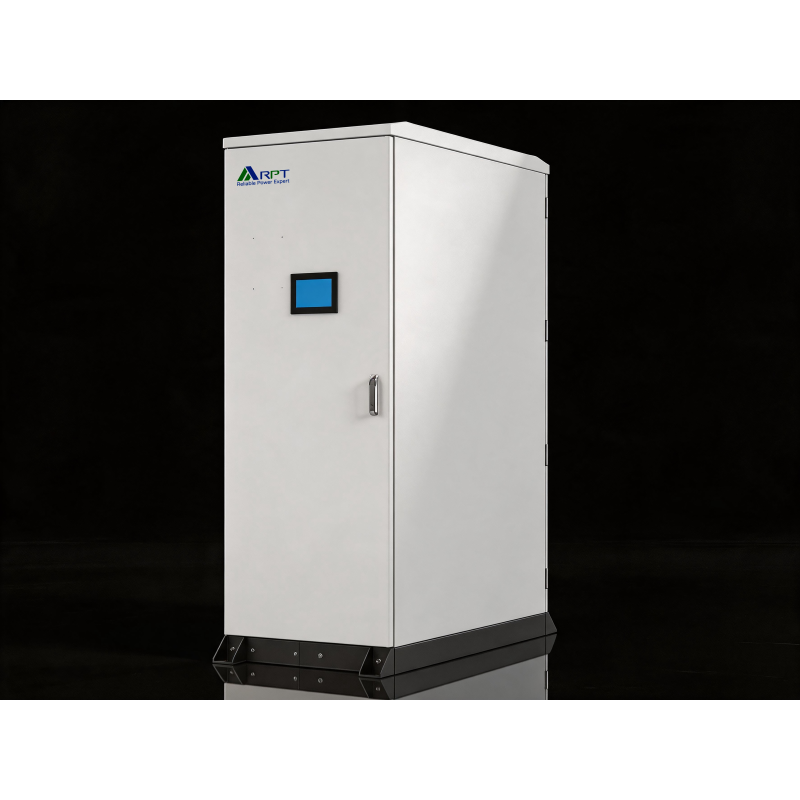

RPCI-HVC6
20kW + 50kWh

C&I Energy Storage System

Specifications

Battery System Voltage :

204.8V

Inverter Power :

20kW

Battery Capacity :

280Ah

Normal Energy :

50kWh

Description

RPCI-HVC6 is a commercial and industrial energy storage system featuring a

20kW hybrid inverter with 50kWh battery capacity. The integrated cabinet

design includes air conditioner cooling, built-in inverter, and supports

WiFi/GPRS cloud monitoring for remote management.

Key Features

20kW built-in hybrid inverter

50kWh LiFePO4 battery system

Integrated cabinet with air conditioner

97% system efficiency

WiFi/GPRS cloud monitoring

Dual MPPT solar input

On-grid and off-grid operation

Remote management platform

Technical Specifications

Inverter Power20kW

Battery System Voltage204.8V

Battery Capacity280Ah

Normal Energy50kWh

Battery Max Charge/Discharge Current100A

Charge Voltage220.8V

Cut-off Voltage179.2V

Max Battery Voltage850V

Min Battery Voltage160V

Max PV Input Power19.2kW + 19.2kW

Max PV Voltage850V

MPPT Voltage Range200 ~ 830V

AC Output Voltage400V/230V

AC Voltage Range-20% ~ +15%

Frequency Range50Hz/60Hz

Power Factor-0.8 ~ 0.8

System Efficiency97%

Cabinet Dimensions800 × 1450 × 2100 mm

System Weight≈915 kg

CoolingAir Conditioner

IP RatingIP20

Work Temperature-30℃ ~ 60℃

Application Scenarios

Commercial Buildings

Industrial Facilities

Peak Shaving

Solar+Storage

Certifications

CEIEC62019IEC62477IEC61000EN50549

Send your message to this supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Send Now

Submission successful!

RPCI-HVC6 20kW + 50kWh C&I Energy Storage System

Ask Latest Price

Product Detail

Battery System Voltage :

204.8V

Inverter Power :

20kW

Battery Capacity :

280Ah

Normal Energy :

50kWh

Contact Supplier

Shenzhen Renergy Power Technology Co.,Ltd

Site Member

1 Years

Since 2021

Business Type :

Manufacturer

Main Products :

C&I Energy Storage, Telecom Batteries, UPS Batteries

Employee Number :

450~550

Certification Level :

Site Member

Discover similar products

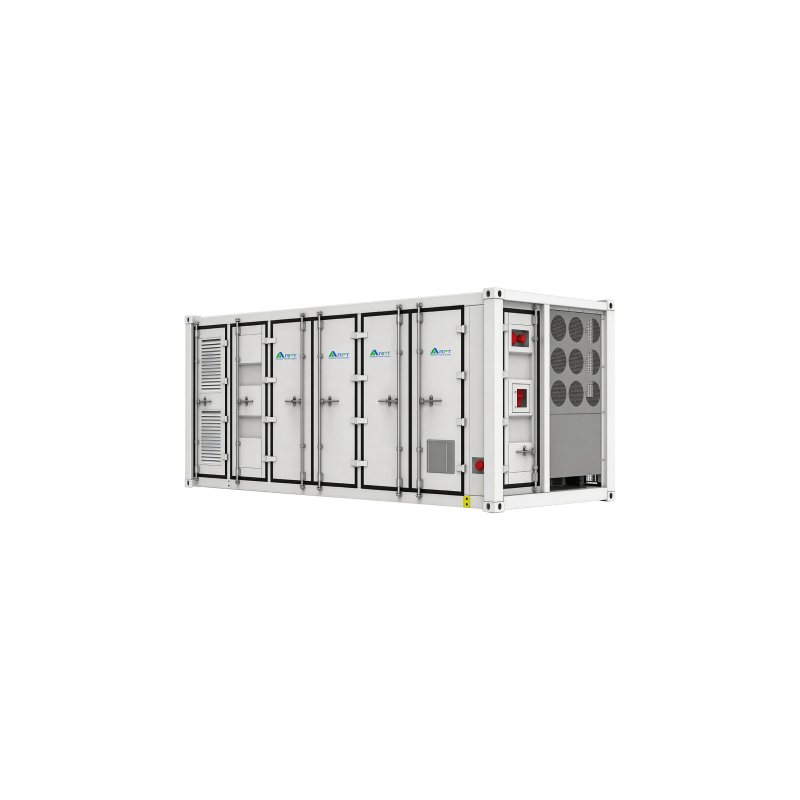

RPCI-Mega M168 700kW + 1.68MWh Mega-Scale Containerized ESS

Contact Now
RPCI-HVC5 125kW + 241/261kWh All-In-One C&I ESS

Contact Now

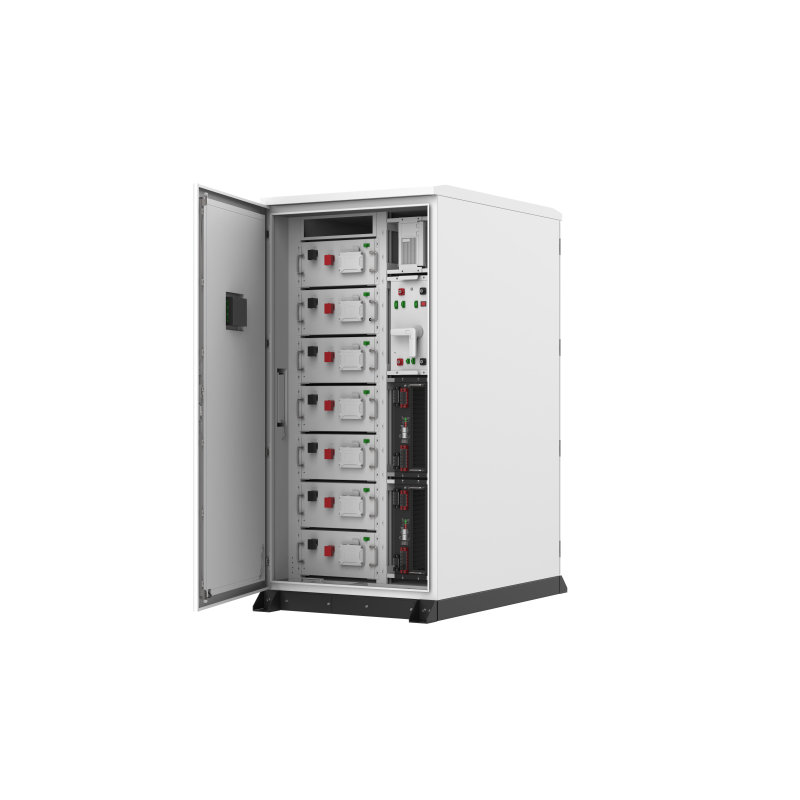

RPCI-HVC7 50kW + 112kWh C&I Energy Storage System
