Specifications
Supply Ability :
Can produce 8-10 molds per month
Brand :
SUNMORE
Model Number :
SM-ROTO-CON-S
Application Scope :
Special Custom Conical Tank Rotomold For Rotomolding Factories Mass Producing Vertical Hollow Plastic Conical Storage Vessels, Custom Cast Steel Vertical Conical Water Tank Mould For Environmental Water Storage Equipment Manufacturers, Drawing Customizable
Standard Integrated Structure :
Vertical Cast Steel Conical Water Tank Mold Cavity, Full Circle Stainless Steel Quick Clamp Locking System, Bottom Radial Star Integrated Carbon Steel Support Lifting Frame With Lifting Lugs, Mold Positioning Pin Assembly, Standard Connecting Flange For Ro
MOQ :
1 Piece
Delivery Time :
30-60 work days
Features :
OEM Custom Cast Steel Vertical Conical Water Tank Rotomold With Radial Star Integrated Support Lifting Frame & Full Circle Stainless Steel Quick Clamps, Balanced Heat Conduction Cast Steel Cavity, Dual-Function Load Bearing & Hoisting Radial Frame, Fast Qu
Payment Terms :
T/T
Product Name :
SUNMORE ROTO OEM Custom Cast Steel Conical Water Tank Rotomolding Mould, Vertical Hollow Plastic Conical Storage Tank Mold With Radial Support Lifting Frame & Full Circle Quick Clamps
Custom Service :
OEM Full Customization Of Tank Taper Ratio, Total Volume, Vertical Height, Top & Bottom Caliber, Inlet & Outlet Pipe Port Layout, Mold Thickness, Radial Star Support Lifting Frame Size And Full Circle Quick Clamp Distribution Based On Customer Conical Tank
Price :
Advisory Service
Craft :
Cast Steel Mold Blank Casting Forming, Precision CNC Milling Conical Tank Cavity Contour Machining, Mold Circular Parting Surface Flatness Fine Grinding, Overall High Temperature Resistant Anti-Rust Spraying Treatment, Radial Star Carbon Steel Support Fram
Brand Name :
SunMore
Advantage Customization :
Full drawing customization of tank taper, volume, height, caliber and pipeline layout, fit civil, agricultural and environmental conical plastic tank mass production
Certification :
CE,ISO9001
Place of Origin :
Jiangsu, China
Packaging Details :
Wooden box
Description

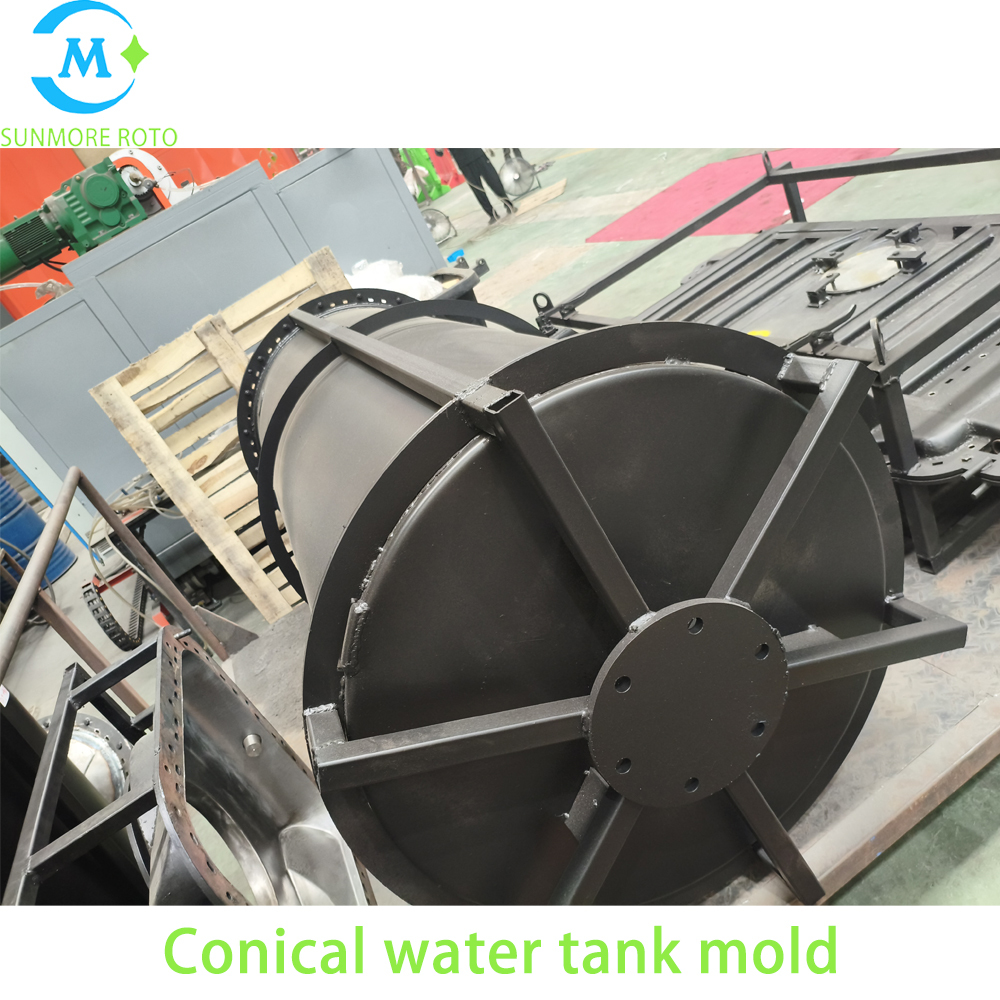

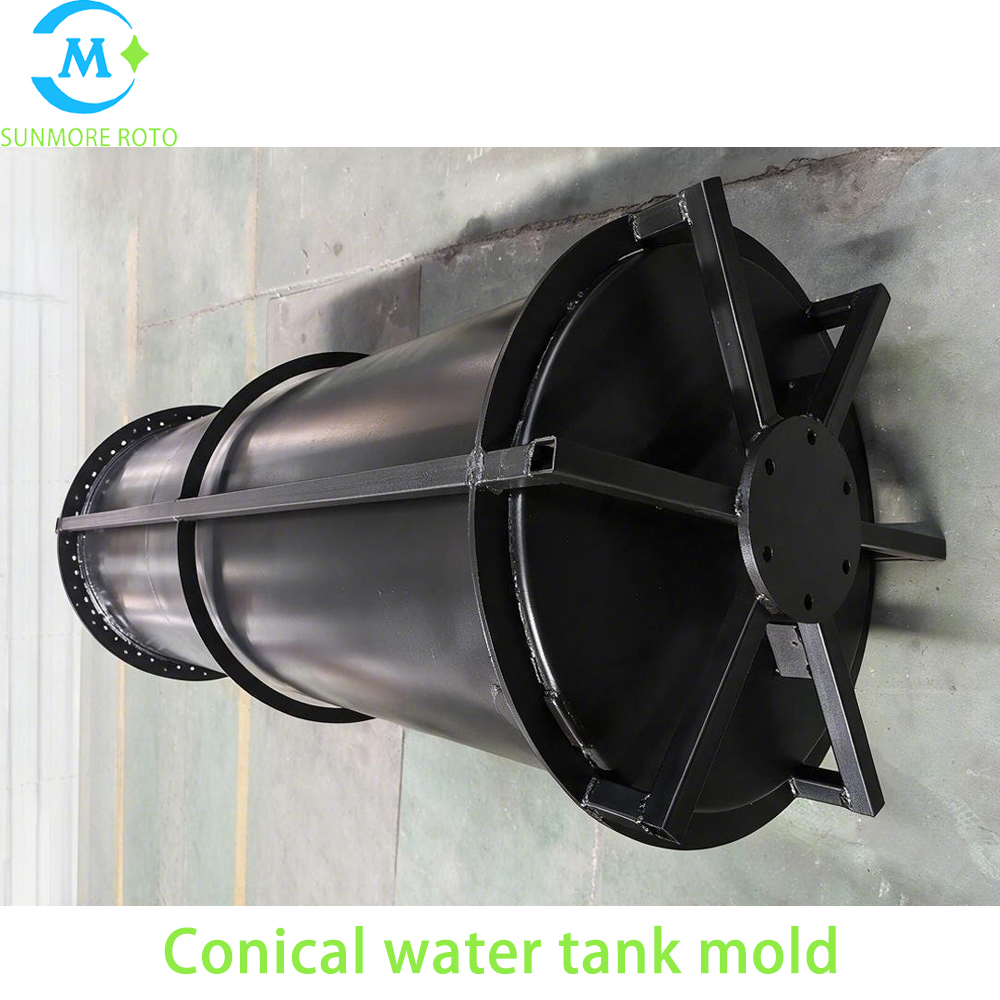

Custom Cast Steel Conical Water Tank Rotomolding Mould
This heavy vertical cast steel rotational mold is specifically engineered for mass production of hollow vertical plastic conical storage tanks. Ideal for rainwater harvesting cones, domestic water storage vessels, sewage sedimentation tanks, and agricultural liquid storage containers.
Product Features
  • Full Drawing OEM Customization: All structural parameters adjustable including tank taper slope, capacity, height, diameters, and pipeline interface layout
  • Thickened Cast Steel Cavity: Balanced heat conduction ensures flawless conical tank surfaces without pits, flow lines, or wall thickness deviation
  • Radial Star-Shaped Support Frame: Integrated carbon steel frame provides stable bearing capacity and convenient crane hoisting with lifting lugs
  • Full Circle Quick Clamps: Evenly distributed stainless steel clamps enable rapid mold locking and opening cycles
  • High-Temperature Resistant Coating: Anti-rust surface treatment withstands repeated heating cycles and facilitates easy cleaning
  • Universal Compatibility: Works with all mainstream bi-axial shuttle rotomolding equipment without mechanical modifications
Technical Specifications
Raw Material Thick high-density cast steel mold cavity, carbon steel radial support frame, stainless steel quick release clamps, high-strength connecting bolts
Production Craft Cast steel blank casting, precision CNC milling, surface grinding, high-temperature anti-rust spraying, frame welding, and assembly testing
Standard Structure Vertical cast steel conical mold cavity, full circle quick clamp system, radial star support lifting frame with lifting lugs, standard connecting flange
Compatible Equipment All bi-axial shuttle rotational molding machines, PLC adjustable cycle automatic equipment, multi-arm shuttle rotomolding machines
Production Applications Hollow vertical plastic conical rainwater harvesting tanks, domestic water storage vessels, sewage sedimentation containers, agricultural liquid storage barrels
Customization Service Full OEM customization of tank dimensions, volume, pipe port layout, mold thickness, and support frame size based on customer drawings
Application Scenarios
  • Rotomolding factories specializing in mass production of vertical hollow plastic conical storage tanks
  • Environmental water storage equipment manufacturers producing conical rain and sewage plastic vessels
  • OEM plastic product factories undertaking conical tank order processing
  • Agricultural irrigation and environmental sewage treatment container manufacturers
Frequently Asked Questions
Can this vertical conical water tank mold be fully customized according to technical drawings?
Yes, we provide complete drawing OEM customization service. We adjust all parameters including tank taper ratio, volume, height, diameters, pipeline port layout, and frame dimensions strictly following customer drawings.
Will the thick cast steel cavity deform after long-time repeated high-temperature operation?
The mold uses thick high-density cast steel blank with precision CNC machining and high-temperature resistant anti-rust spraying treatment, ensuring no deformation or rust oxidation occurs after long-term heating cycles.
What are the advantages of the radial star-shaped support frame and full circle quick clamps?
The radial multi-spoke frame evenly disperses weight for stable bearing during heating, while integrated lifting lugs support fast crane hoisting. Full circle quick clamps provide uniform clamping force for rapid mold opening and closing, significantly improving production efficiency.
