Product Overview

Key Features & Benefits

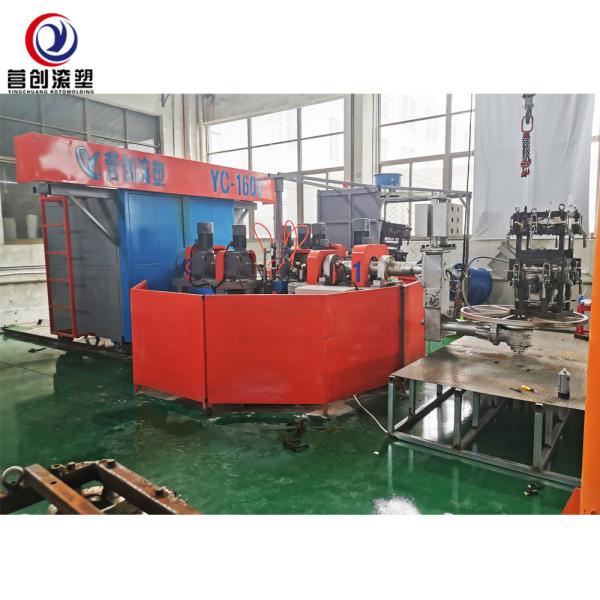

1. Three-Arm Three-Station Synchronous Circulation Production, High Output For Cooler Box Factories


   Three independent rotating arms work simultaneously at heating, cooling and feeding stations. Molding, cooling and mold change proceed at the same time without idle waiting, greatly shortening single cooler box forming cycle and improving daily output of insulated plastic product manufacturers.
2. PLC Touch Screen Full Intelligent Automatic Control, One-Click Unattended Operation


   Industrial PLC central control system with touch screen HMI, all parameters including heating time, cooling time, rotating speed and heating temperature can be set visually on screen. The machine automatically completes full circulation production without frequent manual operation, effectively cutting labor cost and human error rate.
3. Precise Constant Temperature Hot Air Circulation Heating, Uniform Color For Colorful Cooler Boxes

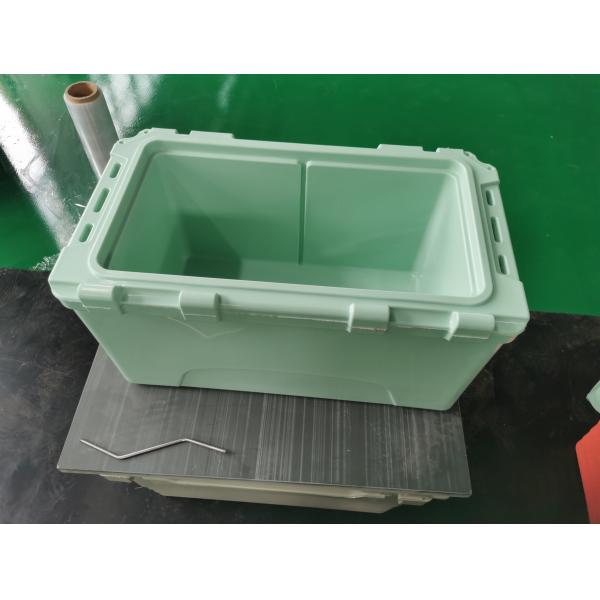

   Optimized multi-channel hot air circulation heating cabin with tiny internal temperature difference, colored plastic raw materials melt evenly inside molds, avoiding color difference, flow marks and surface defects of colorful cooler boxes and ice boxes, stable finished product appearance quality.
4. Independent Drive Motor For Each Arm, Smooth Low-Vibration Rotation


   Every rotating arm is fitted with separate heavy-duty drive assembly, stable dual-axis rotation with small vibration, which prevents raw material stratification and uneven wall thickness of thin-wall portable ice boxes and small insulated containers.
5. Compact Integrated Turntable Layout, Save Workshop Space


   All three working stations are integrated on one rotary base, small floor occupation compared with shuttle rotomolding machines, suitable for medium and small cooler box processing factories with limited workshop area.
6. Complete Safety Protection & Full Customizable Configuration


   Surrounded metal mesh safety isolation fence prevents collision hazards during operation. Rotating arm bearing capacity, heating power, cooling mode and PLC automatic program can be fully customized to match diversified production demands of various sizes and colorful styles of cooler boxes, ice buckets and insulated containers.
