Specifications
Brand Name :
JINPAT
Model Number :
LPT000-0203-F001
Certification :
ISO/CE/RoHS/UL
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, C/C, Paypal
Supply Ability :
50K units/week
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Circuit :
1* Fiber+2*3A
Working Speed :
0-4000rpm
Wavelength :
1310-1550nm
Working Temperature :
-40℃-+80℃
Connector Type :
ST/FC/SC/LC
Current Rating :
3A per circuit
Description

4000 Rpm Integrated Slip Ring Solutions Ultra Long Service Life

LPT000-0203-F001 Features:

  • Transmit optical signal (1ckt) and current (2ckt)
  • Combine various signals (video, serial data, network data) with multiple circuits
  • Transmit signal by fiber in a dozens or hundreds miles long distance, no leakage or electromagnetic interference
  • Operate in harsh environments, no contact or friction
  • Small and light part, convenient to integrate original electronic collector ring, and easy to update
  • Fiber optic rotary joint of two channels, four channels, five to ten channels, or more channels is available
  • Ultra-long service life

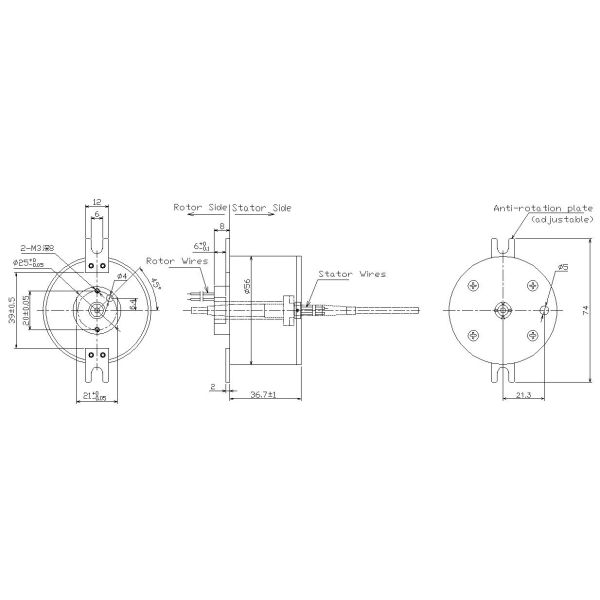

Product outline drawing

4000 Rpm Integrated Slip Ring Solutions Ultra Long Service Life

LPT000-0203-F001 Specification:

Parameters
Circuit 1* Fiber+2*3A Life ≥50 million turns(for reference)
Working Speed 0-4000rpm Working Temperature -40℃-+80℃
Optical
Wavelength 1310-1550nm Fiber Type SM/MM
Insertion Loss <2 dB (Typical:0.5dB) Insertion Loss Variation ~+/-0.25dB(Typical:+/-0.15dB)
Return Loss ＞40 dB Connector Type ST/FC/SC/LC
Electric
Voltage Rating 380VAC/DC Current Rating 3A per circuit
Dielectric Strength 1000VAC@50Hz Insulation Resistance 500MΩ@500VDC
Contact Resistance Fluctuation Value ≤70mΩ((50rpm) Wire Size AWG22#
Mechanical
IP IP54 Contact Precious Metal
Housing Aluminum Alloy Installation Method Rotor Side is fixed on the spindle with screws and plate
For any request, please contact us, our engineers will recommend you proper product or custom solution
