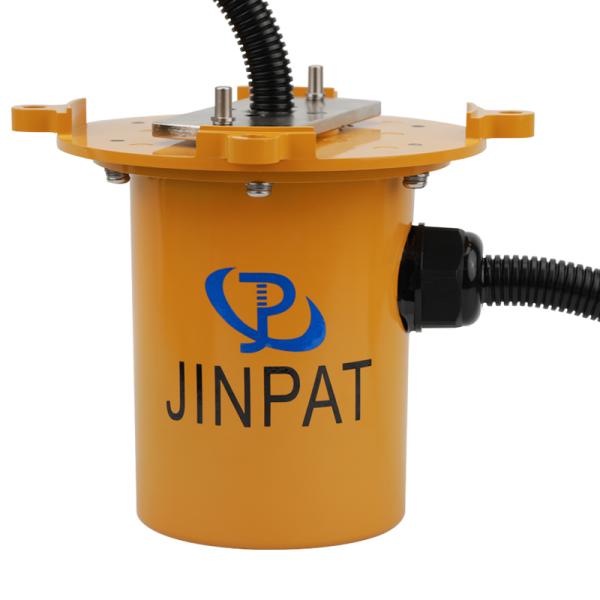

Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
Specifications
Brand Name :
JINPAT
Model Number :
LPTS000-0340-1305
Certification :
ISO9001.ISO14000.CE.UL.FCC.RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Supply Ability :
100 units/week
Packaging Details :
Standard/On Request
Delivery Time :
2 weeks ARO
Payment Terms :
TT/CC/Paypal
Type :
through bore slip ring
Number of circuits :
16
Current rating :
3 circuits@40A, 13 circuits@5A
Feature :
customized
Color :
silver white
Application :
crane
Description

Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals

Description

Slip rings can provide continuous or intermittent rotation while transmitting power and data - simplifying operation, improving application performance, and eliminating the risk of damage to wiring between movable parts.

Slip ring as a rotating hub, to ensure the crane move up and down normally. However, it is different for the light-duty crane and heavy duty crane for the requirements of the slip ring.

Specification
Circuits 16 circuits
Operating Speed 0-100rpm
Working Temperature -30℃~ +70℃
Working Humidity ≤60%RH
Electrical:
Voltage Rating 3 circuits@40A, 13 circuits@5A
Dielectric Strength ≥500V@50Hz
Insulation Resistance 1000MΩ@ 500VDC
Electrical Noise ≤70mΩ Min
Mechanical:
Contact Material Precious metal
Housing Material Stainless Steel
Via Diameter 200mm
Protection IP65

Features

  • Transmit analog signal, digital signal, touch signal, communication signal, telling-signal and so on with low transmission loss at the same time.
  • High protection grade (IP65)
  • Low and high-temperature resistant, salt fog-proof, shock resistant, high pressure resistant.
  • Reliable capacity, long lifetime, easy to maintain
  • Isolation is larger than 60dB

Competitive Advantage

  • reliable
  • high precision
  • support epipodium
  • high current.
  • long lifetime

Options

  • Outside diameter
  • Circuits
  • Loading of each circuit
  • Wire length
  • Different signal compatible
  • Working speed

Main Application

  • Wind Energy Turbines
  • Fiber Optic Cable Reels
  • Medical Systems
  • Robotics Vehicles
  • Security Systems
  • LED lights on the playground equipment

Product display

Large Current IP65 Crane Through Bore Slip Ring Transmitting Various Signals
