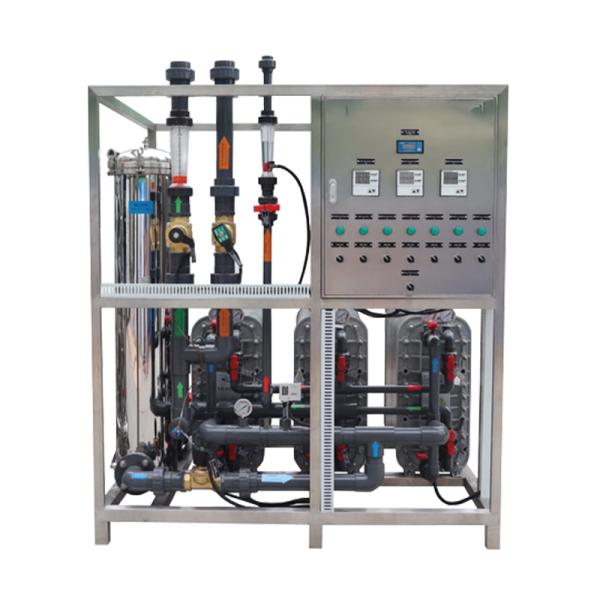

Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
Pump, PLC
Place of Origin :
Hebei, China
Brand Name :
Huayu
warranty :
1 Year
productivity :
100L/Hour
weight (kg) :
300
Processing Type :
Reverse Osmosis, filtration
Dimension(L*W*H) :
2300mm/700mm/1920mm
Power :
3KW, 5KW
Voltage :
380V
Description

Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System

Product Description

EDI (Electrodeionization) is combined with reverse osmosis and other purification devices to remove ions from water. Ion exchange resin in EDI module can be divided into two parts, one part is working resin and the other part is polishing resin, and the boundary between the two is working front. The working resin is responsible for removing most of the ions, while the polishing resin is responsible for removing ions that are more difficult to remove, such as weak electrolytes. The resistivity of ultrapure water produced by EDI systems can be as high as 15-18. 25 MΩ·cm. EDI can be operated either continuously or intermittently.

EDI equipment is applied after the reverse osmosis system to replace the traditional mixed bed ion exchange technology (MB-DI) to produce stable ultrapure water. Compared with mixed ion exchange technology, EDI technology has the following advantages:

Stable water quality.

Easy to realize fully automatic control

No shutdown due to regeneration

No need for chemical regeneration

Low operating cost

Small plant area

Detailed Images
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Our Advantages
Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System

Working principle

Customized Industrial & Commercial Ultrapure Water Treatment Machine RO-EDI Water Treatment System
Product Parameters

Parameters HYHJ-RO/EDI-0.25T HYHJ-RO/EDI-0.5T HYHJ-RO/EDI-1T
Machine Size(L*W*H) 2100mm/700mm/1700mm 2300mm/700mm/1920mm 4200mm/700mm/1920mm
Control mode Fully automatic operation Fully automatic operation Fully automatic operation
Device power AC/380V/50HZ AC/380V/50HZ AC/380V/50HZ
Raw water pump Q=2m³/H H=30m Q=2m³/H H=30m Q=4m³/H H=30m
First-stage high-pressure pump Q=1m³/H H=90m Q=1m³/H H=90m Q=4m³/H H=100m
Two-stage high-pressure pump Q=1m³/H H=80m Q=1m³/H H=80m Q=1.5m³/H H=80m
Reverse osmosis membrane vessels 1 core 4 inches 1 core 4 inches 2 core 4 inches
EDI booster pump Q=1m³/H H=30m Q=1m³/H H=30m Q=2m³/H H=30m
EDI module 250L/H 250L/H 1000L/H
Quartz sand filter φ250×1400mm φ300×1650mm φ400×1650mm
Activated carbon filter φ250×1400mm φ300×1650mm φ400×1650mm
Precision filters 5 core 10 inches 5 core 20 inches 5 core 30 inches
Precision filter element 10''5μm 20''5μm 30''5μm
Scale inhibitor/PH dosing pump Q=1L/H H=50m Q=1L/H H=50m Q=1L/H H=50m
Scale inhibitor/PH dosing box 40L 40L 40L
Primary reverse osmosis membrane 4040 4040 4040
Secondary reverse osmosis membrane model 4040 4040 4040
