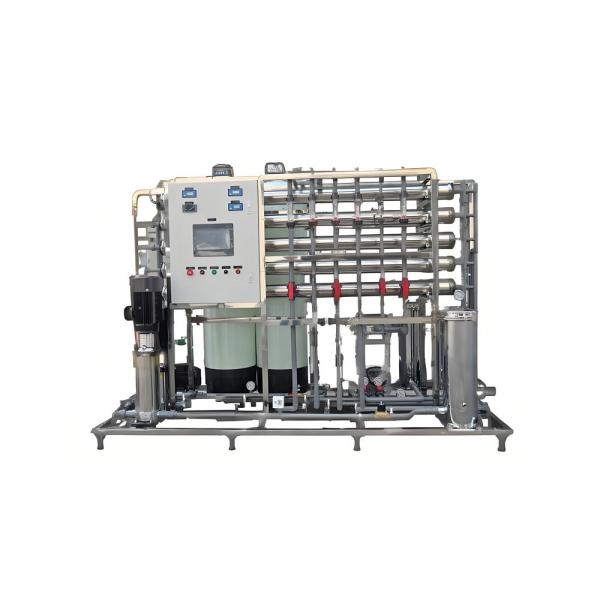

Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components
Specifications
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
Pump, Engine, motor, PLC
Place of Origin :
Hebei, China
Brand Name :
HUAYU
warranty :
1 Year
productivity :
5000L/Hour
weight (kg) :
1000
Processing Type :
Reverse Osmosis
Dimension(L*W*H) :
160 70 70
Power :
70 KW
Voltage :
220V, 380V, 110V
Application :
Wastewater treatment
Product name :
uf membrane system
Core Technology :
UF process
Certification :
ISO9001:2015
Lead Time :
About 21 days
Description
Product Description

Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components

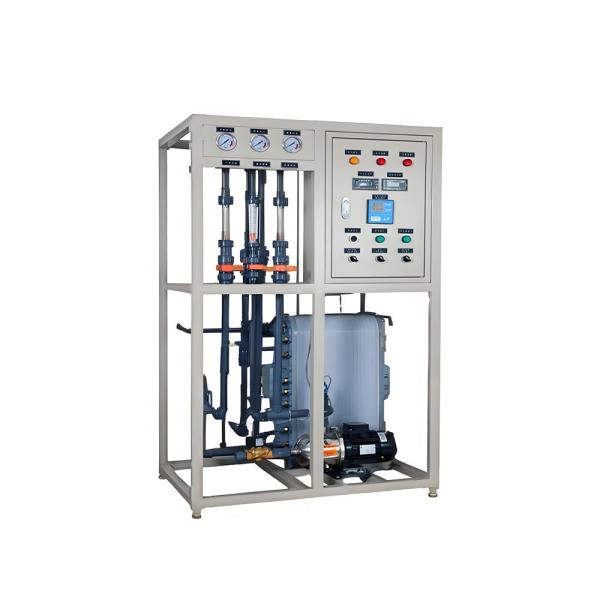

Ultrapure Water Equipment
The EDI equipment offered by Hebei Huayu Environmental Engineering Co., Ltd. is ingeniously positioned after the reverse osmosis system. It serves as a sophisticated replacement for the conventional mixed bed ion exchange technology (MB-DI). This innovative approach is designed to consistently deliver ultrapure water of the highest stability. When compared to the traditional mixed ion exchange technology, EDI technology stands out with remarkable advantages that cater to modern needs:

  1. Consistent and Superior Water Quality.
  2. Effortless Fully Automated Control
  3. No Downtime Due to Regeneration Processes
  4. Eliminates the Requirement for Chemical Regeneration
  5. Cost-Efficient Operation
  6. Compact and Space-Saving Design

Detailed Photos

Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components

Working Principle

Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components

Our Advantages

Aquapure Industrial Water Purification System with Ultra-Filtration and EDI Process Resin and Plastic Media Core Components

Product Parameters

Parameters HYHJ-RO/EDI-5T
Machine Size(L*W*H) 6500mm/850mm/2200mm
Control mode Fully automatic operation
Device power AC/380V/50HZ
Raw water pump Q=12m³/H H=30m
First-stage high-pressure pump Q=12m³/H H=100m
Two-stage high-pressure pump Q=8m³/H H=80m
Reverse osmosis membrane vessels 3 core 8 inches
EDI booster pump Q=6m³/H H=30m
EDI module 5000L/H
Quartz sand filter φ1000×2200mm
Activated carbon filter φ1000×2200mm
Precision filters 7 core 40 inches
Precision filter element 40''5μm
Scale inhibitor/PH dosing pump Q=1L/H H=50m
Scale inhibitor/PH dosing box 40L
Primary reverse osmosis membrane 8040
Secondary reverse osmosis membrane model 8040
