YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration
YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration
YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration
YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration
YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration
YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration
Specifications
Model Number :
YU-EG40
Discharge differential pressure :
10-70KPA
Applications :
Biogas and waste gas
MOQ :
1 set
Packaging Details :
Export standard wooden case
Connection type :
Belt driven
Cooling Water :
3L/min
Brand Name :
BK
Capacity :
0.42-1.65m³/min
Supply Ability :
20 SETS per month
Shaft Power :
0.82-2.42KW
Price :
Negotiable
Belt and pulley :
Biogas, waste gas, explosive medium conveying
Delivery Time :
15 to 30 working days, depends on order amount and specification
Speed :
1500-2150rpm
Material :
Anti-orrosion
Certification :
ISO9001/ISO14001
Bore size :
DN40(1.5”)
Place of Origin :
China
Cooling type :
Water
Description

YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration

About YU-EG

Since established, B-Tohin has imported advanced technology and equipment and developed new products constantly. YU-EG type blower is a new kind product which has the casing and rotors coating with special anti-corrosive materials. It is applicable to the delivery of special gas, especial for conveying bio gas.

Main Characteristics

  1. The blower can be used for conveying acid,alkali,corrosion and other special gas.
  2. Water cooling adopted for longer service life of the bearing.
  3. The inner part of the blower and the surface of the impellers are sprayed with special materials of good lubrication and anti-adhesion.

Main Advantages

  1. Compacting structure,inlet and outlet same construction,multiform fitting ways.
  2. Integral structure of impeller and shaft ,which can avoid the defection of separate type.
  3. Water cooling structure which can improve the work condition of bearing and prolong the using life.
  4. Spraying special material(PTFE) with well corrosion resistance and stick on the impeller and the parts contacting the fluid.
  5. Blower can convey the special gas of acid ,alkali, corrosive,etc.

Specifications

Model

YU-EG40

Air capacity

0.42-1.65m3/min

Discharge differential pressure

10-70KPA

Rotary speed

1500-2150rpm

Cooling water volume

3 l/min

Motor type

1.5-4KW

380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

Installation type

Standard: vertical type

N.W. of blower without motor

75kg

Parameter sheet

Type

Port Dia

(MM)

Speed

(rmp)

Pressure

(kgf/cm²)

 Inlet Airflow (m³/min)

Shaft Power

(kw)

Cooling Water

(L/min)
YU-EG40 40(1.5") 1500-2150 0.1-0.7 0.42-1.65 0.82-2.42 3

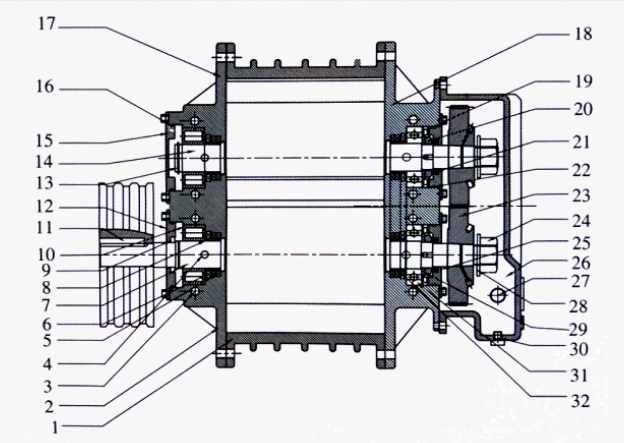

Materials list

YU-EG Heavy Duty Roots Blower for Pneumatic Conveying and Industrial Aeration

No. Name Quantity Material No. Name Quantity Material
1 Cylinder 1 HT200 17 Locating pin 4
2 Driven end-plate 1 HT200 18 Gear end-plate 1 HT200
3 Cooling system 19 Grease thrower 2 45#
4 Grease nipple 4 Copper 20 Round nut 2 45#
5 Air seal 8 PTFE 21 Oil seal 2 FPM
6 Oil seal 4 FPM 22 O-ring 2 FPM
7 Driven impeller 1 QT500 23 Internal bevel gear 2 20CrMnTi
8 O-ring 8 FPM 24 Clamp nut 2 45#
9 Oil seal 1 FPM 25 Right collar 2 45#
10 Bearing 2 GCr15 26 Oil cover 1 HT200
11 Key 1 45# 27 Oil level guage 1 Resin
12 Driven impeller cover 1 45# 28 Butterfly spring 2 65Mn
13 Jump Ring 2 65Mn 29 Stop washer 2 Q235
14 Driven impeller 1 QT500 30 Magnetism plug 1
15 Driven impeller cover 1 45# 31 Bearing 2 GCr15
16 O-ring 2 FPM 32 Shaft sleeve 4 45#

Assembling drawing of blower package

Outline Dimension Sheet Unit:mm Type Motor power(kw) A B C D E F G H I J K L M N P R Foundation Bolts Weight (KG) YU-EG40 1.5～4 760 260 100 560 264 175 183 1080 18 164 100 300 95 700 18 62 4-M12×600 75

Standard supply of scope

1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. inlet silencer(with filter): stainless steel

5. discharge silencer: stainless steel

6. public base (with belt cover)

7. stainless steel flexible joint and shock pad

8. pulley

9. pressure gauge

10. belt

11. bolts and nuts and other connection parts

12. motor
