CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
Specifications
Brand Name :
BK
Model Number :
BKW8016S
Certification :
ISO9001 / ISO14001/CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 8080- USD 11300
Payment Terms :
L/C, T/T
Supply Ability :
200 SETS PER MONTH
Delivery Time :
30 WORK DAYS
Packaging Details :
EXPORT WOODEN CASE
Name :
Three lobe Roots Blower
Direction of air flow :
Axial flow
Color :
Customized
Air Capacity :
19.59m3/Min-42.18m3/Min
Cooling Type :
Water
Blower RPM :
850-1500 rpm
Voltage :
380V/400V/415V/440V/Customized
Frequency :
50HZ/60HZ
Application :
Waste water treatment
Description

About BKW

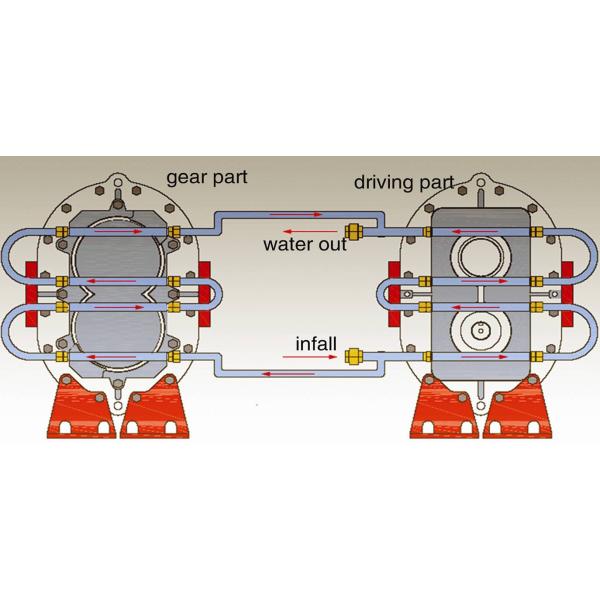

BKW seires Roots Blower inherits most components from BK series, it adopts water cooling in bearing cover, which can reduce the temperature of bearing when working and prolong the longevity, also it has a larger pressure capability.

Specifications:

Model BKW8016S
Air capacity 19.59m3/Min-42.18m3/Min
Discharge differential pressure 60-100KPA
Rotary speed 850rpm-1500rpm
Motor type 30KW-90KW
380/400/415/440V, 3PHASES, 50/60HZ
Installation type Standard: horizontal type.
Vertical type available for your option
N.W. of blower without motor 970 kg
Packing size Approx. 2.13*1.48*2.35m (length*width*height)
Features 1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller and shaft
4. Adopt imported oil seals made from fluoric rubber with high wear resistance and high-temperature resistance.
5. Low noise, low vibration and energy consumption.


Parameters

Type Port Dia Speed Inlet airflow(m3/min)and shaft power(KW)at different conditions Cooling Water
60kpa 70kpa 80kpa 90kpa 100kpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW L/min
BKW8016S 150(6'') 850

20.27

 30.33 19.59 33.68 10
1000 25.32 35.68 24.65 39.63 24.02 43.57 23.44 47.52 22.88 51.47
1150 30.38 41.03 29.71 45.57 29.08 50.11 28.49 54.65 27.94 59.19
1250 33.75 44.60 33.08 49.53 32.45 54.47 31.87 59.40 31.31 64.33
1400 38.81 49.95 38.14 55.48 37.51 61.00 36.92 66.53 36.37 72.05
1500 42.18 53.52 41.51 59.44 40.88 65.36 40.29 71.28 39.74 77.20

Description of blower parts:

Casing Made of Casting iron HT200
ENDLESS structure adopted for improving efficiency, one-time machined by CNC center with high precision
Rotor (Shaft and impeller) Made of Casting iron QT500
The impeller and shaft is cast as an integral part.
Adopting NC planer for machining to achieve high precision
Gear end bearing Made of GCr15
NSK brand, double-row angular contact ball bearing, capable of supporting axial load
Drive end bearing Made of GCr15
NSK brand, cylindrical roller bearing
Gear Made of 20CrMnTi
Bevel structure for more smoothly running
Oil seal Made of fluoro rubber
bears high temperature and has a longer life.


Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.

Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

Structure

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

Application

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

Exihibition

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

​​​​​​​Work Site

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower

Main products

(1) Three lobes roots blower
(2) ATB Turbo Blower
(3) Bio-gas Roots Blower
(4) Three-lobe Vacuum Pump
(5) HC Rotary Blower
(6) Air-foil-bearing Centrifugal Blower
(7) Single stage Centrifugal Blower
(8) Multistage Centrifugal Blower
(9) Side channel Blower
(10) Submersible Sewage Pump

CE BKW8016S 30-90KW Three Lobe Roots Type Air Blower
