DN150 Roots Air Blower, oxygen generator for aqua farms blower
DN150 Roots Air Blower, oxygen generator for aqua farms blower
DN150 Roots Air Blower, oxygen generator for aqua farms blower
DN150 Roots Air Blower, oxygen generator for aqua farms blower
DN150 Roots Air Blower, oxygen generator for aqua farms blower
DN150 Roots Air Blower, oxygen generator for aqua farms blower
Specifications
Brand Name :
BK
Model Number :
BK8016S
Certification :
ISO9001/ISO14001/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
50 SETS per month
Delivery Time :
5 to 20 working days, depends on order amount and specification
Packaging Details :
Export standard wooden case
Air capacity :
1521-47.14m3/min
Discharge differential pressure :
10-80KPA
Motor power :
30-90KW
Discharge bore :
DN150mm (6”)
Cooling type :
air
Connection type :
Belt and pulley
Speed :
700-1500rpm
Application :
Water treatment,Power and gain transportation,Special gas Transportation
Description

Low noise army green three Lobe Roots Blower , ozonizer , oxygen generator for aquaculture air blower

DN150 Roots Air Blower, ozonizer, oxygen generator for aqua farms blower


About BK-3

BK-3 roots blower is 3-lobe, positive and displacement blower. It is featured of simply configuration, smooth operation, stable performance, easy installing and maintenance.

Specifications

Model

BK8016S

Air capacity

15.21-47.14m3/min

Discharge differential pressure

10-80KPA

Rotary speed

700-1500rpm

Motor type

30-90KW
380/400/415/440V/220V, 3PHASES, 50/60HZ, frequencytype
Insulation class of motor F, temperature rise B
Protection class of motor IP55
Efficiency grade of motor IE3

Installation type

Vertical type

N.W. of blower without motor

730kg


Features

  • Two Rotors with lobe curve optimized ensures no leakage inside blower, improves blower’s efficiency.
  • Radius-center distance ratio is narrowed and shaft’s diameter is enlarged. There's no deformation and collision will occur under higher load pressure as the blower’s strength is improved.
  • Special hollow design of end-cover is used for making bearing cavity separated from gas chamber relatively, by which reduces the impact of inside high temperature gas on bearing cavity and lowers the bearing temperature.
  • Deep groove ball bearing of high precision and low friction factor is selected for lowering operation noise. In addition, because of larger size bearing matched for enlarged shaft diameter, the bearing’s load capacity is enhanced and its service life is extended.
  • A structure of 90 degree upper inlet and side outlet is adopted for convenient installation and maintenance. Different silencers are available for customers’ needs of saving floor space.

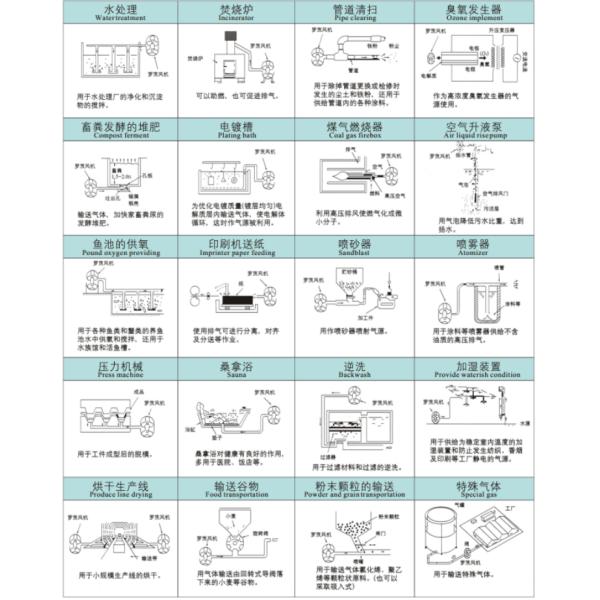

Applications

DN150 Roots Air Blower, oxygen generator for aqua farms blower

Parameter

Model Port Dia. (mm) Speed Inlet capacity (m3/min)and shaft power (KW)
0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2 0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O 5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW
BK8016S 150(6") 700 20.17 11.16 18.75 13.93 17.67 16.69 16.75 19.45 15.94 22.21 15.21 24.98
850 25.23 13.55 23.81 16.91 22.72 20.26 21.81 23.62 21.00 26.97 20.27 30.33 19.59 33.68
1000 30.29 15.95 28.87 19.89 27.78 23.84 26.86 27.79 26.05 31.73 25.32 35.68 24.65 39.63 24.02 43.57
1150 35.34 18.34 33.93 22.88 32.84 27.42 31.92 31.95 31.11 36.49 30.38 41.03 29.71 45.57 29.08 50.11
1250 38.72 19.93 37.30 24.87 36.21 29.80 35.29 34.73 34.48 39.67 33.75 44.60 33.08 49.53 32.45 54.47
1400 43.77 22.33 42.35 27.85 41.26 33.38 40.35 38.90 39.54 44.43 38.81 49.95 38.14 55.48 37.51 61.00
1500 47.14 23.92 45.72 29.84 44.64 35.76 43.72 41.68 42.91 47.60 42.18 53.52 41.51 59.44 40.88 65.36

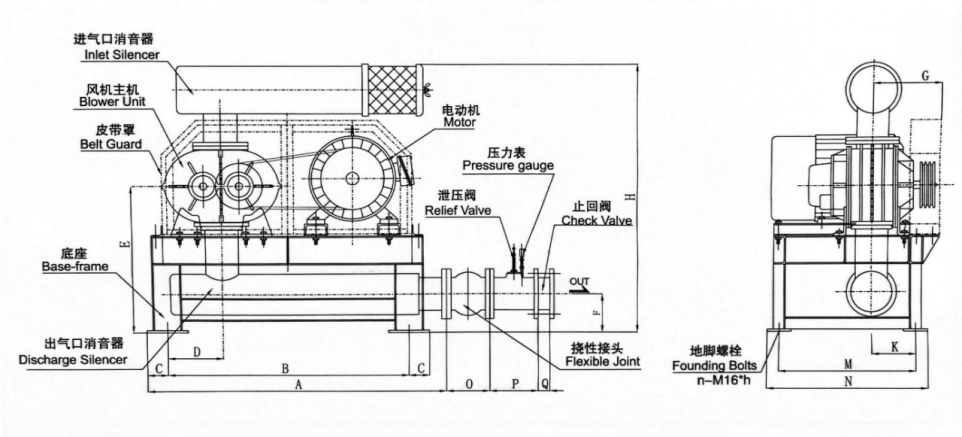

Assembling drawing of blower package


DN150 Roots Air Blower, oxygen generator for aqua farms blower

BK Outline Dimension Sheet: Unit:mm

Type
Port Dia
Motor power		 A B C D E F G H K M N 0 P Q 4-M16×h
Weight
(kg)
BK8016S 150(6") 30～90 1658 1390 105 283 962 332 413 1862 217 670 780 180 280 24 4-M16×400 730
Dimension for BK12034 and BK12042 will be supplied specially.
Standard accessory include:Inlet and outlet silencer,pressure gauge,base-frame,blower's pulley,motor's pulley,belt,belt guard,relief valve,check valve.
The weight above are for standard accessories only,motor excluded.

Customers and Us

DN150 Roots Air Blower, oxygen generator for aqua farms blower

FAQ

Q1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.


Q2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.


Q3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.


Q4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.


Q6. What are your terms of payment?
TT 30% as the advance payment and TT 70% after inspection before shipping.
