Specifications
Brand Name :
BK
Model Number :
BKW9020S
Certification :
ISO9001 / ISO14001/CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
USD 10600- USD16600
Payment Terms :
L/C, T/T
Supply Ability :
30 SETS /MONTH
Delivery Time :
50 WORK DAYS
Packaging Details :
EXPORT WOODEN CASE
Name :
Three lobe Roots Blower
Air flow :
40.72m3/Min-73.32m3/Min
Package :
Wooden case
Cooling Type :
Water
Blower RPM :
1000-1500 rpm
Voltage :
380V/400V/415V/440V/Customed
Frequency :
50HZ/60HZ
Application :
Waste water treatment
Port Dia. :
200mm (8")
Cooling Water :
15 L/min
Description

About BKW
BKW seires Roots Blower inherits most components from BK series, it adopts water cooling in bearing cover, which can reduce the temperature of bearing when working and prolong the longevity, also it has a larger pressure capability.

Specifications:

Model BKW9020S
Air capacity 40.72m3/Min-73.32m3/Min
Discharge differential pressure 60-100KPA
Rotary speed 1000rpm-1500rpm
Motor type 30KW-132KW
380/400/415/440V, 3PHASES, 50/60HZ
Installation type Standard: horizontal type.
Vertical type available for your option
N.W. of blower without motor 1310 kg
Packing size Approx. 2.62*1.78*2.60m (length*width*height)
Features 1. Helical type timing gears for smooth operation
2. Compact, flexibility in installation gives users more choices.
3. Integral structure of impeller and shaft for more stable and smooth operation
4. Adopt imported oil seals made from fluoric rubber with great wear resistance and high-temperature resistance.
5. Low noise, low vibration and energy consumption.


Parameters

Type Port Dia Speed Inlet airflow(m3/min)and shaft power(KW)at different conditions Cooling Water
60kpa 70kpa 80kpa 90kpa 100kpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW m3/min KW L/min
BKW9020S 200(8'') 1000 44.70 59.00 43.60 65.83 42.58 72.66 41.62 79.49 40.72 86.33 15
1050 47.61 61.95 46.52 69.12 45.50 76.29 44.54 83.47 43.64 90.64
1150 53.50 66.49 52.57 74.19 51.71 81.89 50.90 89.59 50.13 97.29
1250 59.17 72.27 58.24 80.64 57.37 89.01 56.56 97.38 55.79 105.7
1400 67.66 80.94 66.73 90.32 65.86 99.69 65.05 109.10 64.28 118.40
1500 73.32 86.72 72.39 96.77 71.52 106.8 70.71 116.90 69.94 126.90


Description of blower parts:

Casing Made of Casting iron HT200
ENDLESS structure adopted for improving efficiency, one-time machined by CNC center with high precision
Rotor (Shaft and impeller) Made of Casting iron QT500
The impeller and shaft is cast as an integral part.
Adopting NC planer for machining to achieve high precision
Gear end bearing Made of GCr15
NSK brand, double-row angular contact ball bearing, capable of supporting axial load
Drive end bearing Made of GCr15
NSK brand, cylindrical roller bearing
Gear Made of 20CrMnTi
Bevel structure for more smoothly running
Oil seal Made of fluoro rubber
bears high temperature and has a longer life.


Working Principle

Roots blower is a cubage blower, and it discharges a fixed amount of air in proportion to its rotation speed. Every rotation, there is two lobes to finish three times absorbing and dischargeing air. Compared with two lobes blower, it is of less air pulses, smaller load change, higher strength, lower noise and vibration.


Two paraller shafts have three lobes each, all the lobes keep small clearance with each other and housing inside. Every lobes rotatiomn, a certain air will be absorbed at inlet and transfeered form the housing inside surface to blower's diacharge port.

Two shafts will be turned by the timing gears, no any touching between lobes, so it can be turned at high speed without any lubrication inside. It has the following chaaracteristics: simply configuration; running smoothly;good performance stabilization. It has been widely applied in various industries.

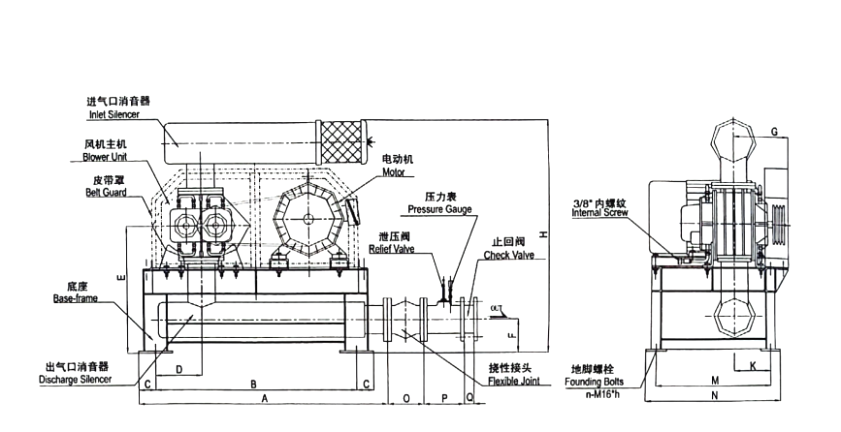

Product Outline Dimension

Bkw9020 Three Lobe Roots Blower , Aeration Blowers Wastewater For Long Time


Type
Port Dia
Motor power		 A B C D E F G H K M N 0 P Q 4-M16×h
Weight
(kg)
BKW9020S 200(8") 30～132 1750 1490 105 345 1010 284 452 1890 334 780 875 190 350 24 4-M16×400 800
Standard accssory include:Inlet and outlet silencer,pressure gauge,base-frame,blower's pulley,motor'spulley,belt,belt guard,relief valve,check valve.
The weight above are for standard accessories only,motor excluded.
Dimension for blower,which is equipped with high voltage motor,will be supplied specially.
