-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump
-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump
-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump
-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump
-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump
-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump
Specifications
Brand Name :
BK
Model Number :
BV5003
Certification :
ISO9001/ISO14001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 SETS per month
Delivery Time :
5 to 20 working days, depends on order amount and specification
Packaging Details :
Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Type :
vacuum sauction, roots type
Air capacity :
1.92-7.38m3/min
Discharge differential pressure :
-10— -50KPA
Motor power :
5.5-7.5/11-15KW
Discharge bore :
DN65(2.5")
Cooling type :
Air
Driven type :
motor driven, connected by belt and pulley
Description

Vacuum 10KPA to vacuum 50KPA Roots negative pressure blower vacuum Pump DN65 lobe rotary type blower

About BV5003 Vacuum Blower

BK5003 vacuum blower is a kind of displacement Roots type air pump. It can reach -50KPA vacuum pump. It is widely used for vacuum air

conveying and if featured of stable performance and excellent volumetric efficiency.

-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump

Main Characteristics

Air-cooled casing is adopted to introduce external cooling air;stable operation,lower noise the normal negative pressure blower;compact structure,reasonable design, flexible and convenient installation.


Specifications

Model

BV5003

Air capacity

1.92-7.38m3/min

Discharge differential pressure

-10 ~ -50KPA

Rotary speed

850-2000rpm

Motor type

5.5-7.5/11-15KW

380/400/415/440V, 3PHASES, 50/60HZ

Installation type

Standard: horizontal type, vertical type can be made to order

N.W. of blower without motor

171kg

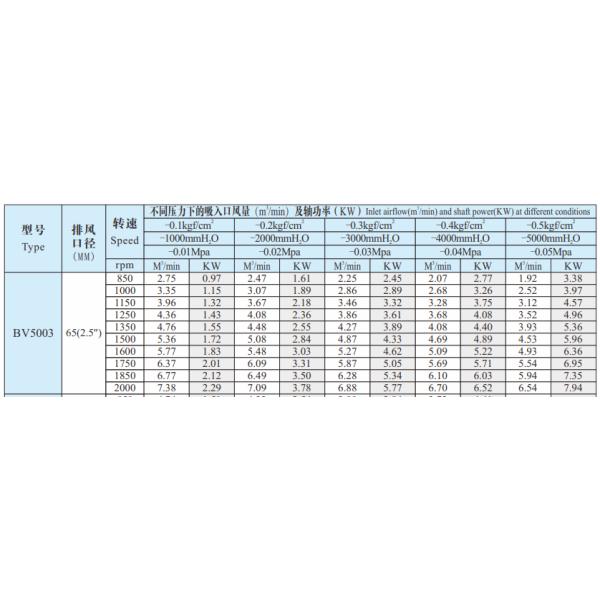

Parameter sheet

-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump

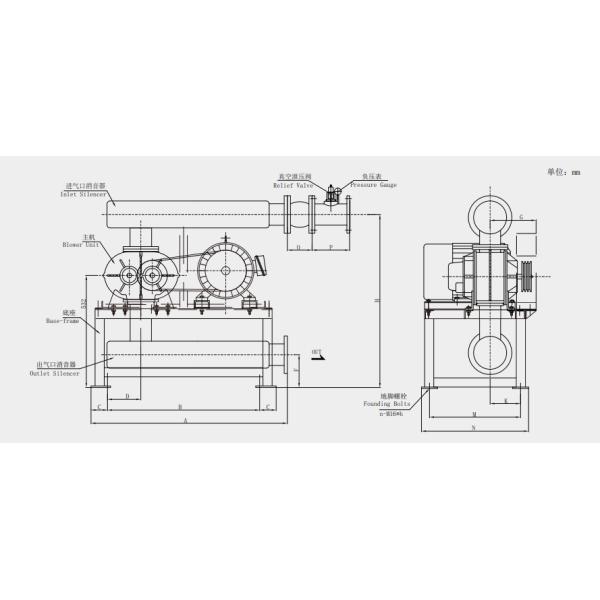

Assembling drawing of blower package

-50KPA 4.53m3/Min 7.5KW Air Cooling Negative Pressure Roots Blower Vacuum Pump

Dimension size

BV Outline Dimension Sheet Unit:mm

Type
Port Dia
Motor power		 A B C D E F G H K M N 0 P Q n-M16×h
Weight
(kg)
BV5003 65(2.5") 5.5～7.5 1190 940 90 200 532 172 200 1072 133 346 410 115 190 18 4-M16×300 171
BV5003 65(2.5") 11～15 1190 940 90 200 532 172 200 1072 133 474 538 115 190 18 4-M16×300 171


Standard supply of scope

1. blower main body

2. vacuum safety valve

3. inlet silencer

4. outlet silencer

5. public base (with belt cover)

6. rubber flexible joint and shock pad

7. blower pulley

8. pressure gauge

9. belt

10. bolts and nuts and other connection parts

11. motor
