-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower
Specifications
Brand Name :
BK
Model Number :
BV6015
Certification :
ISO9001/ISO14001/CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 SETS per month
Delivery Time :
5 to 20 working days, depends on order amount and specification
Packaging Details :
Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Type :
vacuum sauction, roots type
Air capacity :
14.68-39.13m3/min
Discharge differential pressure :
-10KPA ~-40KPA
Motor power :
11-22/30/37-45KW
Discharge bore :
DN150(6”)
Cooling type :
Air
Driven type :
motor driven, connected by belt and pulley
Weight :
380Kg
Speed :
850-1800 RPM
Description

-10KPA - 40KPA Roots Blower Vacuum Pump DN150, lobe rotary


About BV6015 Vacuum Blower

BV6015 vacuum blower is a kind of displacement Roots type air pump. It can reach -40KPA vacuum pump. It is widely used for vacuum air conveying and if featured of stable performance and excellent volumetric efficiency.


Specifications

Model

BV6015

Air capacity

14.68-39.13m3/min

Discharge differential pressure

-10 ~ -40KPA

Rotary speed

850-1800rpm

Motor type

11-22/30/37-45KW

380/400/415/440V, 3PHASES, 50/60HZ

Installation type

Standard: horizontal type.

Vertical type available for your option

N.W. of blower without motor

380kg

Packing size Approx.

1.8*1.2*1.95m (length*width*height)


Parameter sheet

Art No.

Port
Dia
(MM)

Speed

-0.1kgf/cm2

-0.2kgf/cm2

-0.3kgf/cm2

- 0.4kgf/cm2

-1000mmH2O

-2000mmH2O

-3000mmH2O

-4000mmH2O

-0.01Mpa

-0.02Mpa

-0.03Mpa

-0.04Mpa

rpm

m3/min

KW

m3/min

KW

m3/min

KW

m3/min

KW

BV6015

150(6")

850

17.17

4.71

16.13

8.24

15.35

11.22

14.68

14.22

1000

20.64

5.54

19.60

9.70

18.81

13.20

18.14

16.73

1150

24.10

6.37

23.06

11.15

22.28

15.19

21.61

19.24

1250

26.42

6.92

25.38

12.12

24.59

16.51

23.92

20.91

1400

29.88

7.75

28.84

13.57

28.06

18.49

27.39

23.42

1500

32.19

8.31

31.15

14.54

30.37

19.81

29.70

25.10

1650

35.66

9.14

34.62

16.00

33.83

21.79

33.16

27.61

1800

39.13

9.97

38.09

17.45

37.30

23.77

36.63

30.12

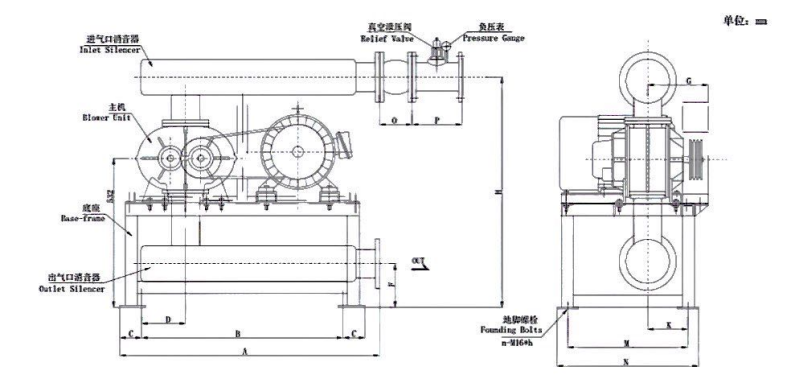

Assembling drawing of blower package

-10KPA - 40KPA Roots Blower Vacuum Pump DN150 lobe rotary type blower

BV Outline Dimension Sheet Unit:mm

Type
Port Dia
Motor power		 A B C D E F G H K M N 0 P Q n-M16×h
Weight
(kg)
BV6015 150(6") 11～22 1340 1064 113 222 748 232 364 1460 238 476 573 180 280 24 4-M16×400 380
30 539 636
37～45 563 660
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.


Standard supply of scope

1. blower main body

2. vacuum safety valve

3. inlet silencer

4. outlet silencer

5. public base (with belt cover)

6. rubber flexible joint and shock pad

7. blower pulley

8. pressure gauge

9. belt

10. bolts and nuts and other connection parts

11. motor
