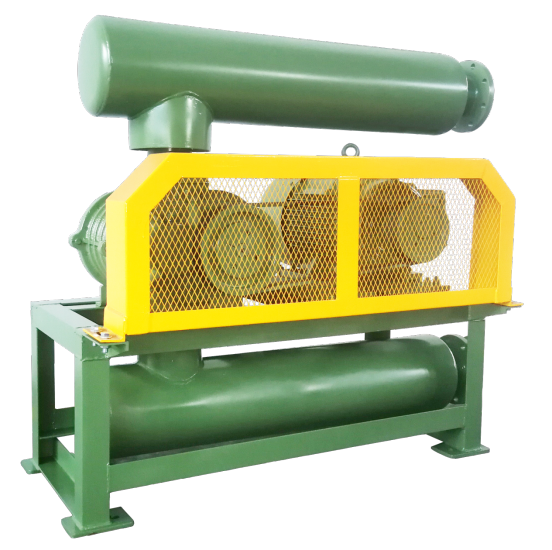

Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA
Specifications
Brand Name :
BK
Model Number :
BV10027
Certification :
ISO9001/ISO14001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
80 SETS per month
Delivery Time :
5 to 20 working days, depends on order amount and specification
Packaging Details :
Export standard wooden caseAbout BKW BKW series roots blower inherits the design of BK series. It adopts water cooling in bearing cover, which can lower the temperature of bearing so as to prolong the bearing’s service life and enable higher pressure appli
Type :
vacuum sauction, roots type
Air capacity :
60.97-126.86m3/min
Discharge differential pressure :
-10KPA ~-40KPA
Motor power :
22-200KW
Discharge bore :
DN300(12”)
Cooling type :
Air
Driven type :
motor driven, connected by belt and pulley
Weight :
1700 Kg
Speed :
800-1400 rpm
Shaft Power :
23.03-96.64 KW
Description

Pneumatic Roots Blower Vacuum Pump, Roots air pump, vacuum -40KPA


About BK vacuum pump

BV10027 is a vacuum use blower developed by B-Tohin based on its advanced technology and years' experience in producing pneumatic equipment. Its maximum vacuum is -40KPA, and maximum air capacity is 7200m3/h.Main parts manufactured by CNC of high precision and inspected by CMM machine ensures its high quality and reliable performance.

Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA

Specifications

Model

BV10027
Inlet dimension DN300
Outlet dimension DN300

Air capacity

60.97-126.86m3/min

Discharge differential pressure

-10 ~ -40KPA

Rotary speed

800-1400rpm

Motor type

22-200KW
380/400/415/440V, 3PHASES, 50/60HZ
Motor efficiency grade IE3
Moror insulation class F, temperature rising B
Motor protection class IP55

Installation type

Standard: horizontal type.
Vertical type available for your option

N.W. of blower without motor

1700kg

Packing size Approx.

2.67*1.87*2.61m (length*width*height)



Parameter sheet

Model Port Dia
(MM)		 Speed Inlet capacity (m3/min)and shaft power (KW)
-0.1kgf/cm2 -0.2kgf/cm2 -0.3kgf/cm2 -0.4kgf/cm2
-1000mmH2O -2000mmH2O -3000mmH2O -4000mmH2O
-0.01Mpa -0.02Mpa -0.03Mpa -0.04Mpa
rpm m3/min KW m3/min KW m3/min KW m3/min KW
BV10027 300(12") 800 69.07 23.03 65.69 36.10 63.09 48.22 60.97 55.22
900 78.70 25.91 75.33 40.61 72.73 54.24 70.61 62.13
1000 88.33 28.79 84.96 45.12 82.36 60.27 80.24 69.03
1100 97.96 31.67 94.59 49.63 91.99 66.30 89.87 75.93
1250 112.41 35.99 109.04 56.40 106.44 75.34 104.32 86.29
1400 126.86 40.30 123.49 63.17 120.89 84.38 118.77 96.64



Assembling drawing of blower package

Pneumatic Roots Blower Rotary Lobe Vacuum Pump , blower air pump vacuum -40KPA

BV Outline Dimension Sheet Unit:mm

Type
Port Dia
Motor power		 A B C D E F G H K M N 0 P Q n-M16×h
Weight
(kg)
BV10027 300(12") 22～200 2105 1840 110 400 1136 325 690 2196 472 894 1018 245 380 114 4-M16×400 1700
Standard accessories include:intake, outlet muffler, negative pressure gauge,base,belt cover,vacuum relief valve,triangular belt.
The weight above are for standard accessories only,motor excluded.


Standard supply of scope

1. blower main body
2. vacuum safety valve
3. inlet silencer
4. outlet silencer
5. public base (with belt cover)
6. rubber flexible joint and shock pad
7. blower pulley
8. pressure gauge
9. belt
10. bolts and nuts and other connection parts
11. motor

FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.

Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.

Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

Q4: What is your warranty?
Our warranty is 12 months after received the machine.

Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.

Q7.Does your machine with CE certificate?
Yes.We have CE certificate,we will offer it if you need.

Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
