Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Glazed Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall
Transmission Method :
Electric
Feed Width :
416mm
Control System :
PLC
Hydraulic Pump Power :
4kw
Transport Package :
Plastic Film & Steel Wire Fixed
Package Size :
510.00cm * 90.00cm * 200.00cm
Package Gross Weight :
7000.000kg
Description
Intelligent Customizable Cold Rolled Profile Wall Cladding Panel Production Line
This Profile Wall Cladding Panel Roll Forming Production Line is a versatile and high-precision professional equipment designed to meet the growing market demand for metal wall cladding in industrial, commercial, and architectural applications. Widely favored by metal product manufacturers, construction enterprises, and building material suppliers, this production line helps optimize manufacturing processes, control overall costs, and deliver standardized, high-quality wall cladding products.
Whether for small workshop processing or large-scale mass production, the system adapts flexibly to boost corporate production efficiency and enhance core market competitiveness.
The complete production line operates fully automatically, integrating decoiling, material guiding, roll forming, servo cutting, and intelligent control functions into a seamless workflow. This automation significantly reduces manual intervention, minimizes operational errors, and supports continuous high-speed production.
Key Features & Benefits
  • Modular Design: Simple adjustment and strong scalability allow quick parameter changes to meet different project specifications
  • Robust Construction: Heavy-duty steel frame with reinforced welding ensures stable long-term operation and mechanical pressure resistance
  • Precision Engineering: Hardened high-precision forming rollers produce wall cladding profiles with accurate dimensions and smooth surfaces
  • Advanced Cutting: Servo cutting system with high-power motors and precision guide rails delivers neat, burr-free cutting with minimal material waste
  • Smart Control: Industrial-grade PLC system with color touch screen enables real-time monitoring and precise adjustment of key parameters
  • Customization Ready: Supports tailored production of panel profiles, material thickness, and operating speeds
Technical Specifications

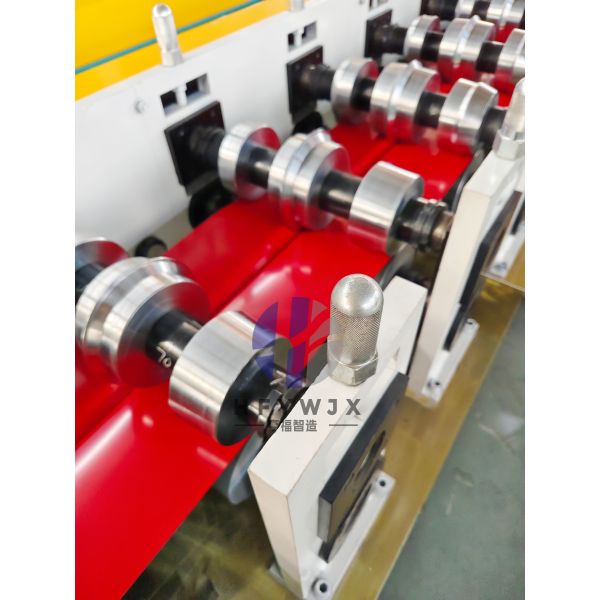

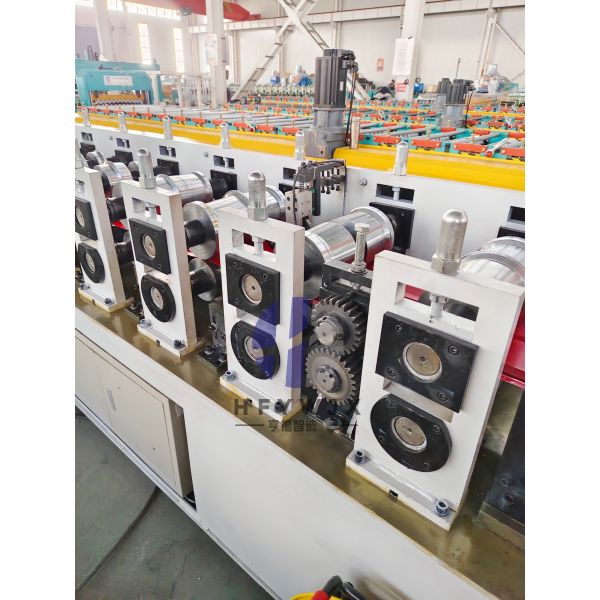

Roll Forming Section
Frame Structure Vertical arched frame structure, 35-45 mm thick; Annealed profile steel with milling treatment; Welded with 350# H-beam steel; Anti-rust treatment after welding
Number of Forming Rows 22 rows
Wall Panel Thickness 20mm
Material Feeder Two-hand crank feeder with pull cutter
Transmission Method Gear drive
Rolling Speed 25 meters/minute
Cutting Device Type Hydraulic shears
Hydraulic Pump Power 4 kW
Tool Material 45# steel with hard chrome plating surface treatment

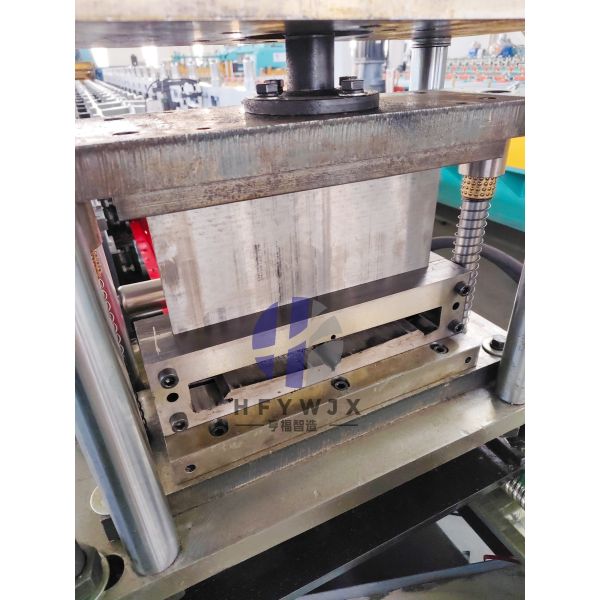

Punching Section
Frame Independent frame
Feeding Device Servo feeder
Feeding Motor Power 1.5 kW (servo motor)
Material Loading Rack
Uncoiler 3 tons
Loosening/Clamping Mechanism Shaft segment loosening: Manual
Main Drive Power 2.2 kW
Product Gallery
Hydraulic Shears Cutting Wall Panel Roll Forming Machine Intelligent Wall Panel Machine Hydraulic Shears Cutting Wall Panel Roll Forming Machine Intelligent Wall Panel Machine Hydraulic Shears Cutting Wall Panel Roll Forming Machine Intelligent Wall Panel Machine Hydraulic Shears Cutting Wall Panel Roll Forming Machine Intelligent Wall Panel Machine Hydraulic Shears Cutting Wall Panel Roll Forming Machine Intelligent Wall Panel Machine
Frequently Asked Questions
What is the difference between your machines and cheaper alternatives?
Our machines feature thicker frames that resist deformation even after prolonged use. The high-precision rollers ensure standard and consistent panel profiles. The stable cutting system guarantees precise length accuracy. Additionally, our equipment offers low failure rates, minimal maintenance costs, and significantly longer service life.
Do you have customers for your equipment in our country?
Yes, we have established customers throughout the Middle East, North Africa, and various European countries.
What service can you provide before order?
We provide comprehensive pre-sales support, including detailed answers to all technical questions, pricing information, and payment terms. If you wish to visit our factory for inspection, we can provide an invitation letter and extend our warmest welcome.
Is the length of the discharge rack adjustable?
Yes, our standard telescopic discharge rack can be adjusted to accommodate sheet materials of varying lengths.
How should the machine be stored when not in use for an extended period?
Disconnect the power, thoroughly clean the machine, apply anti-rust oil, cover with a dust cover, and store in a dry environment.
