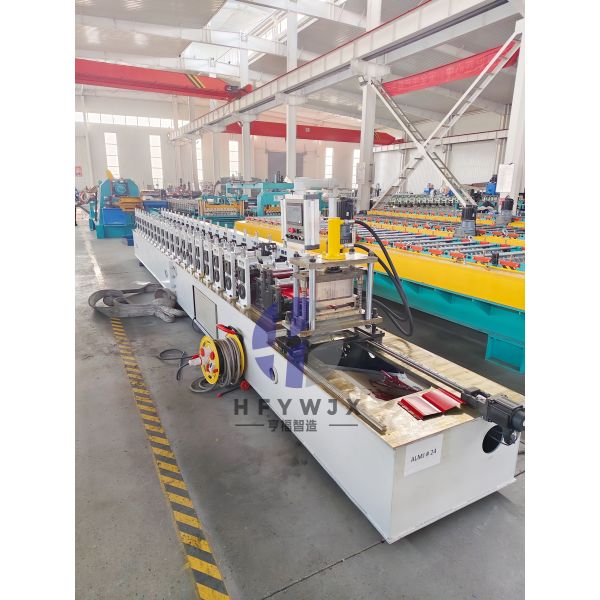

15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Package Size :
800.00cm * 150.00cm * 160.00cm
Package Gross Weight :
7000.000kg
Tile Type :
Glazed Steel
Condition :
New
Usage :
Roof, Wall
Certification :
CE, SGS
Customized :
Customized
Transmission Method :
Electric
Feed Width :
305mm
Hydraulic Pump Power :
4kw
HS Code :
8455221000
Control System :
PLC
Description
Advanced Steel Wall Panel Forming Machine Automatic High Performance Exterior Siding Production Line for Fast Output

Dongguang Hengfu Roll Forming Machine Co., Ltd. brings you a fully automatic outdoor metal wall cladding production line, professionally designed for high‑efficiency, high‑precision forming of exterior wall panels. With stable structure, reliable performance, and long service life, this production line is widely recognized in the building materials industry and trusted by global customers for large‑scale and standardized production.

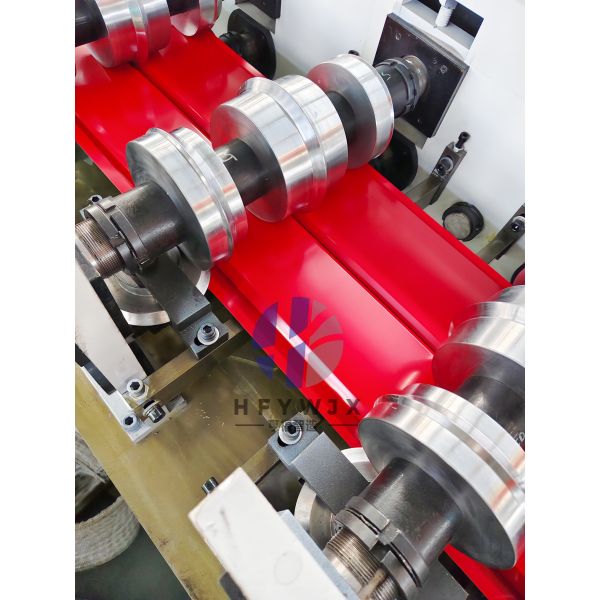

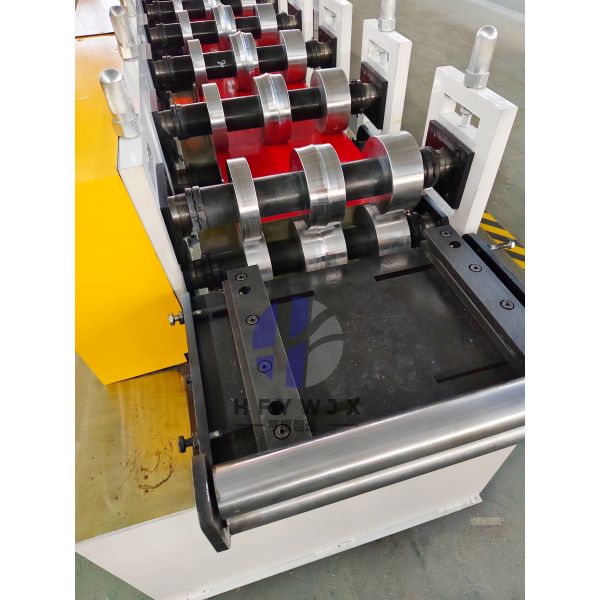

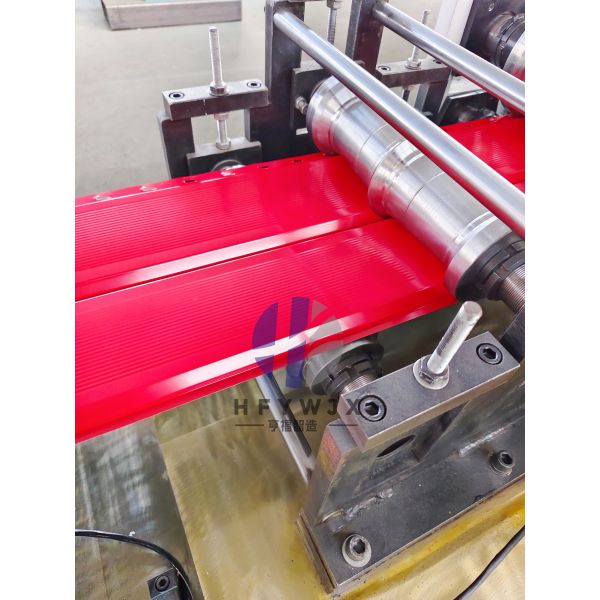

This line adopts a heavy‑duty integrated square frame structure that provides excellent rigidity and stability during high‑speed operation. It is equipped with 30 rows of forming stations, using high‑quality 45# steel rollers with surface chrome plating to ensure smooth forming, no scratch on material surface, and consistent profile accuracy. The φ60mm solid spindle and stable chain drive system ensure smooth transmission and low noise for long‑term running.

Powered by an 11KW main motor and supported by a 4KW hydraulic pump unit, the production line achieves an efficient running speed of 15-20m/min, greatly improving output while ensuring product stability. The hand‑cranked feeder ensures steady and convenient material feeding, suitable for coils with a width of 305mm, meeting most conventional wall cladding production requirements.

Equipped with an industrial PLC control system, the whole line realizes automatic operation, precise positioning, and accurate length cutting with an error within 1mm. The post‑forming cutting system delivers clean, burr‑free cuts and stable performance with low maintenance. The whole workflow is coherent, easy to operate, and reduces labor cost, making production more efficient and safer.

Certified with CE and SGS, this outdoor metal wall cladding production line is manufactured under strict quality control by Dongguang Hengfu Roll Forming Machine Co., Ltd. It features simple installation, convenient maintenance, and strong adaptability for various metal materials. For enterprises engaged in building wall panel manufacturing, this machine is a cost‑effective and reliable production solution.

Technical Specifications

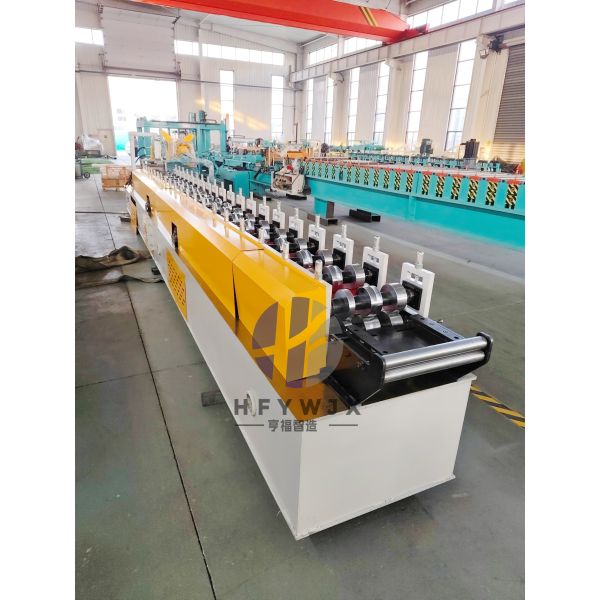

Machine Frame Integral square frame
Number of roll groups 30 rows formed
Spindle diameter φ60mm
Main motor power 11kw
Transmission method Chain drive
Production speed 15-20M/min
Feeding method Hand-cranked feeder
Electrical control system PLC
Product Gallery
15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations 15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations 15-20m/Min Speed Automatic Metal Cladding Roll Forming Machine 30 Rows Forming Stations
Frequently Asked Questions
Can machines be customized according to our drawings?
Yes. Simply provide the profile cross-section drawings, as well as the required sheet thickness, width, and length range, and we can design a machine model tailored specifically to your needs.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
