High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Colored Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall, Floor
Transmission Method :
Hydraulic Pressure
Transmission Mode :
1.2-Inch Quenched Chain
Cutting Method :
Three Blade Linear Guide Cutting
Transport Package :
Plastic Film & Steel Wire Fixed
Specification :
6000mmx1100mmx1000mm
Package Size :
600.00cm * 110.00cm * 100.00cm
Package Gross Weight :
6500.000kg
Description

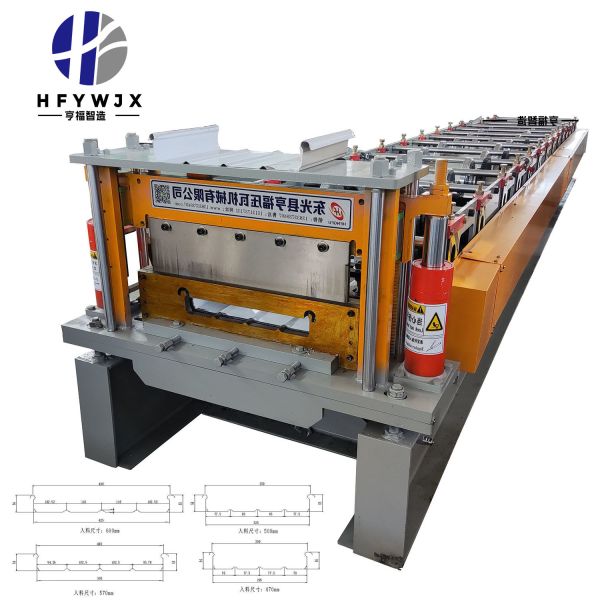

High Speed Automatic 430 Standing Seam Roof Forming Machine
Product Overview

The 430 high-altitude ridge cap equipment is a professional metal forming machine specially designed for roof ridge cap production. As a core piece of equipment in the metal roof construction industry, it integrates multiple functions including feeding, molding, and shearing. This machine is widely used for producing ridge caps for various industrial and civil building roofs, providing reliable equipment support for efficient and high-quality roof construction projects.

Machine Structure & Components

This ridge cap forming machine features a compact and rational structure comprising several key components:

  • Loading Rack & Support: Provides stable placement and support for raw material coils
  • Feed Introduction Platform: Ensures smooth and accurate feeding of steel plates

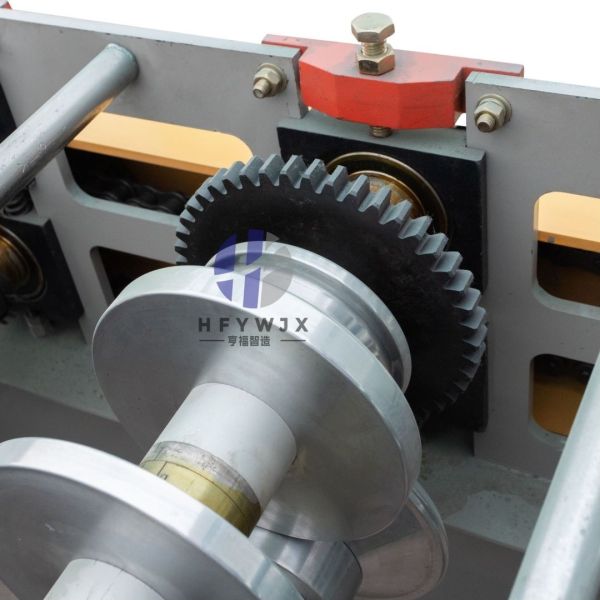

  • Molding Host: Completes continuous roll forming through 14 rows of molding rollers
  • Molding & Shearing Device: Enables automatic fixed-length cutting of finished products

This integrated system facilitates automatic production from raw materials to finished ridge caps.

Technical Specifications
Model NO 430
Condition New
Usage Roof
Feeding Width 600mm
Machine Frame 350H steel frame
Forming Speed 0-30M/min
Color Customized
Type of Driven Chain drive
Transmission Method Hydraulic pressure
Number of Rolling Mill Sets 14 row molding
Spindle Diameter Φ70mm (Solid shaft)
Customized Customized
Feeding Method Double hand rocking feeding rack
Specification 6000mm x 1100mm x 1000mm
Origin Cangzhou, Hebei
Warranty 1 year
Raw Materials Aluminum magnesium manganese
Key Advantages
  • High-Altitude Operation: Compact structure suitable for convenient on-site construction
  • Superior Quality Output: Produces ridge caps with beautiful shape, accurate dimensions, and excellent sealing performance
  • Enhanced Roof Performance: Improves waterproof and windproof capabilities of roofs
  • High Automation: Simple operation reduces labor costs
  • Versatile Application: Suitable for steel structure workshops, commercial buildings, residential buildings, and various other roof types
Product Gallery
High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding High Speed Automatic 430 Standing Seam Roll Former With Hydraulic Pressure Transmission And 14 Row Molding
Frequently Asked Questions
How many people are required to operate the machine?
It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Do you have customers for your equipment in our country?
Yes, we have established customers in the Middle East, North Africa, and various European countries.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
What is the difference between your machines and cheaper alternatives?
  • Thicker machine frame that maintains integrity even after prolonged use
  • High precision rollers ensuring standard and consistent panel profiles
  • Stable cutting system guaranteeing precise length accuracy
  • Low failure rate and minimal maintenance costs
  • Significantly longer service life
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
