Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Specifications
Brand Name :
HENGFU
Model Number :
820 Standing Seam Roll Forming Machine
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Delivery Time :
45Days
Packaging Details :
Plastic Film & Steel Wire Fixed
Tile Type :
Colored Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall
Transmission Mode :
1.2-Inch Quenched Chain
Transmission Method :
Hydraulic Pressure
Specification :
9300mmx1400mmx1100mm
HS Code :
8474801000
Production Capacity :
400sets/Year
400sets/Year :
930.00cm * 140.00cm * 110.00cm
Package Gross Weight :
6500.000kg
Description

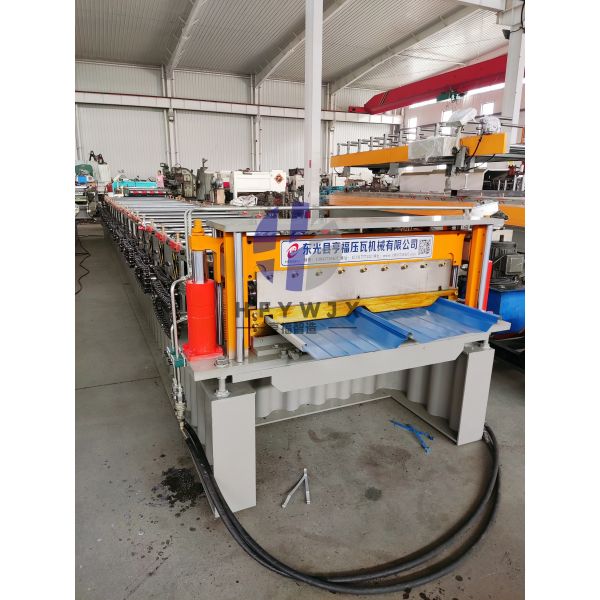

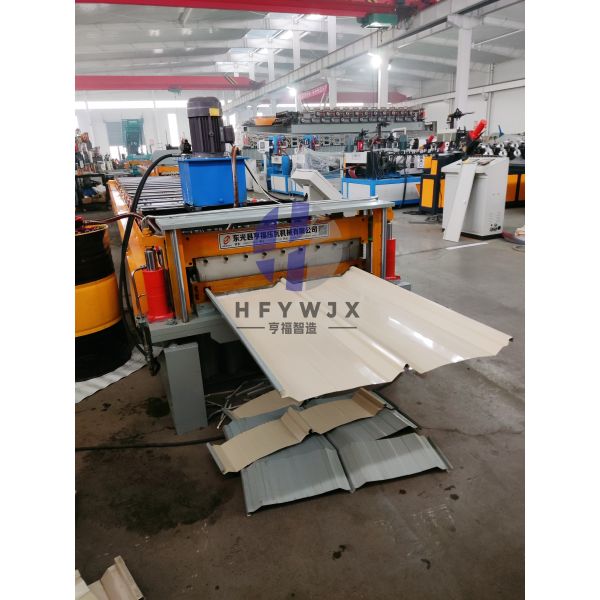

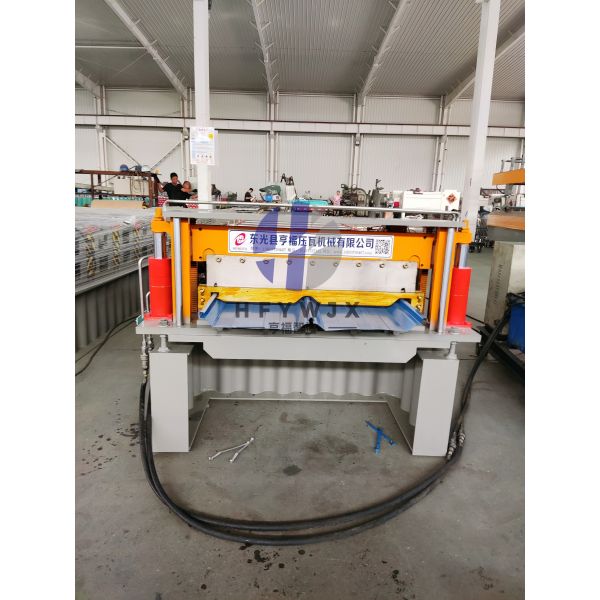

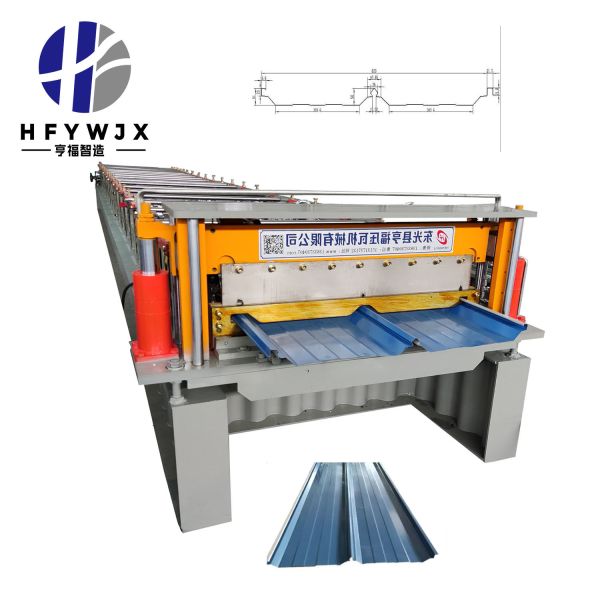

Standing Seam Roll Forming Machine

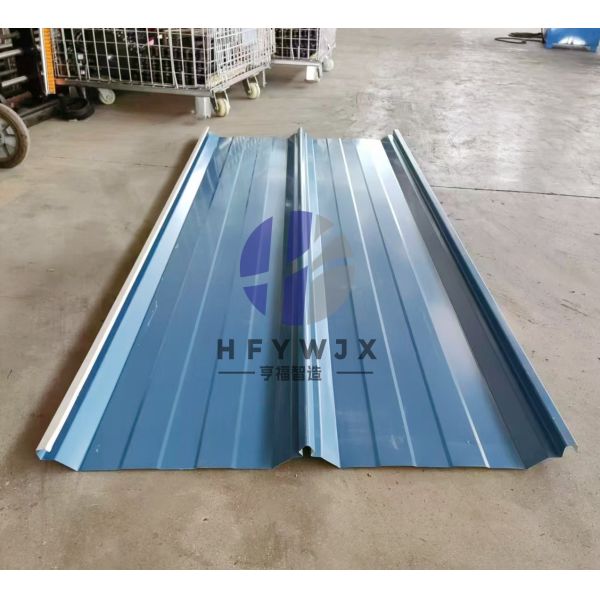

This professional standing seam roll forming machine is designed for efficient production of roofing and wall panels with precision and reliability.
Technical Specifications
Model Number 820
Condition New
Usage Roof, Wall, Building
Feeding Width 1000mm
Machine Frame 400H Steel Frame
Forming Speed 0-35 M/min
Color Customized
Type of Driven Chain Transmission
Transmission Method Hydraulic Pressure

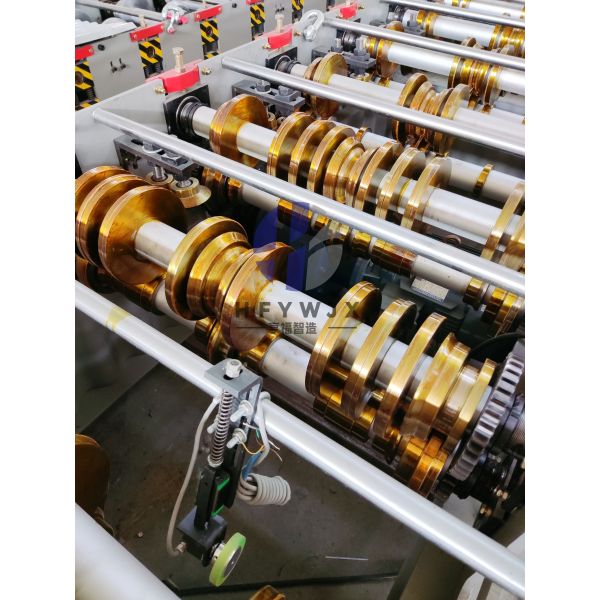

Number of Rolling Mill Sets 20 Row Molding
Spindle Diameter Φ70mm (Solid Shaft)
Customization Customized
Feeding Method Double Hand Rocking Feeding Rack
Specification 9300mm x 1400mm x 1100mm
Origin Cangzhou, Hebei
Warranty 1 Year
Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels Hydraulic Standing Seam Roll Forming Machine 20 Row Molding For Colored Steel Roof And Wall Panels
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
