3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model :
300 Ridge Tile Machine
Customization :
Customization
Transmission Method :
1-Inch Chain Drive
External Voltage :
3-Phase 380V, 50Hz
Description
300 Ridge Cap Roll Forming Machine for Sale | High Efficiency Roofing Machine, Durable, Precision, Low Cost Maintenance
Product Overview

The 300 Ridge Cap Roll Forming Machine is a reliable and cost-effective solution for manufacturing high-quality metal roofing ridge caps. Designed for automatic and continuous production, this machine is widely used in the construction industry and is suitable for various roofing systems.

Built with a strong and stable steel frame, the machine ensures smooth operation and excellent forming performance. The forming rollers are made of high-quality steel with precision machining and surface treatment, providing high wear resistance and long service life.

Key Features
  • Advanced PLC control system with user-friendly touchscreen interface
  • Production speed up to 10-20 meters per minute
  • Precision cutting with length tolerance within ±1mm
  • Hydraulic cutting system for clean and accurate cuts
  • Durable construction with minimal maintenance requirements
  • Reduces labor costs and improves production efficiency
Technical Specifications
Feature Specification
Feeding Platform Dual-Hand Crank-Operated Feeding Stand (with Cutter)
Frame Structure Welded 350H-Section Steel; Wall-Plate Type Construction
Wall Plate Thickness 14mm Carbon Steel Plate
Forming Stations 18 Rows
Main Shaft Diameter Ø70mm (Solid Shaft)
Low-Voltage Electrical Components Limit Switches, Contactors, Relays, etc.
External Voltage 3-Phase 380V, 50Hz
Length Tolerance ±1mm
Overall Dimensions (L x W x H) Approx. 8000mm x 900mm x 1600mm

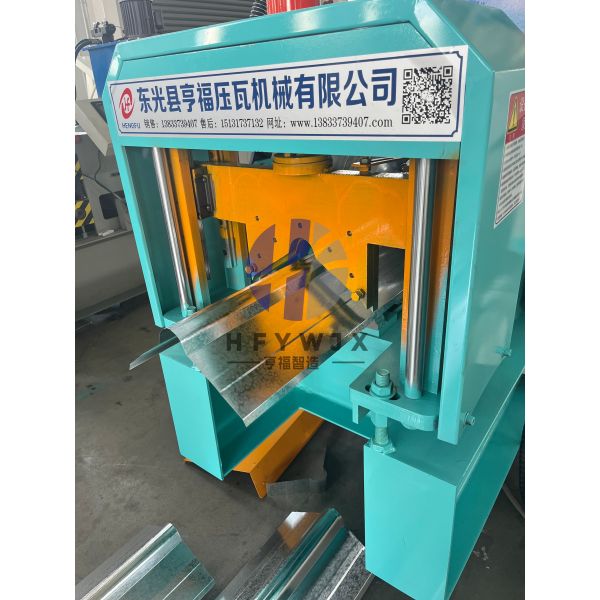

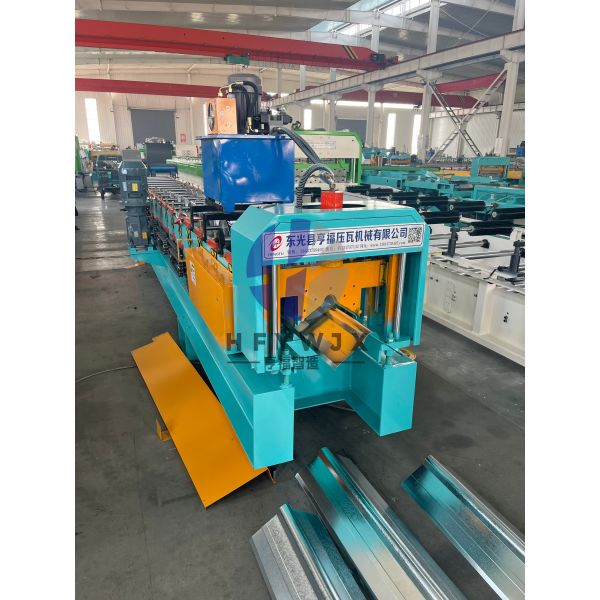

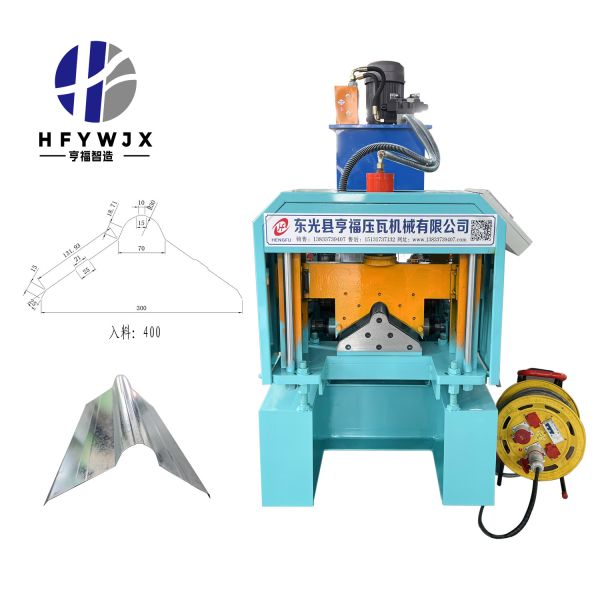

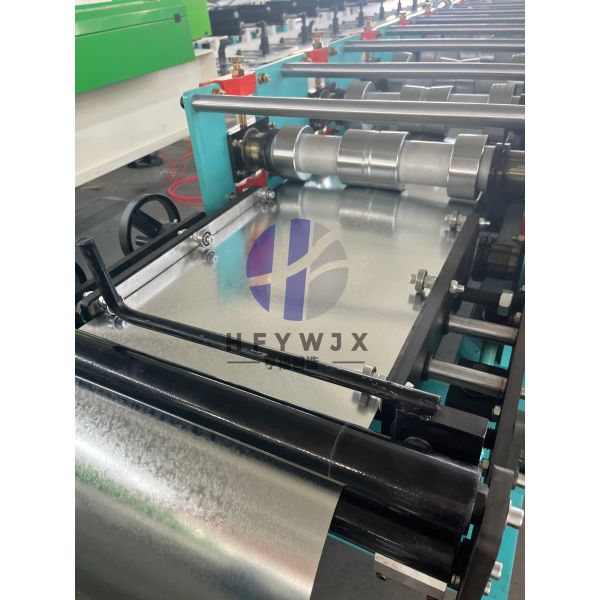

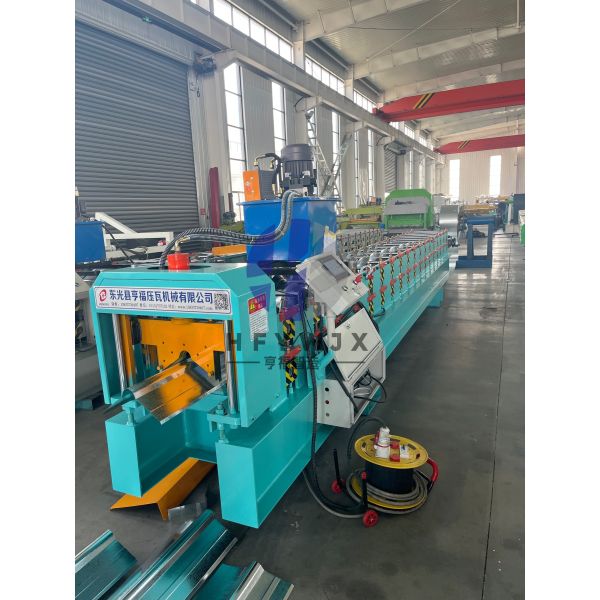

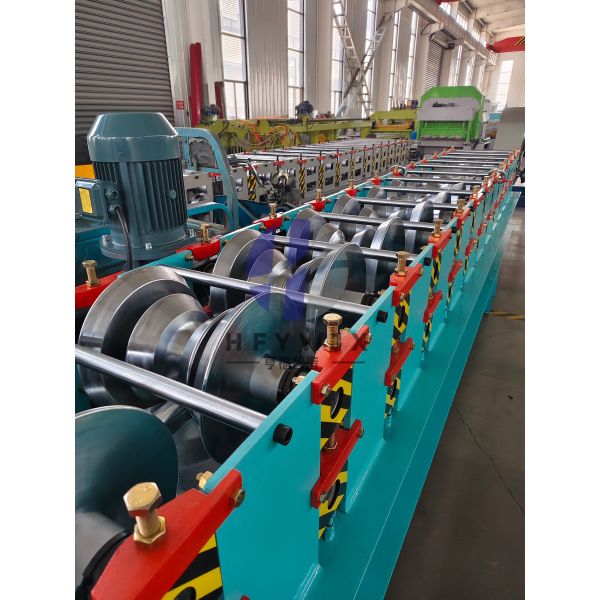

Product Images
3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles 3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles 3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles 3 Phase 380V 300 Ridge Cap Roll Forming Machine Durable Precision For Metal Ridge Tiles
Frequently Asked Questions
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
Can the voltage be customized to meet our country's standards?
Yes: 380V/220V, 50Hz/60Hz—both three-phase and single-phase options are available.
What checks need to be performed before starting the machine?
Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
