High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model :
310 Ridge Tile Machine
Customization :
Customization
Transmission Mode :
1inch Chain Drive
Electronic Control System :
PLC
Description
High-Speed Automatic Ridge Tile Machine

The 310 ridge tile machine is professional cold roll forming equipment specifically designed for producing roof ridge tiles. These tiles play a crucial role in connecting roof ridges of different slopes, ensuring waterproof drainage while enhancing the decorative effect of the roof.

As key equipment in the metal building material processing industry, it processes metal sheets such as galvanized steel plates and colored steel plates into standard ridge tiles through continuous roll forming technology. This machine is widely applicable to steel structure workshops, warehouses, and various industrial and civil buildings.

The machine is named for its 310mm feeding width, which perfectly matches raw material specifications, laying the foundation for stable and efficient production.

Key Features & Performance
  • Excellent stability and processing precision with 350H steel frame construction

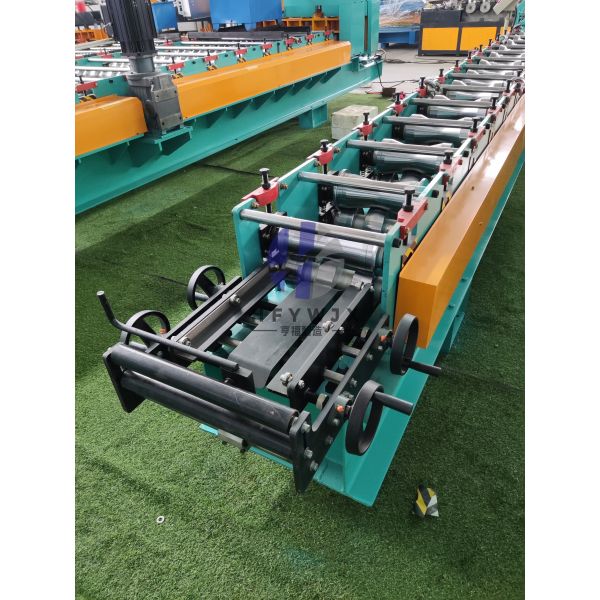

  • 14 groups of rolling forming rollers with solid φ70mm diameter roller shafts
  • 1-inch chain drive transmission system with adjustable forming speed (0-8 m/min)

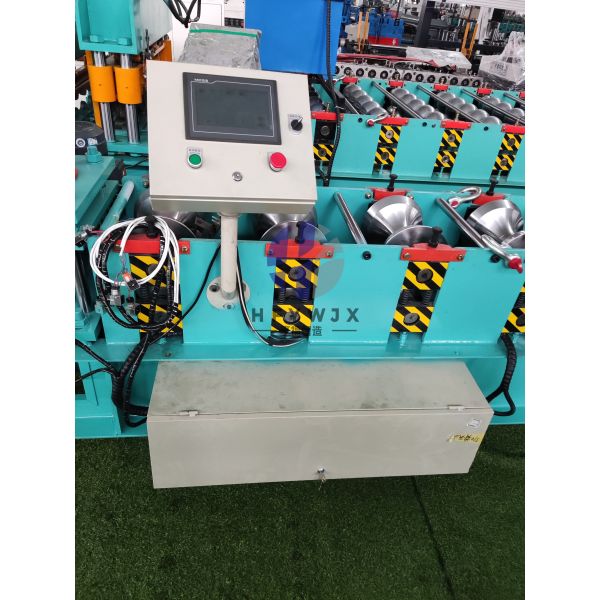

  • Industrial PLC frequency conversion control system with touch screen operation
  • Post-forming cutting with four-column guide rod structure for burr-free edges
  • 4kw cutting power for stable processing of 0.25-0.8mm thickness metal sheets
  • Supports customized production for different shapes and specifications
Technical Specifications
Model NO 310 Ridge tile machine
Condition New
Usage Roof
Feeding Width 310mm
Machine Frame 350H steel frame
Forming Speed 0-8 M/min
Color Customized
Type of Driven Chain drive
Spindle Diameter Φ70mm (Solid shaft)
Product Images
High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming High Speed 310mm Feeding Width 14 Row Molding Roof Ridge Roll Forming
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
