Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
Circular flange forming machine
Certification :
CE, SGS
Customized :
Customized
Transmission Method :
Electric
Cutting Method :
Cr12moy
Transport Package :
Plastic Film & Steel Wire Fixed
Origin :
Dongguang, Cangzhou City, Hebei Province
Production Capacity :
500sets/Year
Tile Type :
Colored Steel
Condition :
New
Usage :
Roof, Wall
Transmission Mode :
1.2-Inch Quenched Chain Drive
Model :
Circular Flange Forming Machine
Specification :
7000mmx2000mmx1800mm
HS Code :
8455221000
Description

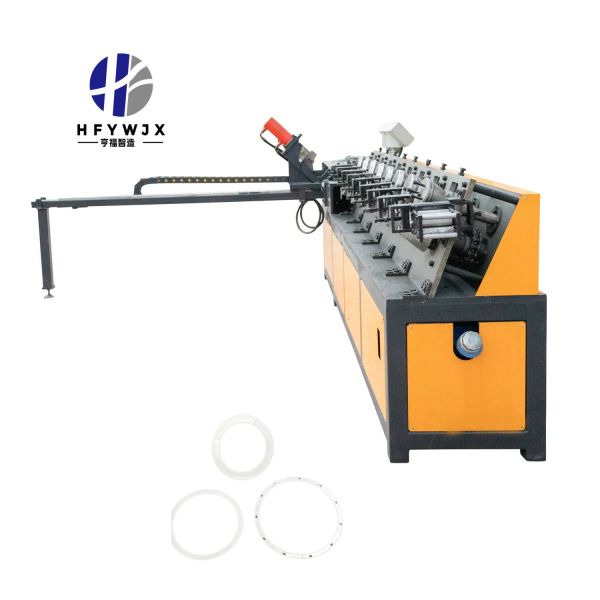

Flange Roll Forming Machine
This round angle steel flange production line is a fully automated, highly efficient solution designed for manufacturing circular flanges used in pipeline systems, ventilation ducts, and structural connections. Capable of processing carbon steel, stainless steel, and other metal profiles into high-precision round flanges, it ensures excellent dimensional accuracy and strong structural integrity.
With adjustable forming diameters ranging from 200 mm to 1600 mm, the machine meets a wide range of industrial production requirements. The production line features a robust 80×80 square tube frame combined with an integrated iron platform, providing outstanding rigidity and long-term operational stability.
Key Features

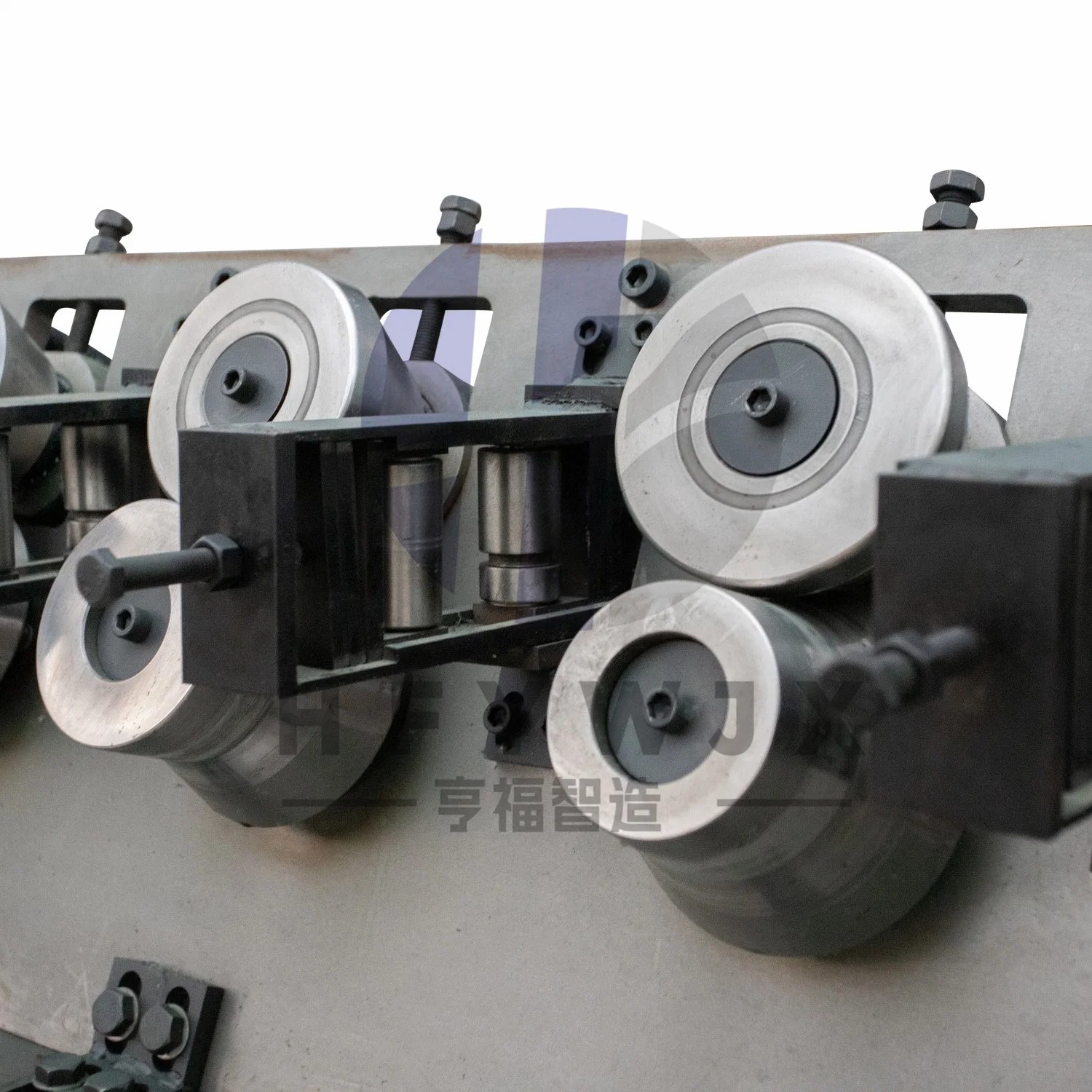

  • Advanced rolling system with multi-row forming stations and linear guide arc transmission
  • Quenched chain transmission system for enhanced durability
  • Full automation with easy parameter setting for diameter and production

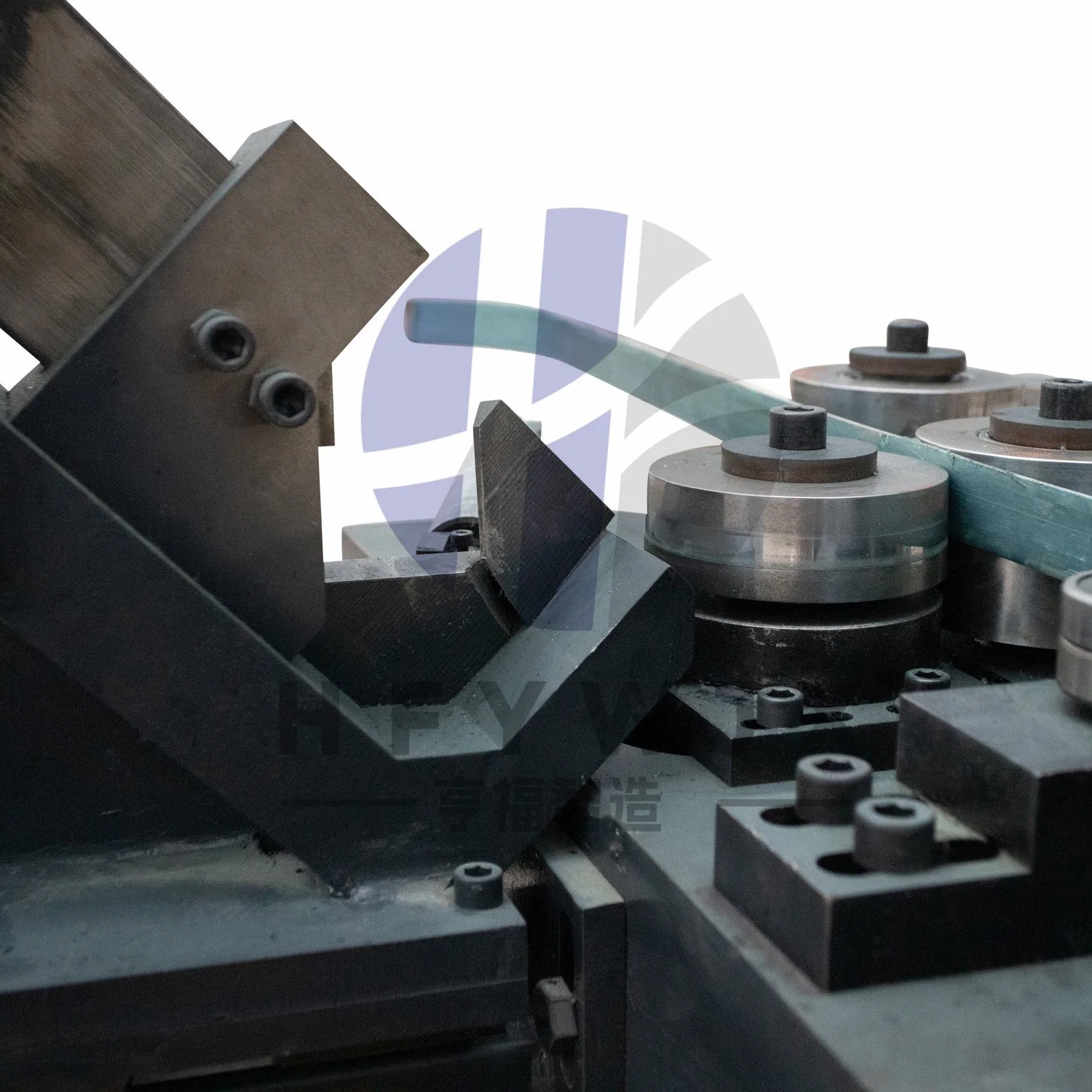

  • Streamlined workflow integrating feeding, rolling, and cutting
  • High production speed with minimal material waste
  • Supports various materials including strip steel, pipes, and channel steel
  • Customizable to meet specific project requirements
Technical Specifications
Model Number Circular flange forming machine
Condition New
Usage Pipeline
Round Diameter 200-1600mm
Machine Frame 80×80 square tube frame style
Machine Platform Integrated iron plate platform
Transmission Method Hydraulic pressure
Number of Rolling Mill Sets 5-row forming linear guide arc transmission
Specification 7000mm×2000mm×1800mm
Suitable Materials Carbon steel plate and stainless steel plate
Origin Cangzhou, Hebei
Warranty 1 year
Production Capacity 400/Set

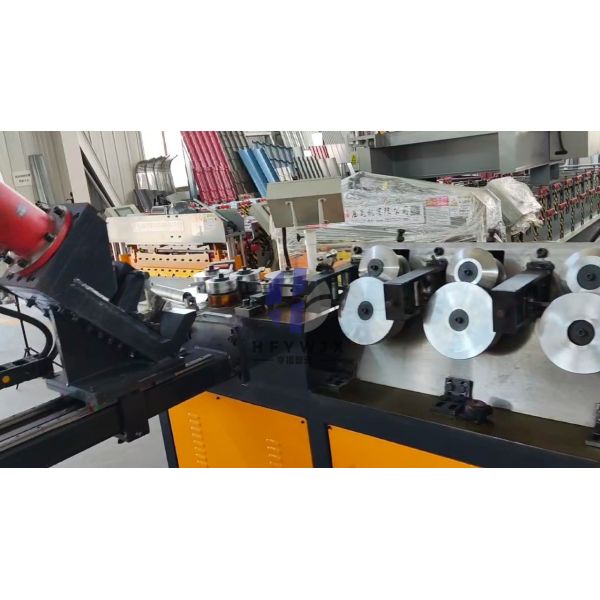

Product Gallery
200-1600mm Adjustable Flange Forming Machine 80×80 Square Tube Frame And 5 Row Forming Linear Guide Arc Transmission 200-1600mm Adjustable Flange Forming Machine 80×80 Square Tube Frame And 5 Row Forming Linear Guide Arc Transmission 200-1600mm Adjustable Flange Forming Machine 80×80 Square Tube Frame And 5 Row Forming Linear Guide Arc Transmission 200-1600mm Adjustable Flange Forming Machine 80×80 Square Tube Frame And 5 Row Forming Linear Guide Arc Transmission
Frequently Asked Questions
How can issues such as skewed or off-center sheet feeding be resolved?
The equipment is equipped with a hydraulic alignment system or a manually adjustable feed guide mechanism, allowing for easy correction.
Can it be integrated into a complete color steel production line?

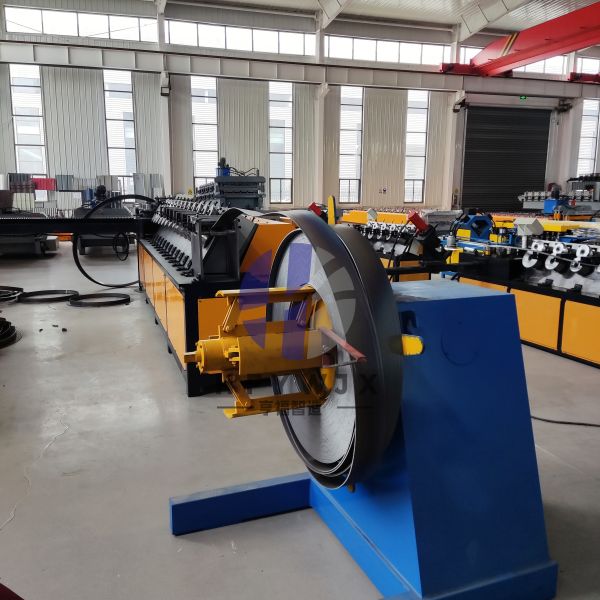

Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
What are the available cutting methods?
Hydraulic Flying Shear or Servo Tracking Flying Shear (higher precision, faster speed, burr-free cuts).
What is the structure of the machine frame?
It features a fully welded steel plate frame, constructed from thickened steel plates that have undergone stress-relieving annealing to ensure they remain free from deformation.
What materials is this machine suitable for?
Cold-formed materials such as color-coated steel, galvanized steel, aluminum-magnesium-manganese alloy, and stainless steel.
