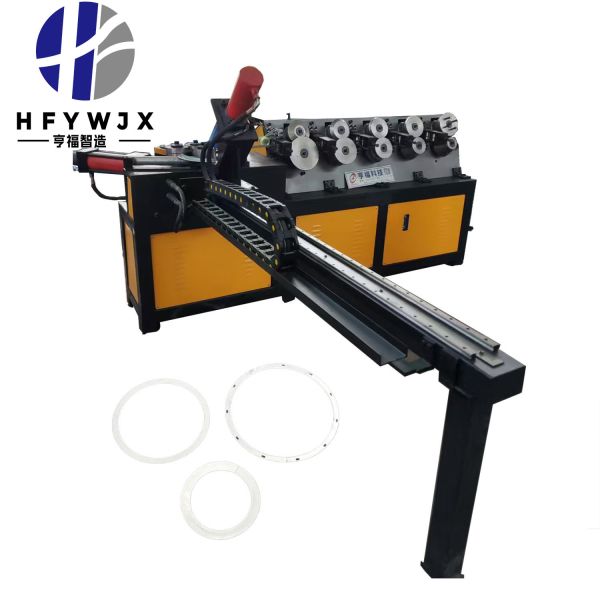

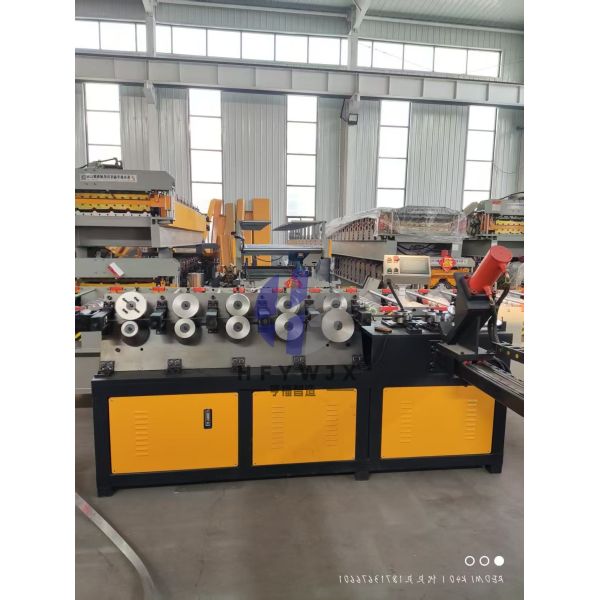

Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Package Size :
700.00cm * 200.00cm * 180.00cm
Package Gross Weight :
5000.000kg
Model NO. :
Circular flange forming machine
Cutting Material :
Cr12moy
HS Code :
8455221000
Warranty :
1 Year
Transmission Mode :
1.2-Inch Quenched Chain Drive
Origin :
Dongguang, Cangzhou City
Production Capacity :
400/Set
Description
Industrial Circular Flange Making Machine Heavy Duty Metal Plate Angle Iron Rolling Equipment
Dongguang Hengfu Roll Forming Machine Co., Ltd. introduces a high-performance hydraulic circular air duct flange forming machine, specially engineered to deliver precision, efficiency, and durability for HVAC duct and ventilation system manufacturing. This specialized equipment is built to streamline the production of circular duct flanges, ensuring tight, leak-proof connections and structural integrity in every finished product.
This machine is optimized to process a wide range of common duct materials, including galvanized steel and stainless steel sheets, delivering consistent, dimensionally accurate flanges with smooth, burr-free edges. It supports various standard and custom flange sizes, making it suitable for residential, commercial, and industrial ventilation projects of all scales.
Designed for heavy-duty continuous use, the machine features a rigid welded steel frame that minimizes vibration and maintains stability during high-volume production. Its high-quality hydraulic system provides powerful, controlled force for smooth, reliable forming, while precision tooling guarantees consistent results with minimal wear.
Technical Specifications
Model NO Circular flange forming machine
Condition New
Usage Pipeline
Round diameter 200-1600mm
Machine frame 80 * 80 square tube frame style
Machine platform Integrated iron plate platform
Tile box Upper detachable tile box
Type of Driven Chain drive
Transmission Method Hydraulic pressure
Number of rolling mill sets 5-row forming linear guide arc transmission
Specification 7000mmx2000mmx1800mm
Origin Cangzhou, Hebei
Warranty 1 year
Production Capacity 400/Set
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Heavy Duty Metal Plate Circular Flange Forming Machine Cr12moy Tdf Flange Machine
Frequently Asked Questions
Q: What checks need to be performed before starting the machine?
A: Check the lubrication, voltage, emergency stop button, cutter position, feed guides, etc.
Q: Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
A: Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
Q: How should the machine be stored when not in use for an extended period?
A: Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
Q: How many people are required to operate the machine?
A: It requires just one operator plus one person to handle the output; for highly automated models, a single person is sufficient.
Q: How long is the warranty period?
A: The entire machine comes with a 12-month warranty, excluding wear parts.
