Specifications
Brand Name :
HENGFU
Model Number :
Flexible Connection Production Line
Place of Origin :
CHINA
MOQ :
1 Piece
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Delivery Time :
45Days
Packaging Details :
Plastic Film & Steel Wire Fixed
Galvanized Sheet Thickness :
0.3-0.6mm
Galvanized Sheet Width :
50-105mm
Fireproof Cloth Width :
120-450mm
Finished Product Width :
180-600mm
Forming Passes :
12 Rows
Main Shaft Material :
Cr40
Control System :
PLC Controlled
Voltage :
380V/50Hz/3Phase
Production Speed :
6-8m/min
Machine Size :
3.5m×2m×1.5m
Description

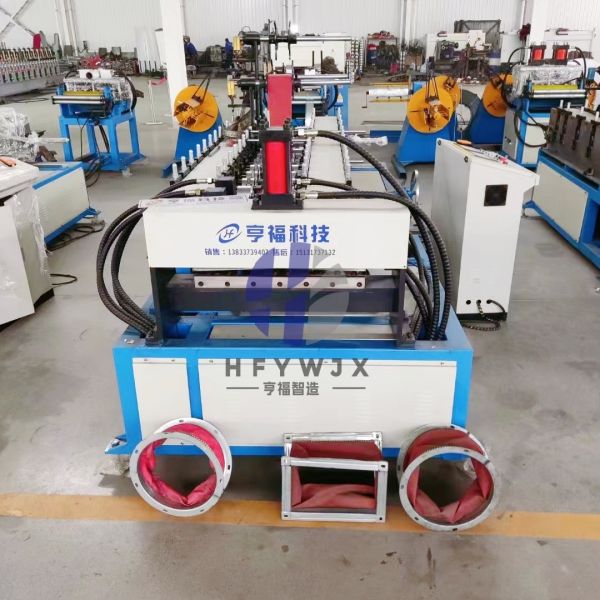

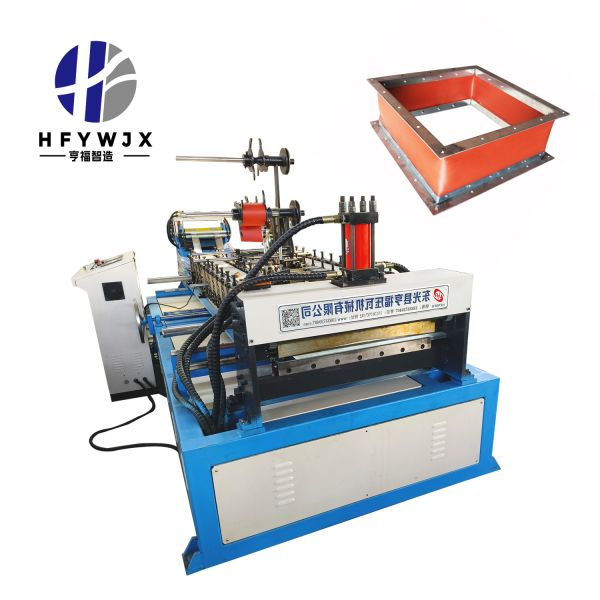

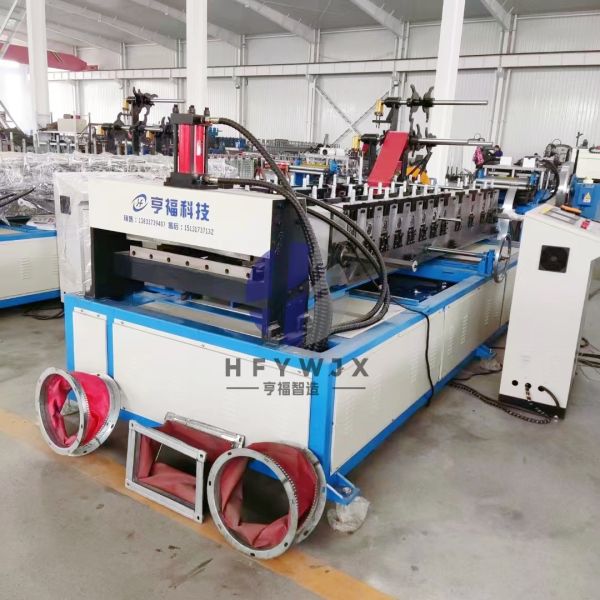

Flexible Connection Production Line
This automated production line is specially designed for manufacturing flexible connection products, featuring a stable structure and efficient workflow.
Raw Materials Specifications
No. Item Specification
1 Thickness of Galvanized Iron Sheet 0.3-0.6mm
2 Width of Galvanized Iron Sheet 50-105mm
3 Width of Fireproof Cloth 120-450mm
4 Width of Final Finished Product 180-600mm
Main Technical Parameters
No. Item Specification
1 Forming Passes 12 Rows
2 Main Shaft Material Cr40, finished machining with keyway drawn
3 Roller High-grade Gcr15 material, processed by CNC machining; roller surface plated with hard chrome (0.05mm thickness)
4 Main Motor 3KW Shanghai Lichao Motor with cycloidal pinwheel reducer
5 Frame Welded structure with 80*80 square tube, vertical plate thickness: 14mm
6 Transmission Mode Main shaft sprocket drives gears to power lower shaft; PLC electric control cabinet
7 Voltage 380V/50HZ/3Phase (customizable)
8 Sheet Discharging Speed 6-8m/min
9 Overall Machine Dimensions Approx. 3.5m×2m×1.5m
Production Workflow
  • Uncoiling
  • Servo Feeding and Punching
  • Roll Forming
  • Punching
  • Cutting
  • Material Collecting

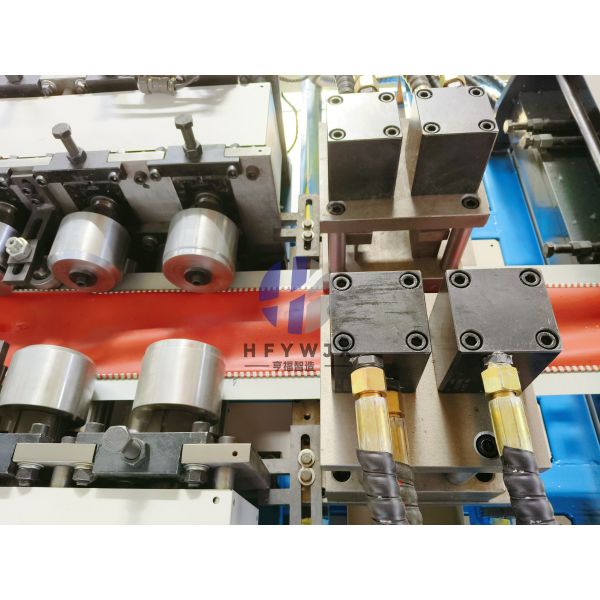

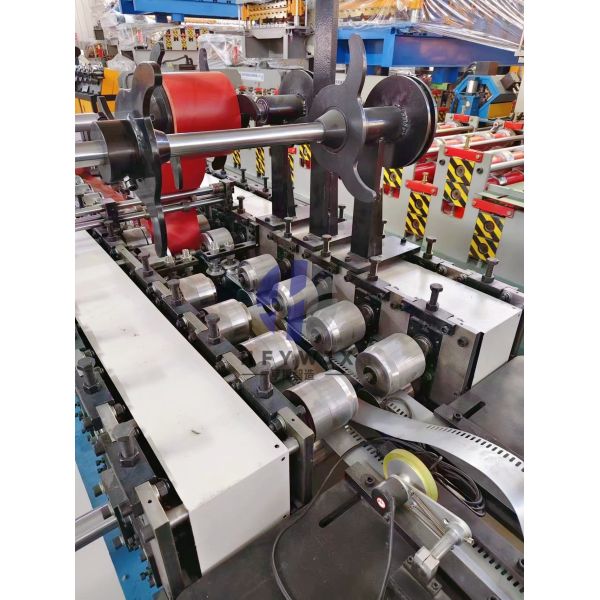

The core forming machine is equipped with 12 forming passes, using high-quality Cr40 main shafts and Gcr15 rollers with hard chrome plating for durability. Driven by a 3KW motor and controlled by a PLC system, it ensures stable operation and precise forming, with a production speed of 6-8m/min.
The complete production process enables efficient and automated mass production of flexible connection products with widths ranging from 180-600mm to meet diverse application needs.
PLC Controlled Flexible Connection Production Line with 12 Forming Passes and Cr40 Main Shaft PLC Controlled Flexible Connection Production Line with 12 Forming Passes and Cr40 Main Shaft PLC Controlled Flexible Connection Production Line with 12 Forming Passes and Cr40 Main Shaft
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional manufacturer. You are very welcome to visit our factory at any time.
What's the delivery time?
Normally it takes about 45 days.
What service can you provide before order?
We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.
Can you finish the machine during the delivery time?
We will complete production on time according to the confirmed lead time.
Do you have after-sale support?
Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.
Any other service?
We can manufacture, design, install and commission various roll forming machines, including both standard and customized ones. Machine assembly and operator training are free of charge, but the buyer is responsible for the round-trip flight tickets and accommodation for our technicians.
