Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
M-shaped cold bending forming equipment
Tile Type :
Colored Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall
Transmission Method :
Electric
Feed Width :
198±5 mm
Control System :
PLC
Hydraulic Pump Power :
4kw
Specification :
5100mm*900mm*2000mm
Package Size :
510.00cm * 90.00cm * 200.00cm
Package Gross Weight :
2500.000kg
HS Code :
8455221000
Description
Customizable M-shaped Cold Bending Equipment – Ensure Flexible, Precise, and Reliable Custom Production
Dongguang Hengfu Machinery Co., Ltd. independently develops and produces high-performance cold roll forming machines. As a modern production system, it specializes in processing high-precision steel profiles, with excellent product uniformity and durable long-term operation performance. With premium rolling rollers, sturdy welded structure and precise forming stations, it guarantees smooth surface finish, strict dimensional tolerance and stable performance during uninterrupted production.
Adopting a fully automatic PLC frequency control system, the production line completes coil loading, flattening, deviation correction, forming, servo cutting and discharging in one continuous procedure. The easy-to-operate human-machine interface realizes flexible parameter adjustment, rapid profile switching and dynamic production monitoring, greatly improving production safety and operation efficiency.
This forming machine supports processing various metal materials, including galvanized steel sheet, color coated steel sheet, cold rolled steel sheet and aluminum sheet. We offer comprehensive customized solutions covering profile shape, material thickness, forming speed, station configuration, cutting mode and famous-brand electrical components.
Cold roll forming technology from our company is extensively used for manufacturing roofing materials, wall boards, purlins, metal floor decks, drainage systems, door frames, cable trays and structural steel parts. It is highly suitable for steel buildings, industrial plants, warehouse construction and large-scale metal processing projects.
Technical Specifications
Roll Forming Part
Frame structure Precision milling of square boxes
Number of forming rows 14 rows
Wall panel thickness 20mm
Material feeder Two-hand crank feeder with pull cutter
Transmission method Gear drive
Forming roller shaft 50mm solid shaft
Cutting device type Hydraulic shears
Hydraulic pump power 4 kW
Tool material CR12 Mov, hardened to 58-62 kW
Punching Section
Frame Independent frame
Feeding device Servo feeder
Feeding motor power 1.5 kW (servo motor)

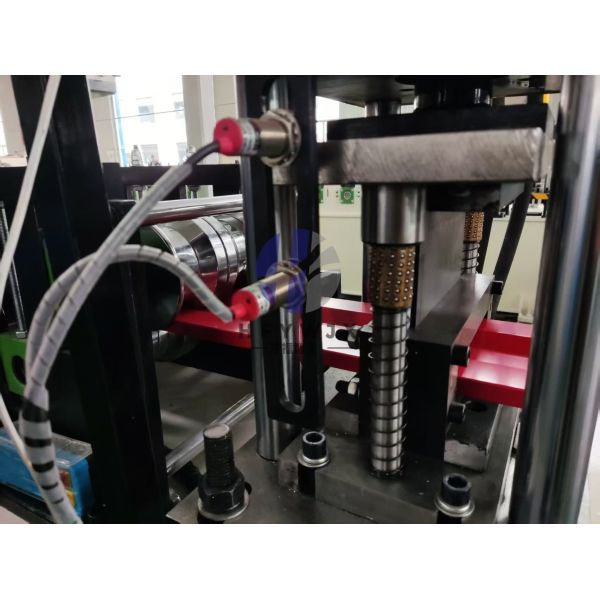

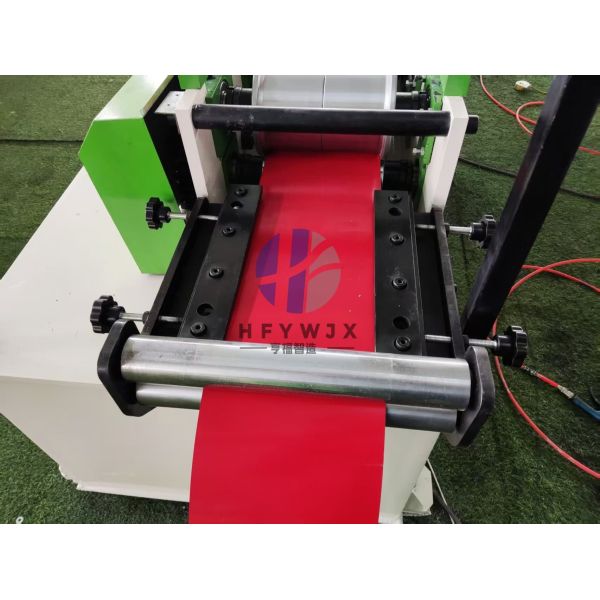

Product Gallery
Customizable M Shaped Cold Bending Machine With PLC Control System Precise Customizable M Shaped Cold Bending Machine With PLC Control System Precise Customizable M Shaped Cold Bending Machine With PLC Control System Precise Customizable M Shaped Cold Bending Machine With PLC Control System Precise
Frequently Asked Questions
Can the machine produce curved or irregularly shaped panels?
Yes, it can be customized with arching and bending mechanisms to enable the forming of curved roofing tiles.
Is there a leveling device at the material inlet?
It is equipped with a set of leveling rollers to ensure flat feeding and prevent waves or distortion in the sheet material.
Is the electrical system susceptible to moisture damage?
The electrical cabinet features a dust-proof and moisture-resistant design, allowing it to operate normally even within a simple outdoor shelter.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
