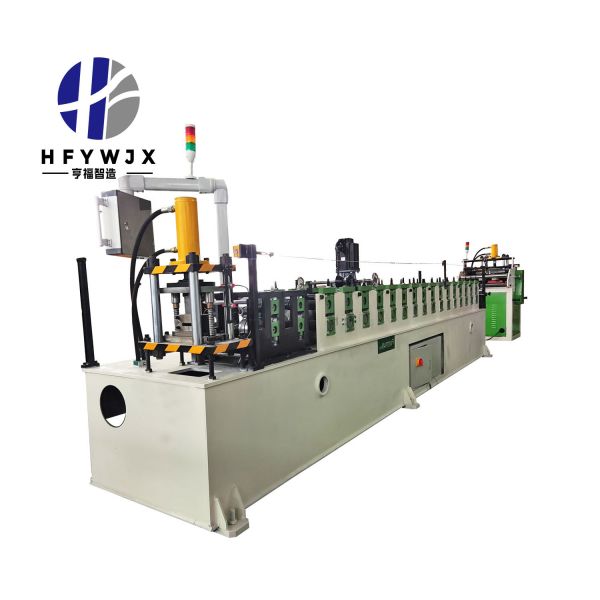

Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Tile Type :
Colored Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof
Transmission Method :
Electric
Feed Width :
119±5mm
Control System :
PLC
Hydraulic Pump Power :
4kw
Transport Package :
Plastic Film & Steel Wire Fixed
Specification :
5100mm*900mm*2000mm
Package Size :
510.00cm * 90.00cm * 200.00cm
Package Gross Weight :
2500.000kg
Description
Customized Special T-shaped Cold Bending Forming Equipment

Our T-Profile Roll Forming Machine is specially engineered to meet the high demands of the construction and interior decoration industries. It is dedicated to producing high-quality T-shaped metal profiles that serve as critical supports for ceilings, partitions, doors, and curtain walls.

Utilizing state-of-the-art continuous cold roll forming technology, the machine delivers superior processing precision. The resulting profiles feature clean edges and smooth surface finishes, ensuring they meet the strict quality standards required for premium construction applications.

The machine is designed for operational reliability and efficiency. It incorporates hardened forming rollers to withstand heavy-duty use, alongside a sophisticated PLC control system for precise automation. Hydraulic or servo cutting systems provide clean, accurate cuts, significantly boosting overall production efficiency.

The machine is compatible with a wide range of materials, from galvanized steel and carbon steel to stainless steel and aluminum. Recognizing that every project is unique, it also offers full customization of profile sizes based on customer drawings, ensuring a perfect fit for any application.

Technical Specifications
Roll Forming Section
Frame structure Precision milling of square boxes
Number of molding passes 16 rows
Wall panel thickness 20mm
Feed rack Two-hand crank feed belt with knife pull
Electrical control system configuration Split touchscreen electrical control box with remote control
Screws/Pull Rods Standard screws, 35 pull rods
Roller speed 0.5m/min, 4m/min

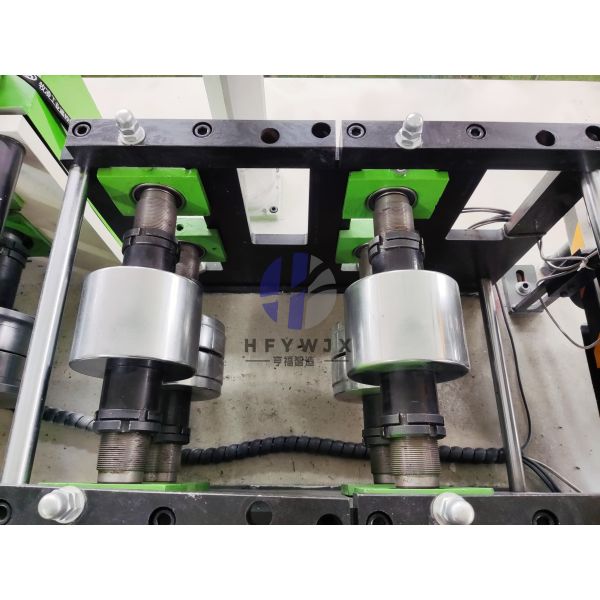

Forming rollers 45# steel, rough machining + finish turning + external cylindrical grinding + electroplating, hardness 45-50 HRC
Shearing device 5.5kW servo electric shear
Hydraulic pump power 4KW

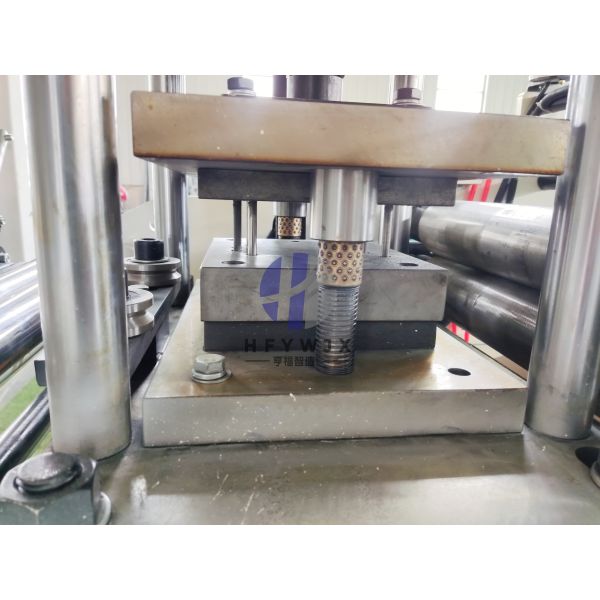

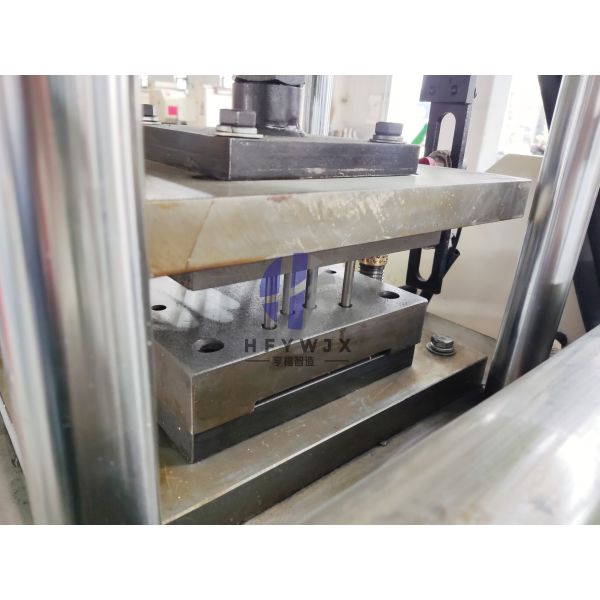

Punching Section
Rack Freestanding rack
Feeding device Servo feeding
Feeding motor power 1.5 kW servo motor
Product Gallery
Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles Customizable T Profile Forming Machine 16 Forming Passes For Precision Metal Profiles
Frequently Asked Questions
How should the machine be stored when not in use for an extended period?
Disconnect the power, clean the machine, apply anti-rust oil, cover it with a dust cover, and store it in a dry environment.
What are the available cutting methods?
Hydraulic Flying Shear
Servo Tracking Flying Shear (Higher precision, faster speed, burr-free cuts)
Can it be connected to an automatic stacker?
Yes, optional systems for automatic material collection, automatic stacking, and automatic counting are available.
Can you provide semi-automatic or fully automatic receiving tables?
Yes, optional configurations include pneumatic receiving, hydraulic receiving, and automatic stackers.
Can it be integrated into a complete color steel production line?
Yes, it can—forming a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
