Specifications
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Model NO. :
M-shaped cold bending forming equipment
Tile Type :
Colored Steel
Certification :
CE, SGS
Condition :
New
Customized :
Customized
Usage :
Roof, Wall
Transmission Method :
Electric
Feed Width :
198±5 mm
Hydraulic Pump Power :
4kw
Specification :
5100mm*900mm*2000mm
Control System :
PLC
Package Size :
510.00cm * 90.00cm * 200.00cm
Package Gross Weight :
2500.000kg
Description
High Speed M-shaped Cold Bending Equipment

Dongguang Hengfu Machinery Co., Ltd.'s cold roll forming machine is a cutting-edge production system engineered for high-precision steel profile manufacturing. It delivers superior product consistency and durable long-term reliability during operation. With heavy-duty high-quality rollers, rigid welded body structure and precise forming stations, the machine ensures smooth profile surface, accurate dimensional control and stable performance throughout continuous automated production.

Powered by an advanced full-automatic PLC control system, this production line completes coil loading, flattening, guiding correction, roll forming, servo shearing and finished product delivery in one continuous automated workflow. The intuitive operator interface enables easy parameter adjustment, fast profile model switching and real-time operation monitoring, guaranteeing safe, efficient and steady production performance.

The machine supports processing a wide range of metal raw materials, including galvanized steel, color coated steel, cold rolled steel and aluminum sheets. We offer complete customized design services, covering profile structure, material thickness, forming line speed, forming station number, cutting technology and optional famous electrical brands.

Our cold roll forming technology has extensive applications in roofing sheets, wall panels, C/Z/U purlins, metal floor decks, drainage pipes, door frames, cable trays and structural steel components. It perfectly fits construction projects, steel building systems, industrial warehouses, manufacturing plants and large metal structure processing projects.

Roll Forming Specifications

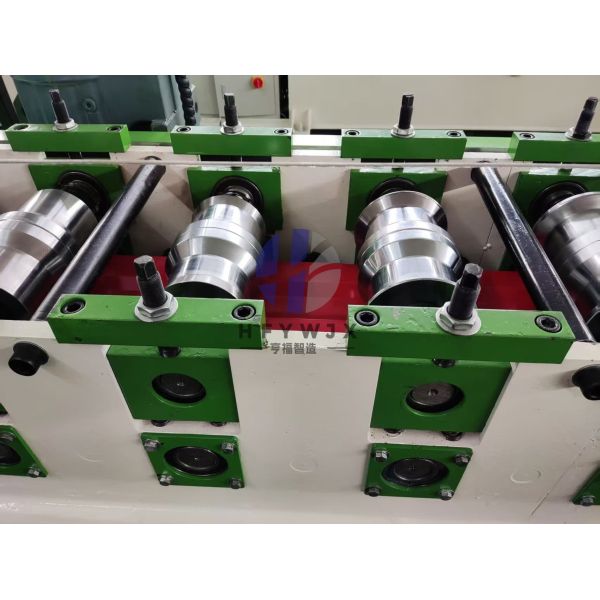

Frame structure Precision milling of square boxes
Number of forming rows 14 rows
Wall panel thickness 20mm

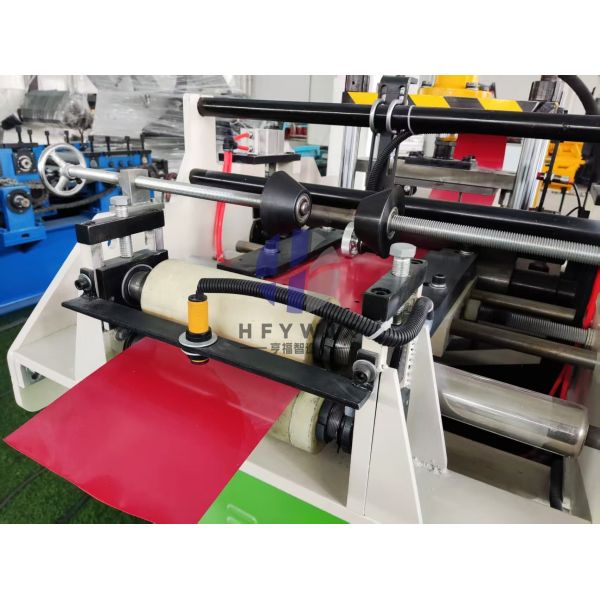

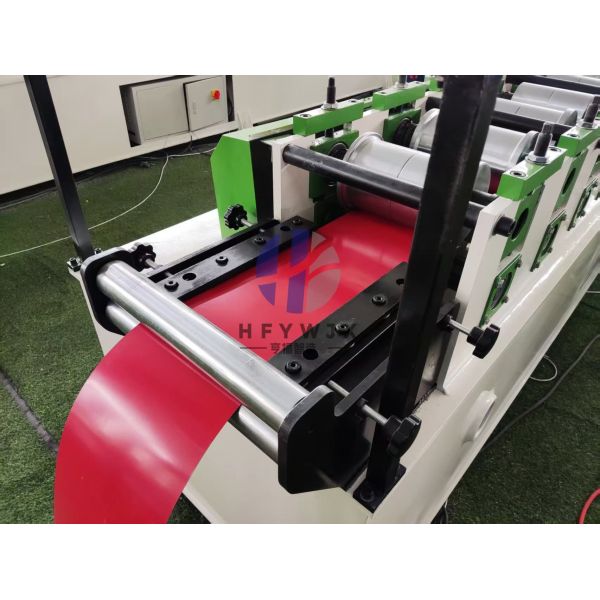

Material feeder Two-hand crank feeder with pull cutter
Transmission method Gear drive
Forming roller shaft 50mm solid shaft

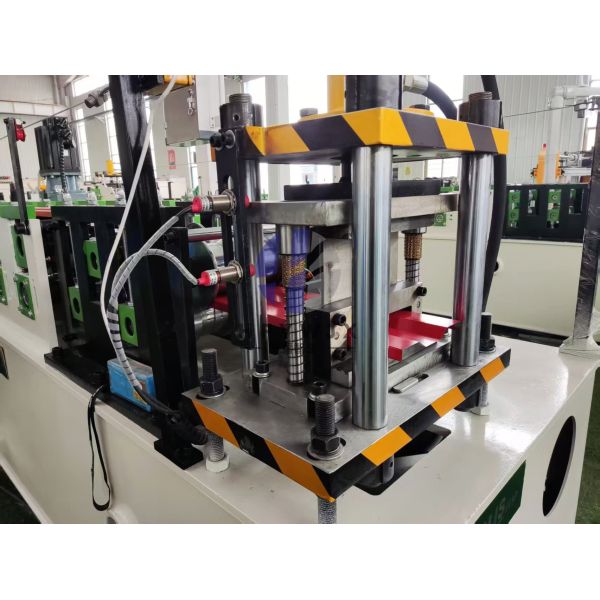

Cutting device type Hydraulic shears
Hydraulic pump power 4 kW
Tool material CR12 Mov, hardened to 58-62 kW
Punching Section Specifications
Frame Independent frame
Feeding device Servo feeder
Feeding motor power 1.5 kW (servo motor)
14 Rows Profile Roll Forming Machine For Continuous Operation High Speed M Shaped Cold Bending Equipment 14 Rows Profile Roll Forming Machine For Continuous Operation High Speed M Shaped Cold Bending Equipment 14 Rows Profile Roll Forming Machine For Continuous Operation High Speed M Shaped Cold Bending Equipment 14 Rows Profile Roll Forming Machine For Continuous Operation High Speed M Shaped Cold Bending Equipment 14 Rows Profile Roll Forming Machine For Continuous Operation High Speed M Shaped Cold Bending Equipment
Frequently Asked Questions
Can it be integrated into a complete color steel production line?
Yes, it can form a fully automated line covering uncoiling, leveling, roll forming, shearing, and stacking.
What's the delivery time?
Normally it takes about 45 days.
Can a laminating machine be added?
Yes, it allows for an integrated production line combining lamination and forming.
Can the machine produce stainless steel sheets? What are the requirements for the equipment?
Yes, it can; however, it requires reinforcing the forming frames, increasing the hardness of the rollers, and adjusting the forming process.
Is it normal for burrs to appear on the cut edges of the sheet metal after cutting?
Minor burrs are normal and acceptable; however, severe burrs are typically caused by a dull cutting blade or improper blade clearance.
