460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
Specifications
Model :
460 Ridge Tile Machine
Customization :
Customization
Transmission Mode :
Gear Transmission
Electronic Control System :
PLC
Place of Origin :
CHINA
Brand Name :
HENGFU
MOQ :
1 Piece
Packaging Details :
Plastic Film & Steel Wire Fixed
Delivery Time :
45Days
Payment Terms :
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Description

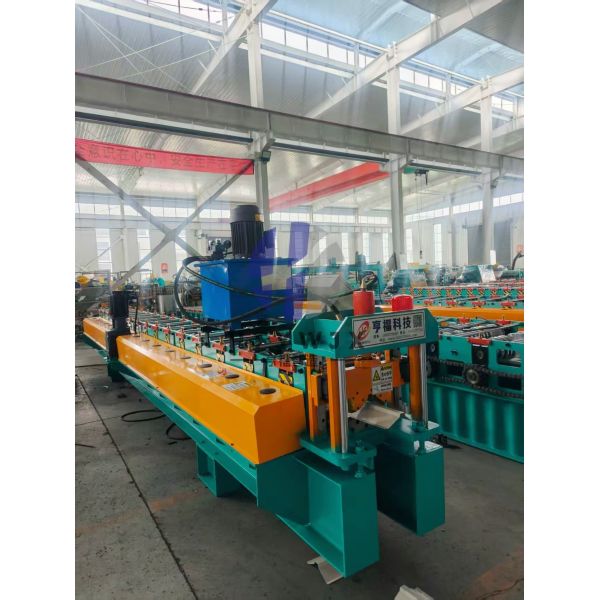

460 Ridge Cap Roll Forming Machine - Automatic Metal Roofing Ridge Tile Making Machine
Product Overview

The 460 Ridge Cap Roll Forming Machine is a high-performance solution specifically designed for the production of metal roofing ridge caps. It is widely used in roofing sheet manufacturing industries and is suitable for producing various ridge tile profiles with high precision and consistency. With its advanced design and robust construction, this machine ensures stable operation and long-term reliability.

The machine is built with a heavy-duty steel frame and reinforced side plates, providing excellent rigidity and vibration resistance during high-speed production. The forming rollers are manufactured from high-grade 45# steel, processed with precision machining and finished with hard chrome coating to enhance wear resistance and extend service life.

Key Features
  • Servo motor drive system for smooth transmission and accurate control
  • Production speed: 10-20 meters per minute
  • Hydraulic cutting system with precise length control (≤2 mm tolerance)
  • Industrial PLC with user-friendly touchscreen interface
  • Multiple language support (Chinese and Russian)
  • Real-time monitoring and parameter adjustment capabilities
  • Easy operation and maintenance
Technical Specifications
Component Specification
Infeed Platform Hand-cranked Feeding Stand (with Cutting Blade)
Frame Structure Welded 350H Steel; Wall-plate Type Construction
Wall Plate Thickness 14mm Carbon Steel Plate
Forming Stations 14 Rows
Main Shaft Diameter Ø70mm (Solid Shaft)
Shaft Material #45 Steel
Roller Material #45 Steel (Precision-turned, Chrome-plated, and Heat-treated)
Length Measurement Rotary Counter (with Linear Slider Bracket)
External Voltage 3-Phase 380V, 50Hz
Low-Voltage Electrical Components Limit Switches, Contactors, Relays, etc.
Product Gallery
460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine 460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine 460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine 460 Ridge Cap Roll Forming Machine High Speed Durable PLC Control Metal Roofing Ridge Tile Machine
Frequently Asked Questions
Q: What service can you provide before order?

A: We provide full pre-sales service, including answers to all your questions about our machines, such as technical parameters, price, payment terms, etc. If you would like to visit our factory and inspect the machines, we can send you an invitation letter and offer you our warmest welcome.

Q: Can you finish the machine during the delivery time?

A: We will complete production on time according to the confirmed lead time.

Q: Do you have after-sale support?

A: Yes, we have experienced technicians who can provide professional technical support and advice whenever you need.

Q: What is the difference between your machines and cheaper alternatives?

A: The machine frame is thicker and will not deform even after prolonged use. The rollers feature high precision, ensuring a standard and consistent panel profile. The cutting system is stable, guaranteeing precise length accuracy. It boasts a low failure rate and low maintenance costs. It offers a significantly longer service life.
