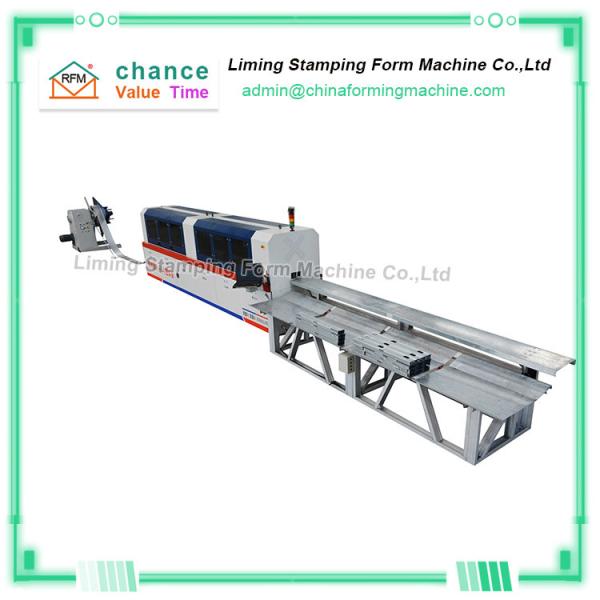

T0.6mm Light Gauge Steel Framing Machines SKD11 Blade
T0.6mm Light Gauge Steel Framing Machines SKD11 Blade
Specifications
Brand Name :
LIMING
Model Number :
LM-lLGS18
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Rolling thinckness: :
0.6-1.2MM
After Warranty Service: :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Length devitation: :
±0.75mm
Shaft material: :
High Grade No.45 Steel
Producting speed: :
300-700m/h
Design System: :
Australia Vertex BD
Usage: :
Building
Dimension(L*W*H): :
3m*1.3m*1.5m
Description

Low Cost And High Quality Light Steel Frame Villa Keel Forming Machine


Process flow of"Low cost and high quality light steel frame villa keel forming machine":

Hydraulic automatic uncoiling and leveling machine (two in one) automatic quick punching, high-speed forming, automatic coding, automatic cutting off automatic production line production.

"Low cost and high quality light steel frame villa keel forming machine"can choose batch/single production mode, stable operation and automatic production.

"Low cost and high quality light steel frame villa keel forming machine" adopts CNC precision processing, stable processing quality, high processing precision, reducing production time, and improving work efficiency.

The stamping dies of the "Low cost and high quality light steel frame villa keel forming machine"are all made of S45C tool steel and the core is made of D2 steel.

Technical parameters of Low Cost And High Quality Light Steel Frame Villa Keel Forming Machine

NO. Item Specification
1 Profile demension C89*38*9mm
2 Feeding width 174mm
3 Raw material G300-G550 GI/GL strip (G450 recommended)
4 Thickness range 0.6-1.2mm
5 Machine dimensions 4000*800*1100mm
6 Machine weight 2.5T
7 Forming method 9steps
8 Drive mode Gear + sprocket
9 Main motor 7.5kw servo motor
10 Roller ,puncher and cutting blade material SKD11
11 Main shaft material 40Cr
12 Forming speed 2700m/hour
13 Punch tolerance ±0.5mm
14 Cutting tolerance ±0.75mm
15 Hydraulic motor power 7.5kw
