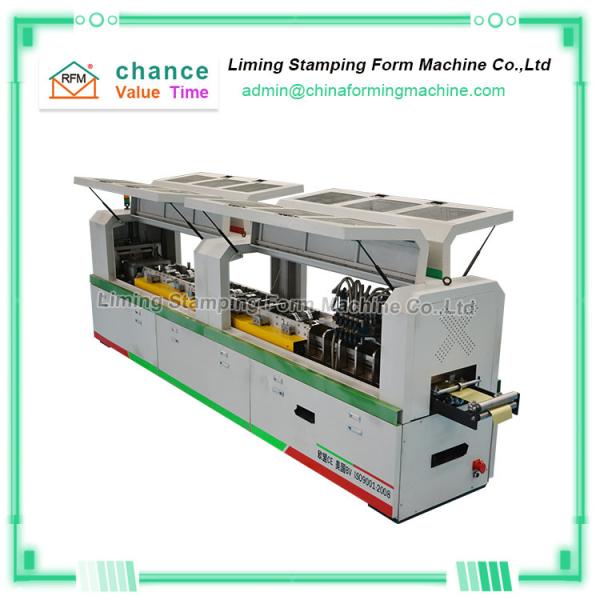

Max 1500m/H Light Gauge Steel Framing Machines 3.5T
Max 1500m/H Light Gauge Steel Framing Machines 3.5T
Specifications
Brand Name :
LIMING
Model Number :
LM-lLGS35
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Power: :
5.5kw
Applicable Industries: :
Building Material Shops, Manufacturing Plant, Construction works
Cutting blade material: :
SKD11 vacuum heatreadment 58-62hrc
Warranty of core components: :
2 years
drywall coil thickness: :
0.2mm-0.8mm
Design System: :
Vertex BD
Weight: :
3.5T
Work Pressure: :
12-16Mpa
Description

High-Speed Multi-Story Building Light Steel Design House Calender

Only the profiles produced by the "High-speed multi-story building light steel design house calender" are enough to build all the components of the walls, floors and roofs required by ordinary houses.

"High-speed multi-story building light steel design house calender" also has the following four characteristics:

1. "High-speed multi-story building light steel design house calender" continuous cutting, high production efficiency

2. "High-speed multi-story building light steel design house calender" no waste, no material loss

3. "High-speed multi-story building light steel design house calender" has fast induction speed and more precise cutting

4. "High-speed multi-story building light steel design house calender" has good high-speed performance and stable operation

Technical parameters of High-Speed Multi-Story Building Light Steel Design House Calender

Size 89*41mm or 140*38mm
Thickness 0.6-1.2mm(G300-G550 Galvanzied coils and Aluzinc )
Feeding width 182mm
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 5.5kw Servo motor
Power supplier 380V 50Hz 3phases according to your request
Hydraulic station 7.5kw Siemens Motor
Hydraulic tank capacity 100L
Hydraulic cooling Fan cooling
Hydraulic pressure Manually set
Host cordless remote control Standard
Frame and punching dies Screw hole, chamfer, 15mm web hole, flange cut, 35mm pipe hole, suspension, cutting,
Product accuracy+- 0.5mm
CNC inkjet-printer Video Jet
Size 4700*950*1200mm
Weight 5000kg
Color according to your request
De-colier bearing 2 tonne, automatical decoiler
