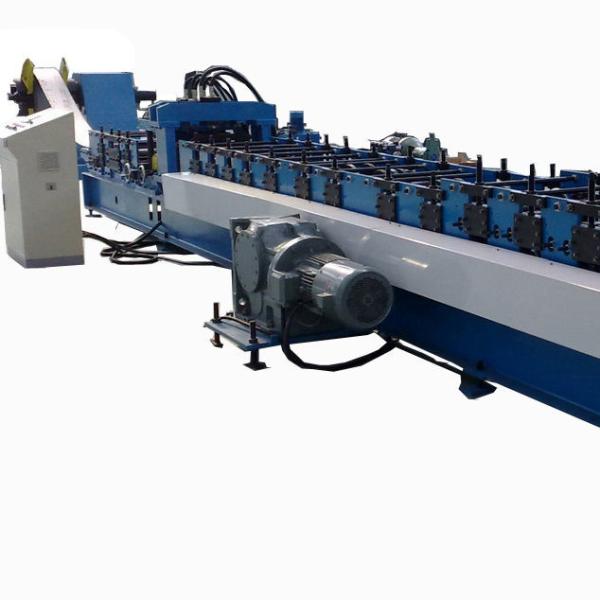

Automatic Adjustable CZ Purline Cold Roll Forming Machine
Automatic Adjustable CZ Purline Cold Roll Forming Machine
Specifications
Brand Name :
Gracias
Model Number :
C/Z
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
As discussion
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
25sets per month
Delivery Time :
30-50 work days
Packaging Details :
as customer's request
Condition :
New
Type :
Steel Frame & Purlin Machine,c plus z design cz purlin roll form machine
Voltage :
380V/50HZ 3Phase
Production capacity :
10-20m/min
Use :
C&Z
Warranty :
1 Year
After-sales service provided :
Online support,Video technical support
Control system :
PLC touch/button screen
Description

Automatic Adjustable CZ Purline Cold Roll Forming Machine

C Z purlin forming machine can be designed with Z , that is CZ purlin forming machine, with different sizes of 100-300mm, three sets of punching, and raw material thickness of 1.5-3.0mm, which basically meets the needs of different purlins on the market.or only C purlin machine from 3 inch to 10 inch, or punch holes or what thickness of raw material.

Technical parameters :

NO. ITEM PARAMETER
1 Material type GI,PPGI
Width 190-420mm
thickness 0.5-3mm
Yield stress 350-550Mpa
2 Product Cover width 80-300mm
Wave height 80-300mm
Pitch width 40-80mm
3 Decolier Type Automatic with coil car
Suitable coil OD/ID 1200/250-508mm
Max coil width 1000mm
Max capacity 15T
4 Levelling parts roller Diameter:90mm
No.45 steel with quenching
Forming stand 18
5 Punching parts Type Hydraulic punching
Model material GCr12
6 Main machine Roller 90mm
GCr15 chrome plated
Main machine structure Guide column or wallboard
7 Power requirement Main motor 11.5kw
Hydraulic pump 5.5kw
