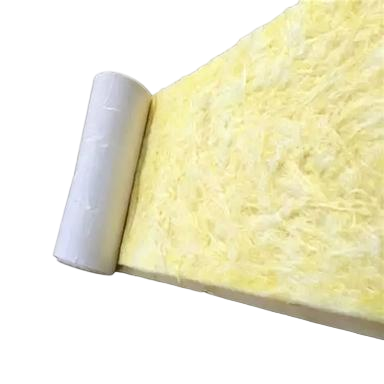

Insulation Glass Wool Blanket With WMP Facing HVAC Duct Wrap Insulation
Insulation Glass Wool Blanket With WMP Facing HVAC Duct Wrap Insulation
Specifications
Place of Origin :
china
Size :
40/50/60×1200×Length mm
Temperature Rating :
25℃
Payment Terms :
L/C,T/T
Facing Material :
WMP
Density :
24 kg/m3
Thermal Conductivity :
0.035 W/(m*K)
MOQ :
1 container.
Material Composition :
Glass wool with thermosetting resin
Description
Insulation Glass Wool Blanket with WMP Facing | HVAC Duct Wrap Insulation
Product Overview

This glass wool blanket with WMP facing is specifically engineered for HVAC duct insulation systems. Manufactured from premium glass through high-temperature melting and centrifugal spinning processes, it incorporates specialized thermosetting resin for optimal performance.

The white polypropylene (WMP) facing provides a clean, attractive appearance that can serve as a decorative surface, eliminating the need for additional finishing. The flexible blanket design conforms tightly to ducts of various shapes, making it particularly suitable for irregular configurations and space-constrained installations.

Applications
  • Insulation for exposed irregularly shaped HVAC ducts
  • Ventilation duct insulation in space-constrained areas
  • HVAC projects with high speed requirements
  • Duct systems requiring attractive surfaces and quick installation
Specifications
Model JHY-HV24-W
Density 24 kg/m³
Size 40/50/60×1200×Length (mm)
Face WMP
Thermal Conductivity (25℃) 0.035 W/(m·K)
Insulation Glass Wool Blanket With WMP Facing HVAC Duct Wrap Insulation
Key Features & Advantages
  • WMP Facing for Direct Exposure - Smooth white polypropylene surface eliminates need for additional finishing
  • Excellent Condensation Prevention - Effectively stops condensation from forming
  • Flexible Design for High Adaptability - Conforms tightly to ducts of various shapes
  • High Installation Efficiency - Custom lengths for quick wrap application
  • Low Thermal Conductivity for Energy Efficiency
  • Acoustic Absorption Reduces Duct Noise
