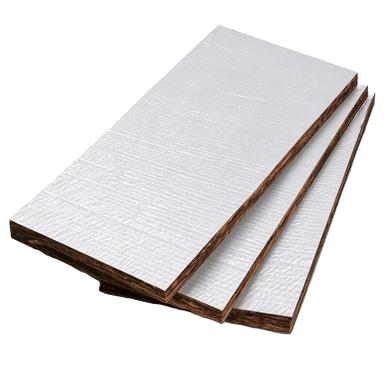

Eco Friendly Insulation Glass Wool Board With FSK Facing Green Building HVAC Duct Wrap Insulation
Eco Friendly Insulation Glass Wool Board With FSK Facing Green Building HVAC Duct Wrap Insulation
Specifications
MOQ :
1 container.
Facing Material :
FSK
Thermal Conductivity :
0.034/0.033 W/(m*K)
Density :
32/48 kg/m3
Material Composition :
Glass wool
Formaldehyde Emission :
Non-Detectable
Place of Origin :
china
Payment Terms :
L/C,T/T
Size :
30/40/50/60×600×1200 mm
Description
Eco-Friendly Insulation Glass Wool Board with FSK Facing | Green Building HVAC Duct Wrap Insulation
Product Overview

This eco-friendly glass wool board with FSK facing is specially designed for green building HVAC duct insulation systems. It is manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and the application of a formaldehyde-free specialized thermosetting resin. It features a composite FSK (Foil-Scrim-Kraft) facing, providing excellent moisture resistance, mechanical reinforcement, and thermal reflectivity.

Specifically engineered for green building HVAC duct wrap insulation, it offers zero formaldehyde emissions, meeting the stringent indoor air quality requirements of green buildings. The rigid board form ensures a smooth, aesthetically pleasing surface after installation, while the FSK facing provides excellent condensation prevention, effectively stopping condensation from forming. The boards feature precise dimensions for easy on-site cutting and installation.

Applications
  • HVAC duct insulation for LEED, WELL, and green building certification projects
  • Commercial buildings with strict indoor air quality requirements
  • HVAC systems in hospitals, schools, and other public buildings
  • Exposed ductwork projects requiring environmental performance and aesthetic surfaces
Specifications
Parameter Unit JHY-GHV32-F JHY-GHV48-F
Density kg/m³ 32 48
Size mm 30/40/50/60×600×1200 30/40/50/60×600×1200
Face -- FSK FSK
Thermal Conductivity (25℃) W/(m·K) 0.034 0.033
Formaldehyde Emission mg/m³ Non-Detectable Non-Detectable
Eco Friendly Insulation Glass Wool Board With FSK Facing Green Building HVAC Duct Wrap Insulation
Feature Advantages
✅ Formaldehyde-Free - Uses formaldehyde-free resin for healthy indoor environments
✅ FSK Facing for Excellent Condensation Prevention - Effectively stops condensation from forming
✅ Smooth, Aesthetic Surface After Installation - Rigid board form ensures clean duct appearance
✅ Low Thermal Conductivity for Energy Efficiency
✅ Precise Dimensions for Easy Installation
✅ Acoustic Absorption Reduces Duct Noise
