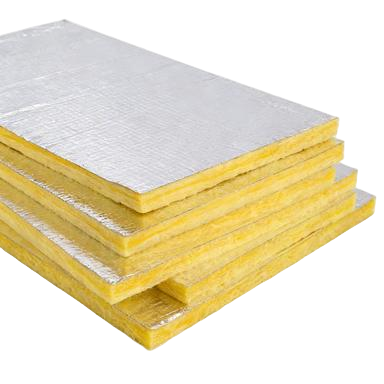

Insulation Glass Wool Board With FSK Facing HVAC Duct Wrap Insulation
Insulation Glass Wool Board With FSK Facing HVAC Duct Wrap Insulation
Specifications
Payment Terms :
L/C,T/T
Thermal Conductivity :
0.034 W/(m·K), 0.033 W/(m·K)
Place of Origin :
china
Density :
32 kg/m3, 48 kg/m3
Material Composition :
Glass wool with thermosetting resin
Form :
Rigid board
Facing Material :
FSK
MOQ :
1 container.
Size :
30/40/50/60*600*1200 mm
Description
Insulation Glass Wool Board with FSK Facing | HVAC Duct Wrap Insulation
Product Overview

This product is a glass wool board with FSK facing, specially designed for HVAC duct insulation systems. It is manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and the application of a specialized thermosetting resin. It features a composite FSK (Foil-Scrim-Kraft) facing, providing excellent moisture resistance, mechanical reinforcement, and thermal reflectivity.

Specifically engineered for HVAC duct wrap insulation, the rigid board form ensures a smooth, aesthetically pleasing surface after installation, while the FSK facing provides excellent condensation prevention, effectively stopping condensation from forming. The boards feature precise dimensions for easy on-site cutting and installation.

Applications
  • Central HVAC duct insulation in commercial buildings
  • Ventilation duct insulation in industrial facilities
  • HVAC systems with strict condensation prevention requirements
  • Exposed ductwork projects requiring aesthetically pleasing surfaces
Technical Specifications
Parameter Unit JHY-HV32-F JHY-HV48-F
Density kg/m³ 32 48
Size mm 30/40/50/60×600×1200 30/40/50/60×600×1200
Face -- FSK FSK
Thermal Conductivity (25℃) W/(m·K) 0.034 0.033
Insulation Glass Wool Board With FSK Facing HVAC Duct Wrap Insulation
Feature Advantages
FSK Facing for Excellent Condensation Prevention – Effectively stops condensation from forming
Smooth, Aesthetic Surface After Installation – Rigid board form ensures clean duct appearance
Low Thermal Conductivity for Energy Efficiency
Precise Dimensions for Easy Installation
Lightweight, No Additional Duct Load
Acoustic Absorption Reduces Duct Noise
