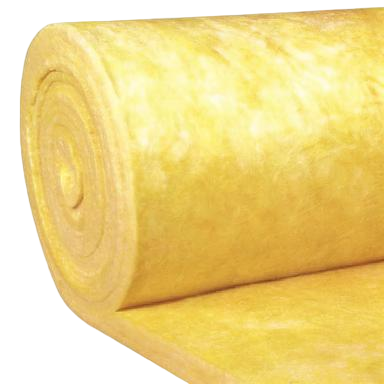

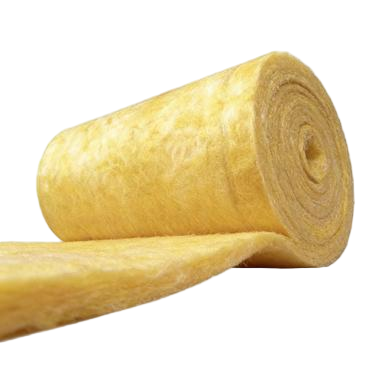

Insulation Glass Wool Blanket Class A Curtain Wall Backing Insulation
Insulation Glass Wool Blanket Class A Curtain Wall Backing Insulation
Specifications
Material :
Glass wool
Face Type :
Unfaced
Payment Terms :
L/C,T/T
Combustibility :
Class A
Size :
50/75/100×1200×Length mm
MOQ :
1 container.
Thermal Conductivity :
0.037/0.035 W/(m*K)
Density :
16/24 kg/m3
Place of Origin :
china
Description
Insulation Glass Wool Blanket | Class A | Curtain Wall Backing Insulation
Product Description

This product is a glass wool blanket specially designed for curtain wall insulation systems. Manufactured from high-quality glass through high-temperature melting, centrifugal spinning, and specialized thermosetting resin application, it is available in unfaced form specifically engineered for curtain wall backing insulation.

The flexible blanket fills irregular cavities between curtain wall panels and the main structure, adapting to complex structural configurations to ensure continuous insulation without voids. Customizable lengths reduce on-site splicing and material waste while achieving Class A non-combustible rating for reliable fire safety protection.

Applications
  • Backing insulation for glass, stone, and metal curtain walls
  • Building projects with complex structural configurations behind curtain walls
  • Curtain wall projects requiring high continuity of insulation layers
  • Curtain wall projects for various public buildings
Specification
Parameter Unit JHY-FG16 JHY-FG24
Density kg/m³ 16 24
Size mm 50/75/100×1200×Length 50/75/100×1200×Length
Face -- Unfaced Unfaced
Combustibility -- Class A Class A
Thermal Conductivity (25℃) W/(m·K) 0.037 0.035
Insulation Glass Wool Blanket Class A Curtain Wall Backing Insulation
Feature Advantages
✅ Class A Non-Combustible - Does not burn, melt, drip, or produce smoke
✅ Flexible Design for High Adaptability - Fills irregular cavities, ensures continuous insulation
✅ Low Thermal Conductivity - Stable thermal performance
✅ Lightweight & Easy to Install
✅ Custom Lengths to Minimize Waste
✅ Excellent Resilience, Resists Settling
✅ Acoustic Absorption Improves Indoor Environment
