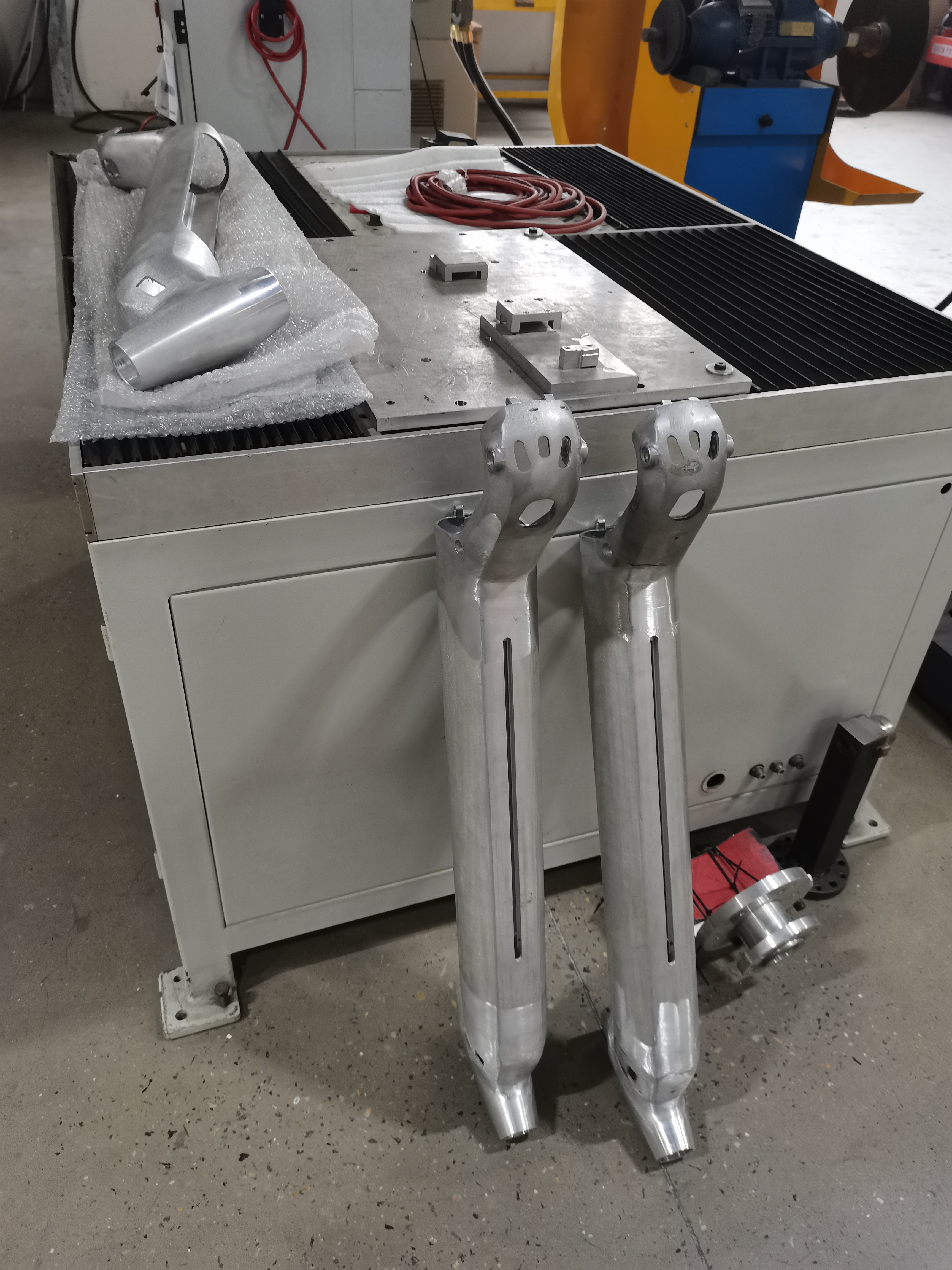

Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Specifications
Model Number :
KS-20000
Processing Types :
Metal Automatic
MOQ :
1
Delivery Time :
90 WORKING DAYS
Materialcompatibility :
Metal, Plastic, Composite
Durability :
Long-lasting Performance
Price :
65000-98000 USD
Relative Humidity :
<90%
Process :
Robotic Polishing and Brushing
Certification :
CE
Low Maintenance :
Requires Minimal Maintenance
Payment Terms :
T/T,D/P,D/A,L/C
Type :
Polishing machine
Color :
yellow,blue or as customer required
Power Supply :
Electric
Application Industy :
Hardware industry , Household Goods ect.
Place of Origin :
CHINA
Speed :
High Polishing Speed
Supply Ability :
200-300 SETS PER YEAR
Weight :
350 kg
Compact :
Small And Space-saving Design
Brand Name :
KINGSTONE
Efficiency :
High Efficiency
Packaging Details :
WOODEN CASES
Voltage :
220V/380V
Description
Constant-Pressure Robotic Polishing Machine For Car Mount
Car mounts look simple, but they are plating-critical parts. A phone mount, dash mount or antenna base is die-cast, then chrome- or anodized — and any scratch, flash line or inconsistent prep on the raw casting shows up as a rejected plating job. Our constant-pressure robotic polishing cell is built for exactly this class of work: multi-SKU die-cast parts that need flash removal, edge deburring and a uniform prep surface before finishing. Closed-loop pressure holds contact force steady across the whole part, so the surface that enters the plating line is identical part after part — and your plating yield stops being a gamble.
Integrated Flash Removal & Deburring
Die-cast mounts arrive with flash, parting lines and sprue marks — all of which become plating defects if missed. The cell removes them in the same cycle as the polish: constant-pressure wheels take off flash and parting-line burrs, then blend the surface to a uniform prep finish. No separate deburring step, no hand bench.
  • Flash & parting-line removal integrated in the polishing cycle
  • Edge deburring on holes, slots & mounting lugs
  • No secondary hand-touch before the plating line
Constant Pressure Robotic Polishing Machine For Precision Car Mount Surface Finishing
Precision Pressure Control
The risk with car mounts is over-polishing: thin section, soft zinc alloy, one heavy pass and you've burned through the skin. Constant-pressure control caps the contact force, so thin walls and detailed faces get the same light, even pass as the flat faces. The result is a predictable prep surface — and predictable plating adhesion.
  • Closed-loop ±0.5 N pressure limit
  • Consistent prep surface → plating yield improvement
  • No over-polish burn-through on thin die-cast sections
Multi-SKU Flexibility
A mount factory usually runs 20-50 SKUs: dash, vent, magnetic, mirror, antenna bases. One cell handles them all with quick-change fixtures and a program library — switch SKU in under 15 minutes, no mechanical retooling.
  • Quick-change fixture plate per SKU family
  • Program library: teach once, run every batch
  • Mixed-model scheduling for small-batch, many-SKU production
Material-Specific Process Optimization
Zinc die-cast (Zamak) is soft and needs lighter pressure, finer abrasives and a gentler path than steel. Our application team pre-programs a zinc-alloy process package: pressure limits, wheel speeds and abrasive grades matched to Zamak 3 / 5 — so you don't tune it yourself.
  • Pre-tuned process package for Zamak 3 / 5
  • Aluminum & stainless mount options supported
  • Consumables selected per material & surface (satin / brushed / prep)
Frequently Asked Questions
Can it handle many different mount SKUs on one machine?
Yes. The cell uses quick-change fixture plates and a program library. Switching from a dash mount to a vent mount takes under 15 minutes — no mechanical retooling, just a fixture plate swap and program call.
Zinc die-cast is soft — will polishing damage thin sections?
No. Constant-pressure control caps the contact force at a pre-set limit, so thin walls and detailed faces receive the same light, even pass as flat areas. Over-polish burn-through is prevented by design, not by operator skill.
Do we still need a separate deburring step for flash and parting lines?
No. Flash and parting-line removal is integrated into the polishing cycle. Parts leave the cell deburred and prepped — ready for the plating line.
What surface should parts have before chrome plating?
For most zinc die-cast car mounts, a uniform satin prep at Ra 0.1-0.3 µm gives the best plating adhesion and appearance. We tune the process package to your target and validate on your actual parts.
How long does it take to set up a new mount model?
A new SKU is programmed offline in 1-2 days, including fixture design. For your first 5 SKUs we provide the fixture and program as part of the turnkey package.
Can we send samples for a trial before ordering?
Yes. Send 5-10 representative parts and we run a free trial in our application lab — you receive finished, plating-ready samples plus cycle-time and yield data for your evaluation.
