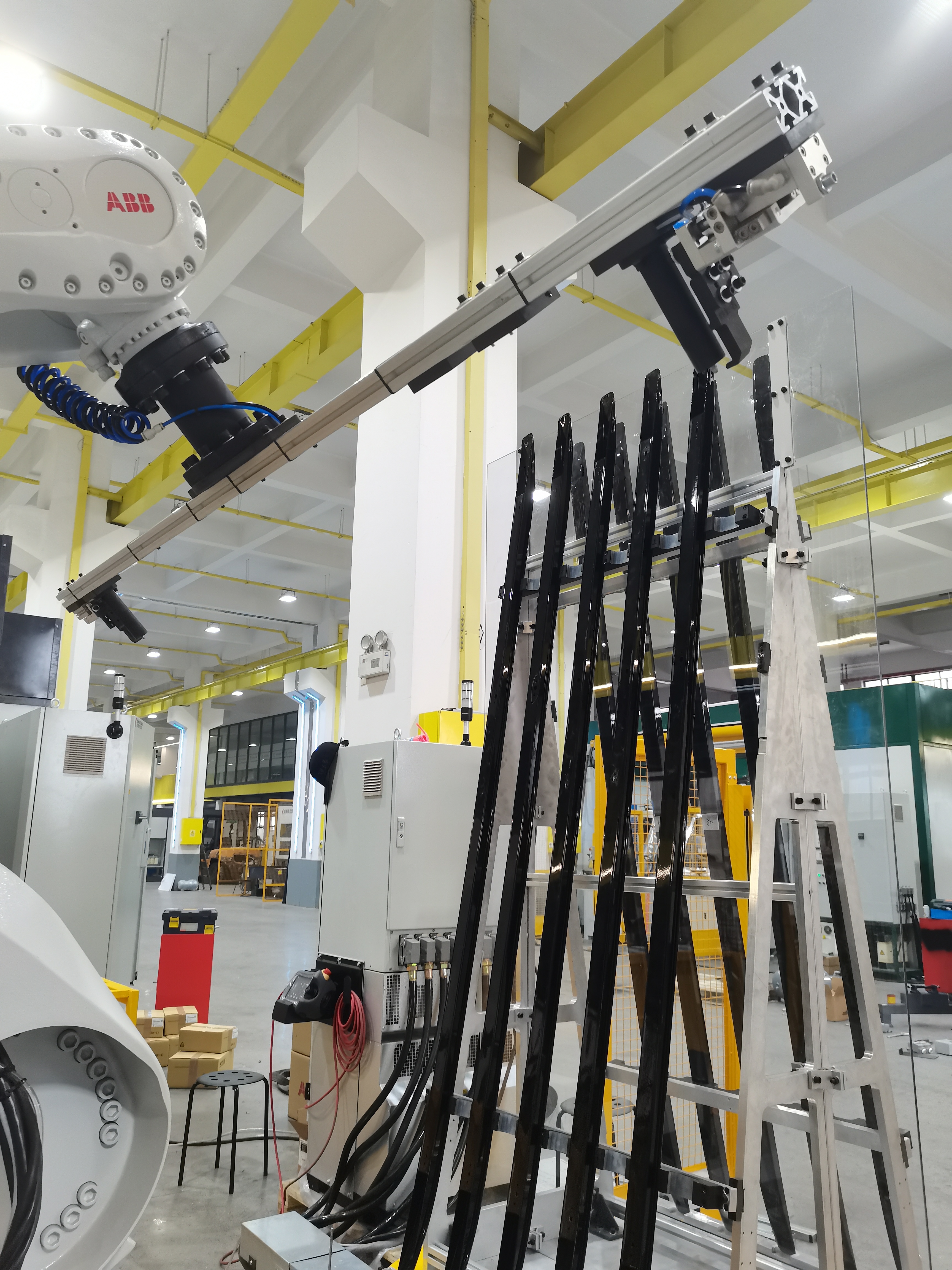

Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Specifications
Model Number :
KS-CNC2
Durable :
Long-lasting
MOQ :
1
Delivery Time :
90 WORKING DAYS
Low Maintenance :
Saves Cost
High Precision :
0.02mm
Price :
65000-98000 USD
San Belt Dimensions :
3000mmx4
Precise Control :
Consistent Results
Certification :
CE
Automatic :
Reduces Manual Labor
Payment Terms :
L/C,D/A,D/P,T/T
Maxworkpiecesize :
500 x 500 x 300 mm
Condition :
New
Compact :
Saves Space
Productname :
Robotic Deburring Machine
Supply Ability :
200-300 SETS PER YEAR
Maxworkpieceweight :
20 kg
High Productivity :
Increases Output
Brand Name :
KINGSTONE
Current :
220V
Packaging Details :
WOODEN CASES
Process :
Robot Deburring
Place of Origin :
CHINA
Consumables :
Floating Milling Cutter / Floating File
Description
Force-Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
One Continuous Pass. Zero Hand-Over Marks. End-to-End Consistency.

A force-controlled robotic finishing cell purpose-built for automotive exterior trim strips — door trims, beltline/window mouldings, side sills and roof rails. Deburr cut edges, brush satin textures and mirror-polish chrome-look surfaces on strips up to ___ mm long, with texture consistency your OEM inspector can trust.

CE-certified / ISO 9001 factory
Free trial with before/after report
OEM-grade 45° light inspection criteria
The Problem We Solve

Automotive exterior trim is judged by eye — under a 45° inspection light, every brush line, every mirror reflection, every cut edge is visible. Hand finishing long strips creates the three defects OEM buyers reject: hand-over marks where passes meet, texture drift along the length, and inconsistent edge deburring on cut ends. This cell replaces hand benches with a force-controlled robot on a long-stroke track, delivering one continuous, repeatable finish pass on every strip — straight or curved, satin or mirror.

Core Capabilities
Precision — Force-Controlled Precision
  • Real-time force control (±___ N) keeps contact pressure constant
  • ±0.01 mm path repeatability — identical texture from strip #1 to strip #10,000
  • Programmed pass speed eliminates hand-over zones
Automation — Fully-Automatic
  • Long-stroke linear track (7th axis, up to ___ mm) — one continuous pass per strip
  • Optional loading/unloading conveyor or robotic handling
  • PLC-ready for MES data collection and batch traceability
Performance — High-Efficiency
  • Cycle example: 1.2m door trim strip, deburr + satin brush ≤ ___ seconds
  • 3-4x faster than hand benches
  • Predictable shift output for JIT supply
Process Capability — Multi-Finish
  • Three finishes in one cell: edge deburring, satin brushing, mirror polishing
  • Curved and straight profiles from the same program library
  • Changeover < 15 minutes
Quality Consistency — OEM-Grade
  • Meets 45° light-inspection acceptance criteria
  • Uniform texture direction and gloss — repeatable lot after lot
  • First-article report + batch traceability for PPAP documentation
User-Friendly — Easy-to-Operate
  • Touchscreen HMI, bilingual (EN/CN)
  • Offline programming with simulation
  • Quick-change abrasive belts and buffing wheels
Economy — Cost-Effective
  • Replaces 2-3 hand-finishing operators per shift
  • Abrasive cost reduced 30%+
  • Typical payback 18-24 months
Force Controlled Robotic Deburring Machine For Automotive Exterior Trim Strips
Process Flow
1
Load strip onto long-stroke fixture (magnetic or vacuum clamp)
2
Call up the program for that trim profile and finish spec
3
Edge deburring: chamfer cut ends and flash edges (LR-TRIM)
4
Satin brushing: programmed linear texture, direction locked (LR-SAND)
5
Mirror polishing: force-controlled buffing to target gloss (LR-POLISH)
6
In-line 45° light inspection (optional camera/operator check)
7
Unload to packaging line
Frequently Asked Questions
Product Basics
Can the robot finish curved trim strips, not just straight ones?
Yes. The 6-axis arm follows programmed arcs; the linear track extends the reach. Curved beltline mouldings and straight door trims run from the same machine.
Satin brushing and mirror polishing — do I need two machines?
No. The finishing head is swappable (abrasive belt / buffing wheel) and programs switch the finish spec. One cell covers deburring, satin and mirror.
How long can the strips be?
Standard track handles up to ___ mm; longer lengths are available by custom build. One continuous pass means no hand-over marks on any length.
Purchase Decision
Do you offer a free trial on our trim strips?
Yes. Send us your strips or 3D profile — we finish them and return a before/after report with surface roughness and gloss data.
Can it meet OEM 45° light inspection requirements?
That is the design target. The process is built around uniform texture and gloss; we support you with acceptance criteria documentation and first-article reports.
What about delivery time and warranty?
Standard cells ship in about ___ days; 12-month warranty with remote support, optional on-site installation and operator training.
Investment & Long-Term
What is the payback period?
Typically 18-24 months depending on labor cost and output. We provide a free ROI sheet using your actual numbers.
Is training and ongoing support available?
Yes — operator training (on-site or video), offline programming support, lifetime remote technical support, and long-term consumable supply.
