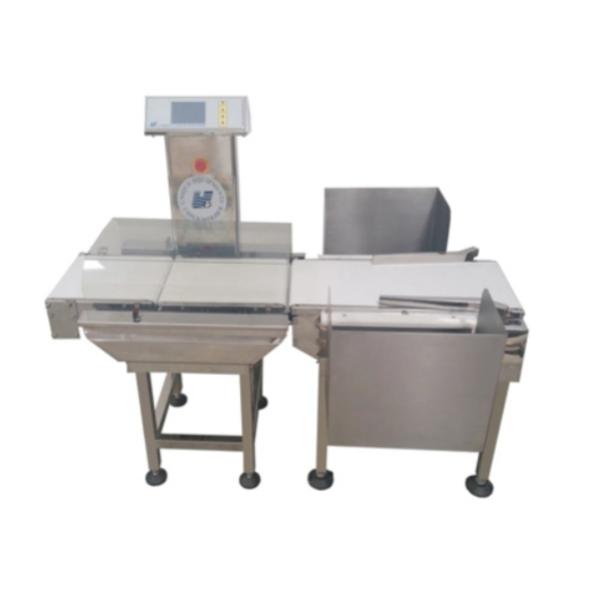

Checkweigher Combinations with Metal Detection
Checkweigher Combinations with Metal Detection
Specifications
Model Number :
Advanced Checkweigher Solutions
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Checkweigher Combinations with Metal Detection
Detection Sensitivity :
0.3-2.0mm (Fe), 0.5-2.5mm (Non-Fe), 0.8-3.0mm (SS)
Frequency Options :
Single (50-1000kHz) or Multi-Frequency (5-1000kHz)
Aperture Size :
150mm × 150mm to 600mm × 600mm
IP Rating :
IP65 to IP69K for washdown environments
Weighing Accuracy :
±0.05g to ±5g (product-dependent)
Maximum Capacity :
5g to 50kg
Weighing Speed :
100-800 products/minute
Minimum Division :
0.01g to 10g
Weighing Time :
50-200ms
Diverter Gate :
≤350ppm
Pneumatic Blow-off :
≤600ppm
Pusher Arm :
≤400ppm
Retracting Belt :
≤250ppm
Description

Checkweigher Combinations with Metal Detection


Combined checkweigher-metal detection systems represent the pinnacle of production line quality control, merging two essential inspection technologies into a single, space-saving unit. These advanced systems simultaneously

verify product weight compliance while screening for metallic contaminants - from tiny metal fragments to larger foreign objects.


Integrated System Architecture

  • Unified Frame Design: Single stainless steel (typically 304 or 316 grade) housing containing both systems

  • Sequential Inspection Process:

    1. Initial Product Scanning: Metal detection occurs first to prevent contaminated products from affecting weight measurements

    2. Precision Weighing: Dynamic weighing cell captures exact product mass

    3. Automated Sorting: Dual-rejection capability for both weight and contamination failures


Parameter Specification
Detection Sensitivity 0.3-2.0mm (Fe), 0.5-2.5mm (Non-Fe), 0.8-3.0mm (SS)
Frequency Options Single (50-1000kHz) or Multi-Frequency (5-1000kHz)
Aperture Size 150mm × 150mm to 600mm × 600mm
IP Rating IP65 to IP69K for washdown environments
Weighing Accuracy ±0.05g to ±5g (product-dependent)
Maximum Capacity 5g to 50kg
Weighing Speed 100-800 products/minute
Minimum Division 0.01g to 10g
Weighing Time 50-200ms
Diverter Gate ≤350ppm
