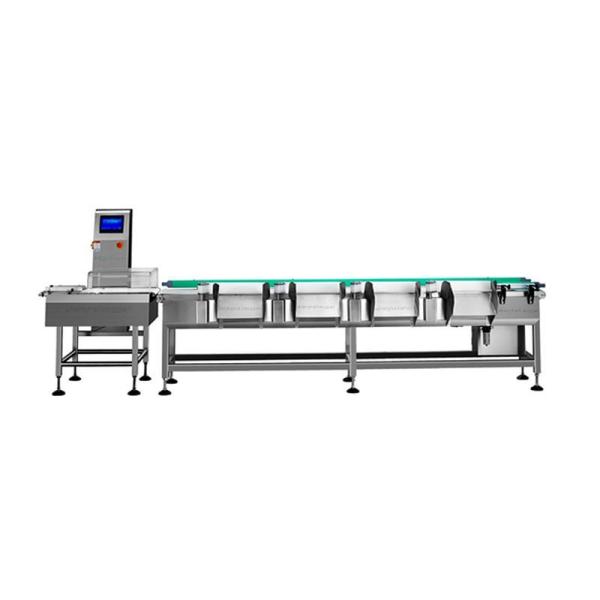

Precision Checkweighers for Automotive Component Manufacturing

Overview

Precision checkweighers in automotive manufacturing ensure strict weight tolerances for critical components like fasteners, bearings, pistons, and electronic parts. These systems verify production consistency, detect missing components, and prevent assembly line defects while integrating with Industry 4.0 smart factories.

Key Features & Technical Specifications

1. Ultra-Precise Weighing for Critical Tolerances

• Weighing Range: 0.01g – 20kg (covers screws, gaskets, sensors, and small assemblies)

• Accuracy: ±0.005g (for micro-components) to ±0.1g (for larger parts)

• Throughput: 200-400 parts/minute (high-speed models available)

• Dynamic Compensation: Vibration & motion filtering for unstable conveyors

2. Robust Industrial Design

• Heavy-Duty Construction: Powder-coated steel or stainless steel (IP54/IP65)

• Impact-Resistant Load Cells: With overload protection

• Modular Design: Easy integration with existing production lines

3. Automated Sorting & Rejection

• Rejection Methods:

  • Pneumatic pushers (for small parts)

  • Servo-driven arms (for delicate components)

  • Conveyor diverters (for bulk sorting)

• Sorting Logic:

  • Weight-based classification (accept/underweight/overweight)

  • Missing part detection (0% weight = empty package alert)

4. Smart Data Integration (Industry 4.0)

• Real-Time SPC (Statistical Process Control):

  • Tracks Cp/Cpk for process capability

  • Alerts for trends outside 6σ limits

• ERP/MES Connectivity:

  • OPC UA, MQTT, or REST API for SAP, Siemens, Rockwell systems

  • Cloud-based dashboards (AWS IoT, Azure)

• Traceability & Reporting:

  • Barcode/QR scanning for batch tracking

  • Automated PDF/CSV reports for audits

5. Customizable for Automotive Applications

• Fastener Production: Verifies weight consistency of bolts/nuts

• Electronic Components: Detects missing chips/capacitors in assemblies

• Powder Metallurgy: Checks sintered part densities via weight

• Lubricants & Greases: Ensures proper filling in cartridges

Conclusion

Precision checkweighers are critical QC tools in automotive manufacturing, ensuring zero-defect production

while enabling smart factory data analytics. By combining micro-accuracy, high-speed sorting, and IoT connectivity, they help maintain Six Sigma quality standards in weight-sensitive applications.
