10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
Specifications
Brand Name :
Visbull
Model Number :
CT18-7B
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Mini Excavator
Operation weight :
1760KGS
Engine :
Yanmar
Rated engine power :
16kw
Working pressure :
20 Mpa
Max. digging reach :
3720 mm
Max. digging depth :
2100mm
Max. digging height :
3150 mm
Description

Japanese Yanmar 3NTV82A diesel engin Excavator Working Pressure 20kpa

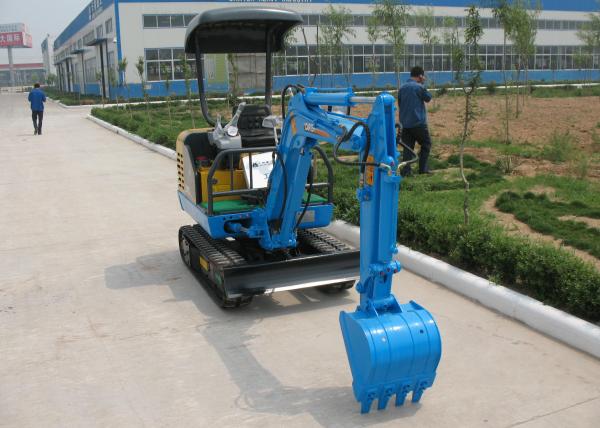

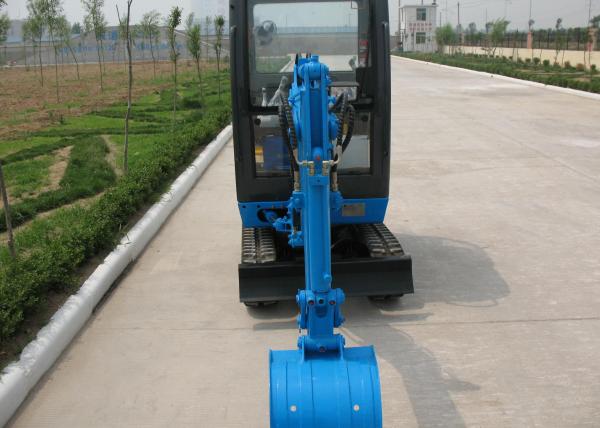

CT18-7B Crawler Excavators

Originally imported Japanese Yanmar 3NTV82A diesel engine

In conformity with the EU III emission control regulations Imported hydraulic components,

guarantee for 3 yrs under normal use and maintenance ,

South Korea made gasoline tank On-line digital monitoring and control system GPS satellite position(optional)and remote diagnose system(optional) Rubber pedrail(optional, or steel pedrail), no damage to the ground of road full opened engine hood and easy up-forward-lifted cab Cold&warm air conditioner(optional)

SPECIFICATIONS

Operating weight 1.760 ton
Travel speed 2.15/3.83km/h
Bucket Capacity 0.05/0.06m3(SAE)
Tracking force 11.54kn
Engine power 16KW/2.200RPM
gradeability 30°(58%)
Swing speed 10.9RPM
Bucket digging force 11.44 kn
Ground Pressure 29KPa
Arm digging force 8.04 kn

Dimensions

Upperstructure width 1050 mm
Undercarriage width 1080 mm
Overall Height with cabinet 2455 mm
Rear swing radius 1200 mm
Clearance under counter weight 467 mm
Tumbler Distance 1185 mm
Ground clearance 212 mm
Overall length for transportation 3790 mm

working range

MAX digging radius 3720 mm
MAX digging radius at ground lever 3640 mm
MAX digging depth 2100 mm
MAX digging height 3150 mm
MAX dumping height 2070 mm
MAX dozer cutting depth 190 mm
MAX dozer lifting height 210 mm

HYDRAULIC SYSTEM

MAIN PUMP TYPE
AXIAL PISTON PUMP & GEAR PUMP
CONSTANT POWER VARIABLE DISPACEMENT WITH GEAR PUMP OVERRIDE CONTROL
FLOW/PRESSURE 45.8*2+37 l/MIN / 2.200 RPM / 21MPA
PILOT PUMP TYPE
GEAR PUMP
FLOW/PRESSURE 22*2 L/min / 2.200 rpm / 16 mpa
SWING MOTOR
ATTACHMENTS
over load pressure
BOOM / ARM / BUCKET 20 MPA

10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure

10.9RPM Swing Speed Heavy Equipment Excavator With 20 Mpa Working Pressure
