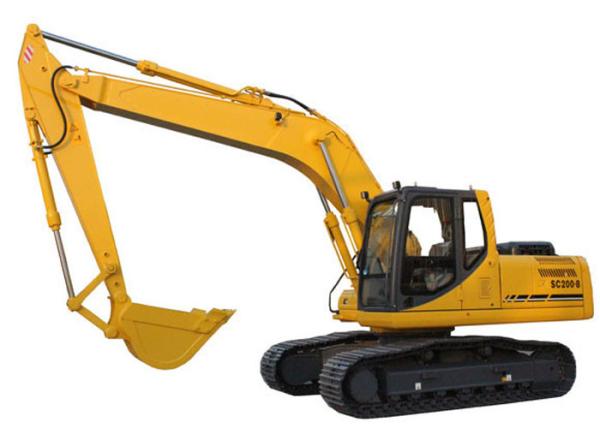

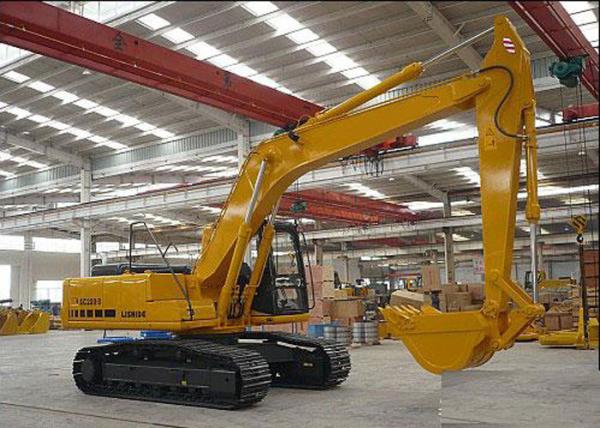

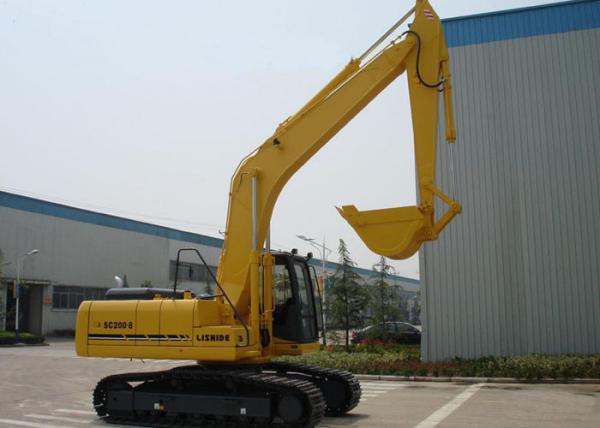

Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
Specifications
Brand Name :
Visbull
Model Number :
SC200.8
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Hydraulic Excavator
Operation weight :
20600KGS
Engine :
Cummins
Rated engine power :
108 kW
Max. bucket digging force :
112 KN
Max. digging reach :
9700 mm
Max. digging depth :
5980mm
Max. digging height :
9223 mm
Description

Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine

ItemUnitReference value
Engine (genuine and imported)
Model 6BT5.9-C
Type4-stroke, water cooling, inline, in-head valve, direct injection, turbo charged
Cylinder no. cylinder bore × strokemm6-102×120
Piston displacementL5.9
Rated output powerKw/rpm108/2100
Max. torqueN.M/rpm597/1600
Start motorKw24V,4.5
AlternatorA24V,4.5
Batteryv,Ah12,120×2
Carrying wheel(A)2
Standard working device
Standard boom SC210.7/SC210LC.7
Bucket capacitym3Scope 0.4-0.8
Rock bucket (option)m30.6
Dredging bucket (option)m30.8
Grading bucket (option)m2
Arm (standard device) SC210.7/SC210LC.7
Travel part
No. of supporting wheel on each side(A)7
No. of standard track board on each side 45
Track gaugemm2180
Track grounding lengthmm3260
Hydraulic system / control valve (Kawasaki)
Type KMX15R
Control method Hydraulic pilot type
Travel motor (KYB) Axial piston type (with brake valve and parking brake)×2
Slewing motor (Kawasaki) Axial piston type (with brake valve and parking brake) ×1
Hydraulic system / hydraulic pump (Kawasaki)
Type × no.l/minVariable displacement pump
FlowL/minPiston type:214×2
Set pressure(Mpa)(Kg/cm2)Piston type:34.8(355)
Hydraulic system / hydraulic cylinder (Reciprocating piston type)
Boom cylinder 120×85
Arm cylinder 135×95
Bucket cylinder 115×80
A Overall length (in transportation)(mm)9423
B Overall width(mm)2780
C Overall height (in transportation)(mm)3165
D Body overall height ( cab top)(mm)2940
E Clearance of super structure(mm)1064
F Min clearance(mm)468
G Rear slewing radius(mm)2720
H Track grounding length(mm)3260
J Track length(mm)4070
K Track gauge(mm)2180
L Track width(mm)2780
M Track board width(mm)600
V Min. slewing radius of working device(mm)3040
Z Top height for min. slewing radius of working device (mm)8005

Bucket capacity(m3)0.8
Operation weight(kg)20600
O Max. Digging height(mm)9223
P Max. dumping height(mm)6506
Q Max. digging depth(mm)6620
R Max. vertical digging depth(mm)5980
T Max. digging radius(mm)9875
U Max. ground digging radius(mm)9700
Max. bucket digging force(kN)112(11400)
Slewing speed(rpm)11.7
Travel speed(km/h)L:3.1 H:5.5
Gradeability35
Grounding pressure(kPa)44.9
Standard track board width(mm)600
Max angle of slewing on slope(deg)25

Dimension

A Overall length (in transportation)(mm)9423
B Overall width(mm)2780
C Overall height (in transportation)(mm)3165
D Body overall height ( cab top)(mm)2940
E Clearance of super structure(mm)1064
F Min clearance(mm)468
G Rear slewing radius(mm)2720
H Track grounding length(mm)3260
J Track length(mm)4070
K Track gauge(mm)2180
L Track width(mm)2780
M Track board width(mm)600
V Min. slewing radius of working device(mm)3040
Z Top height for min. slewing radius of working device (mm)8005

Hydraulic Heavy Equipment Excavator SC200.8 With Closed Cab 108kw Cummins Diesel Engine
