Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach
Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach
Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach
Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach
Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach
Yanmar Engine Mini Hydraulic Attachments Excavators 5530 Mm Max Digging Reach
Specifications
Brand Name :
Visbull
Model Number :
CT45-7B
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Mini Excavator
Operation weight :
4200KGS
Engine :
Yanmar
Rated engine power :
27kw
Working pressure :
29 Mpa
Max. digging reach :
5530 mm
Max. digging depth :
3405mm
Max. digging height :
5030 mm
Description

1. Have passed CE certificate
2. Originally imported Yanmar engine 4TNV88(25.2KW/2200rpm), low noise, low fuel consumption, big torque;

3. Main pump, valve, swing motor and travel motor are equipped with originally imported KYB

4. Date collected by sensors to prompt power system and hydraulic system cooperate well to improve 10% dig force

5. Hydraulic pipe from America Gates with reliable quality
6. X Shape undercarriage guarantee the stability in bad work condition
7. Standard equipment Air Conditioner

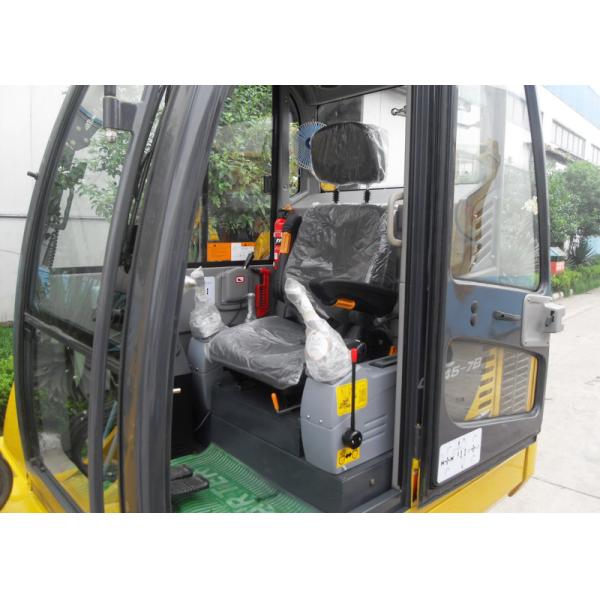

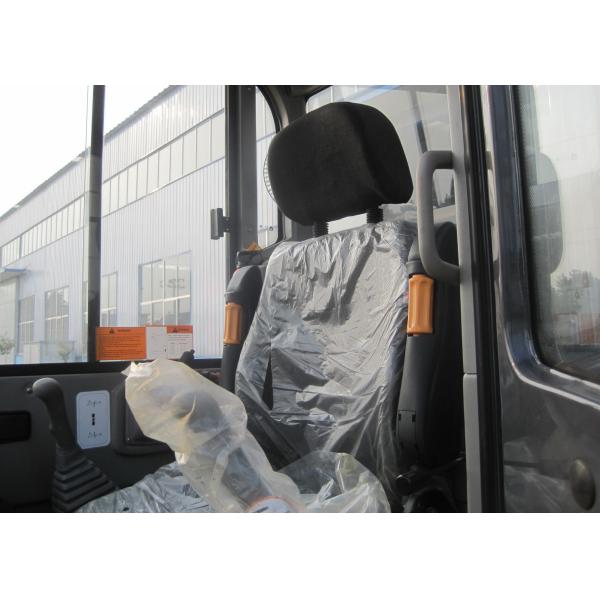

Excavator model CT45-7B with cabin
The following are the prices for optional attachments
Name 　 Remark
Hammer 　 Top type
Hydraulic quick hitch 　 　
The following are the prices for various buckets
Name 　 Remark
350mm Rock bucket 　 With 2 teeth
620mm bucket 　 Standard bucket, with 4 teeth
780mm bucket 　 With 5 teeth
850mm Tilting bucket 　 Without teeth
1200mm bucket 　 Without teeth
　
Loading
Container body size 40HQ:12000*2130*2720(LxWxH) load 3 units in one 40HQ container
　
Specification of CT45-7B with cabin
Operate weight kg 4200
Bucket capacity M3 0.17
Engine model YANMAR 4TNV88 @27KW
Engine power(kw) 27
Swing spreed(rpm) 11
Ground pressure(Kpa) 29
Travel speed(km/h) 4.4/2.7
Tracking force(kn) 34.1
Gradeability(°) 30
Main dimensions
Upper structure witdth (mm) 1600
Under carriage width(mm) 1750
Cabinet hight(mm) 2455
Rear swing radius(mm) 1600
Ground clearance(mm) 350
Working range
Max.digging radius(mm) 5530
Max.digging depth (mm) 3405
Max.digging height(mm) 5030
Max.dumping height(mm) 3410
Max.dozer cutting depth(mm) 380
Max.dozer lifting hight(mm) 255
Standard Equipment
Japanese KYB main pump PSVD2-21E-14
Japanese KYB tracking motor MAG-26VP-370F-1
Japanese KYB swing motor MSG-27P-18E-5
Italian valve ,pilot control lever
Japanese Multi-function Valve
Warranty,Payment and Delivery
1 Warranty Term: 1200 working hours or 1 year, whichever come first
2 Payment Term: 100% T/T or Irrevocable L/C payable at sight
3Time of delivery: 30 days for models with standard equipment, after receipt of L/C or 30% T/T down payment.
