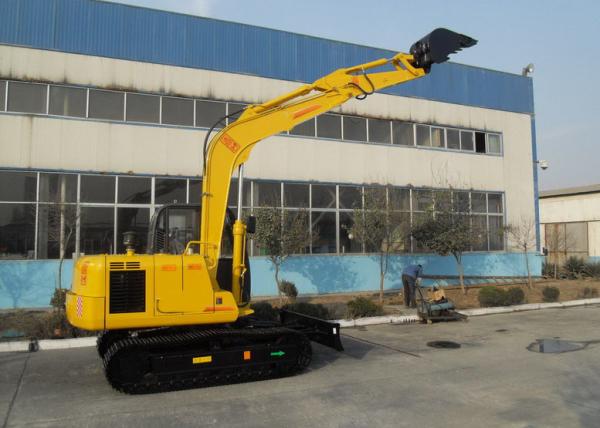

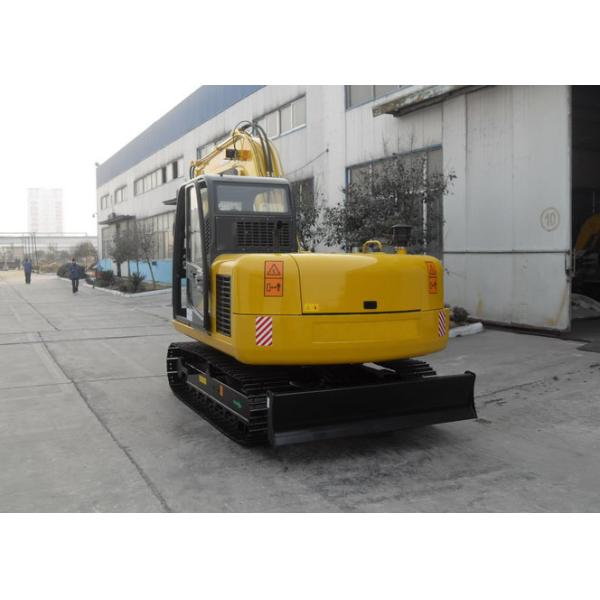

Heavy Equipment Excavator Swing Speed 11RPM , Long Reach Excavators
Heavy Equipment Excavator Swing Speed 11RPM , Long Reach Excavators
Heavy Equipment Excavator Swing Speed 11RPM , Long Reach Excavators
Heavy Equipment Excavator Swing Speed 11RPM , Long Reach Excavators
Heavy Equipment Excavator Swing Speed 11RPM , Long Reach Excavators
Heavy Equipment Excavator Swing Speed 11RPM , Long Reach Excavators
Specifications
Brand Name :
Visbull
Model Number :
CT80
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Hydraulic Excavator
Operation weight :
8300KGS
Engine :
Yuchai or Cummins
Rated engine power :
60kw
Working pressure :
30.5 Mpa
Max. digging reach :
6810 mm
Max. digging depth :
4375mm
Max. digging height :
7310 mm
Description

8300kg Operating Weight Hydraulic Excavator With Cummins Diesel Engin Swing speed 11RPM

CT80-7

※ Chinese-made engine YC4108G

※ Power 56 kW/2200 rpm

※ Conforms with EU II emission control regulations

※ Imported hydraulic system with dual pump and dual circuit

※ Guaranteed for three years under normal use and maintenance

※ Japanese-made KAWASAKI main pump, KYB multi-circuit valve, swing motor, walking motor

CT80-7A

※ American-made engine CUMMINS B3.3(BC30060)

※ Power 60 kW/2200 rpm, a guarantee for super power

※ Conforms with EU III emission control regulations

※ Imported hydraulic system with dual pump and dual circuit

※ Guaranteed for three years under normal use and maintenance

※ Japanese-made KAWASAKI main pump, KYB multi-circuit valve, swing motor, walking motor

CT80-8

※ Chinese-made engine YC4108G

※ Power 56 kW/2200 rpm

※ Conforms with EU II emission control regulations

※ Japanese-made TOSHIBA hydraulic load sense system, automatic hydraulic pressure and power replenishment

※ Guaranteed for three years under normal and maintenance

※ Japanese-made with dual pump and dual circuit

※ Japanese-made TOSHIBA main pump, KYB multi-circuit valve, swing motor, walking motor

CT80-8A

※ American-made engine CUMMINS B3.3(BC30060)

※ Power 60 kW/2200 rpm

※ Conforms with EU III emission control regulations

※ Imported hydraulic system with dual pump and dual circuit

※ Guaranteed for three years under normal use and maintenance

※Japanese-made TOSHIBA hydraulic load sense system, automatic hydraulic pressure and power replenishment

※ Japanese-made TOSHIBA main pump, KYB multi-circuit valve, swing motor, walking motor

Main Specification for the CT80 mini excavator

Operating weight 8300 kg
Bucket capacity 0.32 m³–0.38 m³
Engine power 60 kW @ 2200 rpm
Swing speed 11 rpm
Ground pressure 38 kPa
Travel speed 4.6/2.9 km/h
Tracking force 70.8 kN
Gradeability 30° (58%)
Bucket digging force 54.8 kN
Arm digging force 46.6 kN
Hydraulic system (KYB)
Main pump type gear pump
Flow pressure 20.9 l/min @ 2200 rpm/3.9 MPa
Attachments overload pressure boom/arm/bucket 30.5 MPa
Dimensions
Boom length 3905 mm
Arm length 1750 mm
Upper structure width 2170 mm
Undercarriage width 2100 mm
Overall height with cabinet 2540 mm
Rear swing radius 1835 mm
Clearance under counter weight 785 mm
Tumbler distance 2200 mm
Ground clearance 370 mm
Overall length for transportation 6430 mm
Working range
Max digging radius 6810 mm
Max digging radius at ground level 6680 mm
Max digging depth 4375 mm
Max vertical wall digging depth 3200 mm
Max digging height 7310 mm
Max dumping height 4950 mm
Max dozer cutting depth 430 mm
Max dozer lifting height 310 mm
