Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
Specifications
Brand Name :
Visbull
Model Number :
CT60-7B
Certification :
Ghost/ISO/SGS/CE
Place of Origin :
China
MOQ :
1 unit
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
2000 units per month
Delivery Time :
10 working days after received L/C or your deposit
Packaging Details :
Naked packing
Product Name :
Hydraulic Excavator
Operation weight :
6200KGS
Engine :
Yanmar
Rated engine power :
38.1kw
Working pressure :
34 Mpa
Max. digging reach :
6245 mm
Max. digging depth :
3875mm
Max. digging height :
5785 mm
Description

Specifications

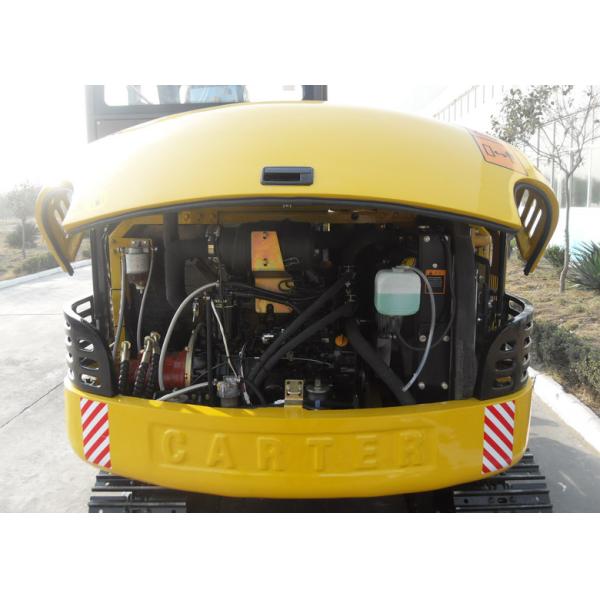

Imported Japan made engine YANMAR 4TNV94
Ppower 38.1KW/2200RPM, a guarantee of super power
In conformity with the EU III emission control regulations
Imported hydraulic system with dual pump and dual circuit, stable work performance
Guarantee for 3 yrs under normal use and maintenance
Imported hydraulic components, South Korea made main pump, multi-circuit valve, swing motor, walking motor, Japan made or South Korea made gasoline tank
On-line digital monitoring and control system
GPS satellite position and remote diagnose system(optional)
Cold&warm air conditioner supply under different kinds of weather conditions
Light and handy pilot operating system
Steel pedrail

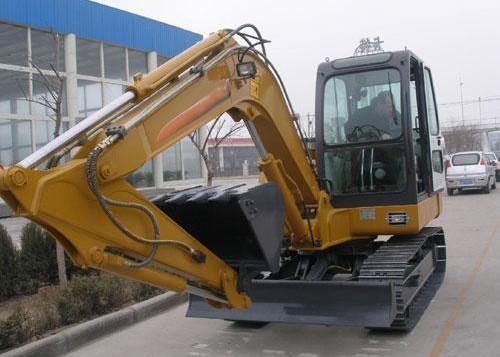

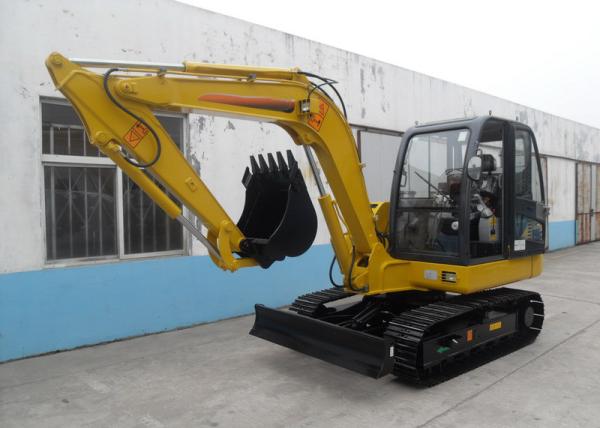

Excavator model CT60-7B with cab
Cargo body size (LxWxH) (mm), load 2 units in
20GP:5690*2130*2180 one 40HQ container
Operate weight kg 6200kg
Bucket capacity M3 0.3m³
Engine model Yanmar 4TNV94
Engine power (kw) 38.1Kw
Swing speed (rpm) 10
Ground pressure (KPa) 34
Travel speed (km/h) 4.0/2.5
Tracking force (kn) 49.3Kn
Gradeability (°) 30°(58%)
　 Upperstrcuture witdth (mm) 1785
　 Undercarriage width (mm) 1880
Main dimensions Cabinet height (mm) 2650
　 Rear swing radius (mm) 1700
　 Ground clearance (mm) 400
　 Max.digging radius (mm) 6245
　 Max.digging depth (mm) 3875
　 Max.digging height (mm) 5785
Working range Max.dumping height (mm) 4095
　 Max.dozer cutting depth (mm) 505
　 Max.dozer lifting height (mm) 300
　 Germany Roxroth main pump
　 U.S.A Parker reducer and travel motor
Standard US Parker swing motor
Equipment US Parker multi-circuit valve
　 Japanese Bridgestone rubber track
　 Cold&warm air conditioner supply under different kind of weather conditions

Hydraulic Heavy Construction Vehicles , Wheel Loader Excavator 34 Mpa Working Pressure
