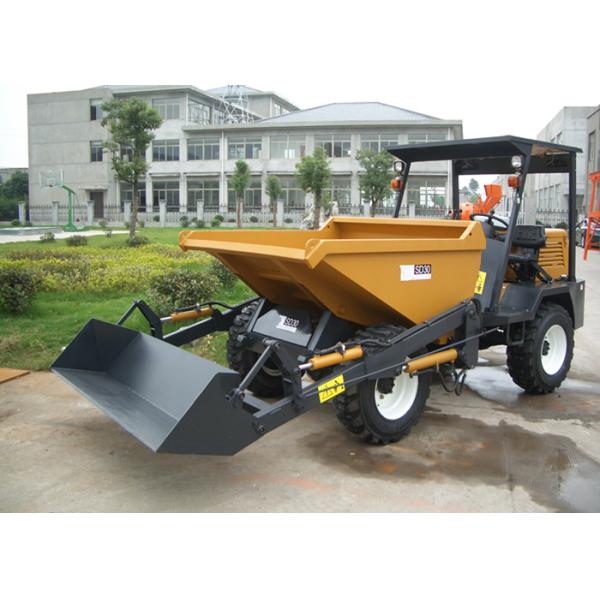

Self Loading Shovel Diesel 3 tons 4WD Mini Concrete Dumper For Site Works / Building Construction
Self Loading Shovel Diesel 3 tons 4WD Mini Concrete Dumper For Site Works / Building Construction
Self Loading Shovel Diesel 3 tons 4WD Mini Concrete Dumper For Site Works / Building Construction
Self Loading Shovel Diesel 3 tons 4WD Mini Concrete Dumper For Site Works / Building Construction
Specifications
Brand Name :
Visbull
Model Number :
SD30S
Certification :
CE/SGS
Place of Origin :
China
MOQ :
1unit
Price :
US$10600-US$11000 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000pcs per month
Delivery Time :
25-30 working days after received your advance payment
Packaging Details :
Nude packing in container.
Payload :
3000kgs
Skip Capacity :
1500L
Chassis :
Articulated Frame
Engine :
Deutz F3L912 Air - 3
Driving :
4*4
Gradient :
36%
Turning Radius :
4.5m
Dimensions :
4980*2100*2980mm
Weight :
3000kgs
Tipping System :
Hydraulic Tipping Hopper
Color :
Yellow
Rated Power :
38KW
Description

Self Loading Shovel Diesel 3 tons 4WD Mini Concrete Dumper For Site Works / Building Construction

3tons 4WD Diesel Mini Concrete Dumper With Self Loading Shovel

Specifications:

Payload

3000kg

Drive Model

4*4

Skip Capacity

1500L

Wheel Base(mm)

2000

Min Ground Clearance(mm)

≥248

Dry Mass(Kg)

3000

Tyres

Front Wheel

12-16.5

Rear Wheel

12-16.5

Engine

Model

DEUTZ F3L912

Power

38KW2500rpm

Max.speed

27.2km/h

Minimum Turning Radius

4.5m

Weight

3000kgs

Self Loading shovel

Volumetric Capacity

250L

Load Capacity

450kgs

Dimensions

4980*2100*2980mm

Tipping Systern

Hydraulic Tipping Hopper

Clutch

Constant-contact, single-disc, dry clutch

Brake

Drum type with hydraulic control

Steering Gear

Hydraulic follow-up Service

Gear Box With

Four forward speeds and one reversed speed

Ground Speed (Km/H)

1st Gear

4.26

2nd Gear

8.8

3rd Gear

16.14

4th Gear

27.2

Reverse

3.48

Minimum Turning Radius (m)

4.225

Max, Grade Ability (%)

36

Electric Starting

Yes

Container Loading

20GP container can be loaded with

1Unit

40GP container can be loaded with

3Units


Description:

1 . Wheel type mini dumper

2 . With power steering and powerful 38KW engine, it's easier to move at slope or rugged area.

3 . with transmission for car, it's possible to change speed during travel.

4 . Efficiency of transportation by transportation, loading, unloading and dumping ability.

5 . 4*4 driving articular frame with hydraulic steering
6 . Beinei Diesel Engine By DeutZ Tech., F3L912,50HP,air cooling type.

7 . Self Loading Shovel: 450kgs / 250L.



Applications:

Dumpers are widely used in many different of site works , such as the construction industry,

the factory floor , battlefield ,
protecting road section , the municipal engineering , underground mines and so on .

Competitive Advantage:

1 . As a low volume, short distance transport of bulk materials for small site dumpers, because

of its easy operation, small
turning radius can be used in a narrow environment, etc,.
2 . Full Cover of Diesel Engine
3 . Strong and Heavy Duty Frame and Chassis
4 . Bucket can be full automatically tipped by hydraulic cylinder
5 . Direction change of dumper can be easily controlled by hydraulic steering wheel
