2WD Diesel Mini Concrete 2 Tonne Dumper For Site Works / Municipal Engineering / Underground Mines
2WD Diesel Mini Concrete 2 Tonne Dumper For Site Works / Municipal Engineering / Underground Mines
2WD Diesel Mini Concrete 2 Tonne Dumper For Site Works / Municipal Engineering / Underground Mines
2WD Diesel Mini Concrete 2 Tonne Dumper For Site Works / Municipal Engineering / Underground Mines
Specifications
Brand Name :
Visbull
Model Number :
SD20
Certification :
CE/SGS
Place of Origin :
China
MOQ :
1unit
Price :
US$6100-US$6300 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1,000pcs per month
Delivery Time :
25-30 working days after received your advance payment

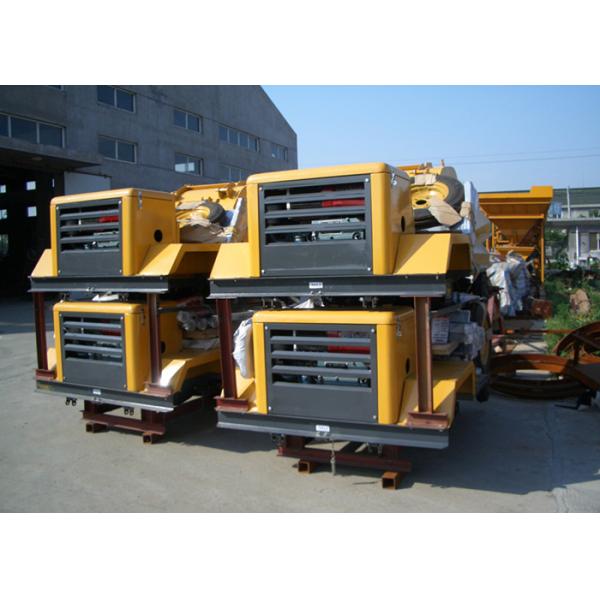

Packaging Details :
Nude packing in container.
Payload :
2000kg
Skip Capacity :
1.0m3
Chassis :
Rigid Or Articulated Frame
Engine :
CHANGFA,385
Driving :
4*2 Or 4*4
Gradient :
25%
Turning Radius :
4m
Dimensions :
3058*1800*2100mm
Weight :
1500kgs
Starting System :
Electric start,12volts battery
Color :
Yellow
Rated Power :
32HP
Description

2WD Diesel Mini Concrete 2 Tonne Dumper For Site Works / Municipal Engineering / Underground Mines

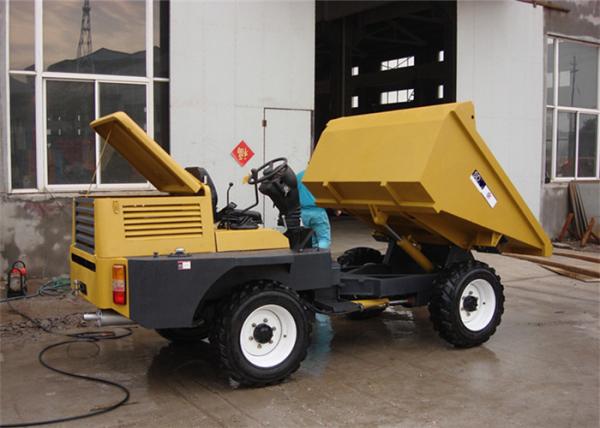

2tons Mini Dumper With Hydraulic Tipping Hopper

Specifications:

Model

SD20

Payload

2000kg

Diesel Engine

Twin cylinders, Water-cooling system with radiator

Rated Power

32hp/2600 rpm

Water capacity

800 ltr (28.3 cuf)

Struck capacity

1000 ltr (35.3 cuf)

Heaped capacity

1300 ltr (45.7 cuf)

Min.Out turning circle Radius

4.5 m

Min. Ground Clearance

200mm

Discharging Height

1247mm

Engine starting

Electric

Electric Battery

12 V, 75 amp.

Driver awning

Yes

Road speed

3.85 ~24.66 km/h

Reverse speed

3.15 km/h

Transmission

4 forward & 1 reverse gear

Clutch

Constant-contact, single disc, dry clutch

Tipping system

Hydraulic

Driving axle

4*2

Dimension

3058*1725*2360mm

Unladed weight

1490kg

Skip capacity

1.0m3



Description:

1 . Wheel type mini dumper
2 . With power steering and powerful 32HP engine , it's easier to move at slope or rugged area .
3 . with transmission for car , it's possible to change speed during travel.
4 . Efficiency of transportation by transportation , loading , unloading and dumping ability.
5 . 4*2 driving articular frame with hydraulic steering
6 . China made F3L912 air cooled diesel engine with Deutz technology / NB485 water engineering
diesel engine

Applications:

Dumpers are widely used in many different of site works , such as the construction industry, the factory
floor , battlefield ,protecting road section , the municipal engineering , underground mines and so on .

Competitive Advantage:

1 . As a low volume, short distance transport of bulk materials for small site dumpers, because of its easy
operation, small turning radius can be used in a narrow environment, etc,.
2 . Full Cover of Diesel Engine
3 . Strong and Heavy Duty Frame and Chassis
4 . Bucket can be full automatically tipped by hydraulic cylinder
5 . Direction change of dumper can be easily controlled by hydraulic steering wheel
