10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
Specifications
Brand Name :
BIOCLEAN
Model Number :
BCADT-8000
Certification :
SGS-CE-OWB-2023-1098
Place of Origin :
NINGBO CHINA
MOQ :
1
Price :
5000-10000 USD
Payment Terms :
T/T,Western Union,
Supply Ability :
10000 Units per year
Delivery Time :
40 Workingdays
Packaging Details :
Custom steel frame crating
Model :
BCADT-8000
Gross Vehicle Weight (GVW) :
18t
Rated Loading Capacity :
9.8t
Engine Model :
Weichai WP10H400E50
Engine Power :
265 kW (360 HP)
Emission Standard :
Euro V
Description

Product descriptions


10000L Truck-Mounted Tack Hot Bitumen Pressure Emulsion Distributor: Core Advantages


As an intelligent, automated high-tech equipment, the 10000L distributor specializes in handling emulsified bitumen, cutback asphalt, hot mix asphalt, and high-viscosity modified bitumen. Engineered for high-grade highways, it excels in prime coats, waterproof layers, and bonding layers, meeting strict construction standards.

Professional Prowess


Integrating key components (automotive chassis, 10000L tank, precision pumping/spraying module, thermal oil heating system, etc.), it draws on global advanced technologies to boost construction quality. Its computerized control ensures stable, world-class performance, with precise spraying for consistent coverage. The thermal oil heating system prevents bitumen caking by maintaining optimal fluidity.

User-Centric Operation & Maintenance


Designed for usability, it features intuitive operation and a humanized layout (in-cab control, ergonomic platform) to reduce training and on-site hassle. Routine maintenance is simplified via accessible, standardized components—critical parts are easy to inspect/replace without specialized tools. Key systems use corrosion-resistant and wear-resistant materials, while modular design streamlines troubleshooting, minimizing downtime.

Rugged Adaptability


Optimized for harsh conditions (extreme temperatures, rough sites), it boasts a robust chassis, reinforced frame, and sealed control systems (dust/moisture-proof). This ruggedness, paired with low upkeep demands, ensures consistent performance in long-term high-intensity projects, making it a cost-effective asset for road construction teams.

In essence, the distributor merges professional precision with user-friendly maintenance, delivering reliable, high-quality results for high-grade highway projects while cutting operational costs.


Product Specification


Chassis Model DFL1160BX1V
Engine Model ISB180 30
Vehicle Size 8790*2480*2840
Asphalt tank capacity 10000l (three layer insulation tank)
Spread width 4500mm or 6000mm
Asphalt distribution 0.25～3L/m2
Spread error ±2%
Number and control mode of nozzles 34 intelligent nozzles
Heating mode Heating by diesel burner imported from Italy (200000 kcal / h)
Spraying medium Hot asphalt, dilution asphalt, emulsified asphalt, modified asphalt, etc
Hydraulic pump QGB950-L
Proportional valve EFBG-05-110
Asphalt pump Shanggui qgb680 (maximum displacement 680l / min)
Hydraulic drive motor of asphalt pump 05-110-bd31 (Ningbo thalamus)

Product Overview

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck


10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

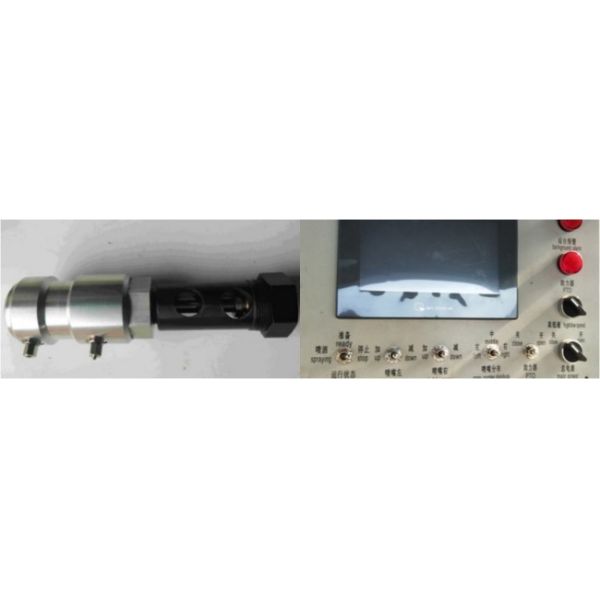

Cylinder nozzle of asphalt distributor

The asphalt distributor’s cylinder nozzle features a smart protection mechanism: diesel flushing and high-pressure air purging prevent bitumen solidification inside the nozzle. This innovative design significantly extends the nozzle’s service life, reducing replacement frequency and maintenance costs while ensuring consistent spraying performance.

Indoor operation control system

The equipment integrates an indoor operation control system, designed for intuitive operation that streamlines workflows and cuts labor expenses. This user-friendly setup minimizes training requirements, enabling operators to manage asphalt distribution tasks efficiently with minimal effort, boosting overall construction productivity.


10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

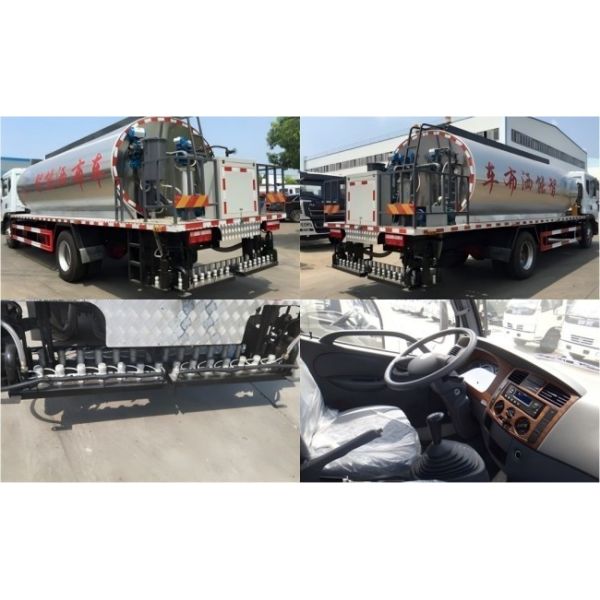

Asphalt spraying rod adopts

The asphalt spraying rod employs a three-stage folding structure for versatile operation. Vertical adjustment of the rod enables double or multiple spraying modes, while horizontal movement expands the spraying coverage. It also effectively navigates obstacles on job sites, enhancing adaptability to diverse construction scenarios.

Cab Control

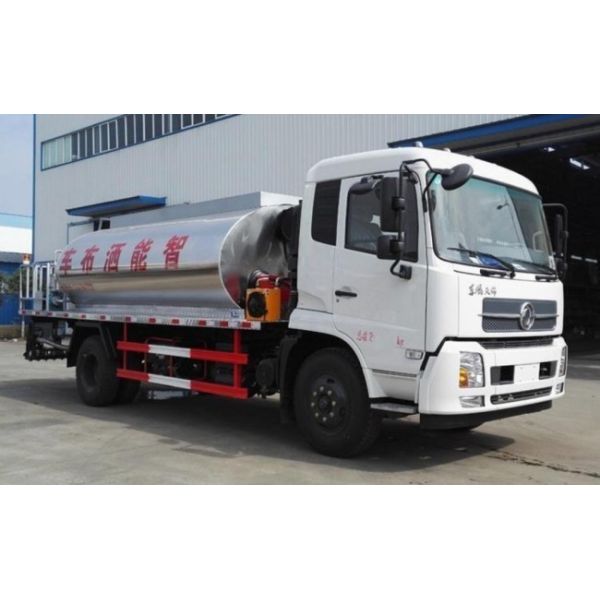

The vehicle is built on the Dongfeng Tianjin luxury chassis, delivering exceptional load-bearing capacity, agile handling, and a sleek, modern appearance. This robust foundation ensures safe, efficient, and reliable service for inter-city logistics and road construction clients, meeting the demands of high-intensity operational environments.

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck




10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck


10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck

10000L truck-mounted tack hot bitumen pressure asphalt emulsion distributor trailer sprayer truck
