Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
Specifications
Brand Name :
BIOCLEAN
Model Number :
BCAWP-15PC
Certification :
SGS-CE-OWB-2023-1098
Place of Origin :
NINGBO CHINA
MOQ :
1
Price :
5000-10000 USD
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
10000 Units per year
Delivery Time :
40 Workingdays
Packaging Details :
Custom steel frame crating
Model :
BCAWP-15PC
Gross Vehicle Weight (GVW) :
4.95T
Rated Loading Capacity :
2.1T
Engine Model :
Weichai WP10H400E50
Engine Power :
201KW
Emission Standard :
Euro VI
Description

Product descriptions

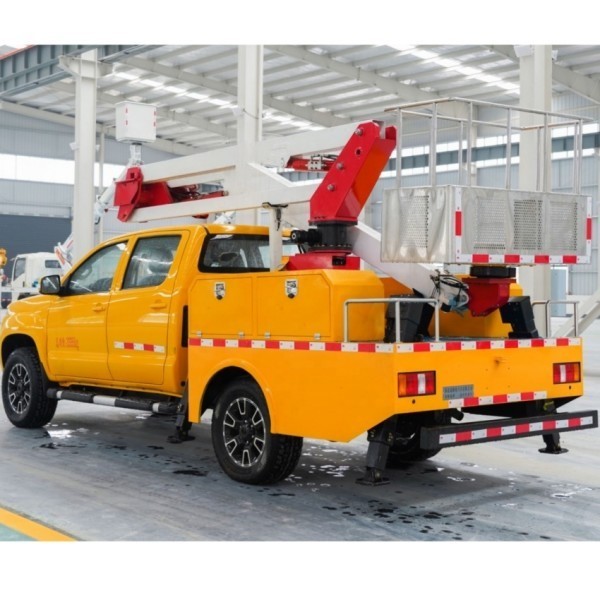

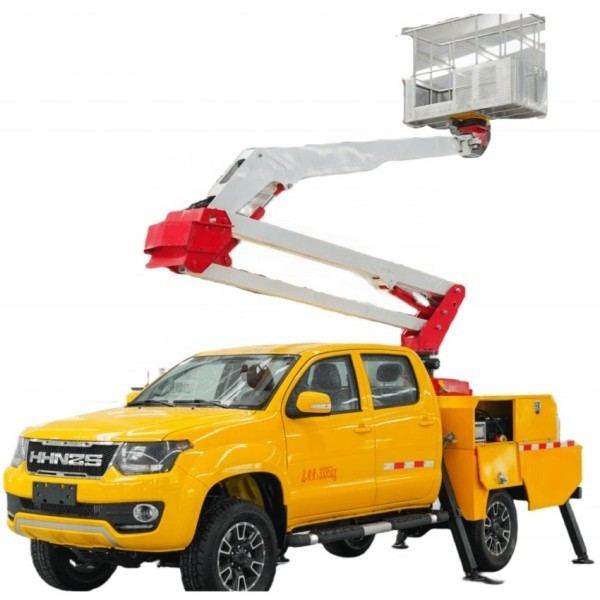

14m Pickup-Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck: Safe & Professional High-Altitude Solution


Engineered as a specialized 14-meter high-altitude work tool, this pickup-mounted scissor mobile mast aerial lift integrates robust safety safeguards with professional-grade functionality—ideal for maintenance, installation, and facility upkeep across residential, commercial, and industrial sites. Its pickup-mounted design enhances mobility, while the 14-meter working height delivers targeted reach for mid-rise tasks, balancing flexibility with uncompromising performance.

Safety is engineered into every critical system, starting with the outrigger-boom interlock mechanism: a solenoid valve-enabled interlock between the upper working unit and lower chassis eliminates unsafe operations, forming a reliable safety barrier during elevation. For emergency scenarios, an electric emergency pump provides fail-safe protection—if the chassis engine or hydraulic main pump malfunctions, operators can simply press and hold the emergency pump button while initiating the required movement to safely lower personnel to the ground, ensuring full vehicle recovery. The integrated emergency shutdown system allows instant engine cutoff and power termination, while a computerized control module paired with wireless remote support enables one-touch engine start/stop, minimizing operational risks.

Professional capability shines through its precision-focused design. A high-definition intelligent display offers real-time equipment status monitoring, enabling operators to quickly identify and resolve faults while staying updated on vehicle conditions—streamlining maintenance and reducing downtime. The platform boasts multi-action compound capability, supporting free combination of operations: boom extension/retraction, luffing, turntable rotation, and work basket swivel can be executed simultaneously, adapting to complex high-altitude task requirements with efficiency. Equipped with a wireless remote control featuring a 100-meter effective operating range, it ensures unobstructed, stable communication between the ground and work basket—facilitating flexible, precise operation without spatial constraints.

This 14m pickup-mounted aerial lift redefines professional mid-rise work: its safety-centric engineering, versatile operational capabilities, and pickup-mounted mobility make it a trusted partner for scenarios requiring reliable reach, precision, and security at 14 meters.

Product Specification

Vehicle parameters Vehicle size 5970×1950/2000×2750/2600mm (length, width and height)
Total mass 3335kg Overall mass 3010kg
Chassis parameters Emission standard Euro V Maximum speed 140km/h
Fuel tank volume 70L wheelbases 3405mm
Engine Inline four-cylinder water-cooled turbocharged, multi-point EFI
Model Displacement(mi) Power(kw) Torque(N.m)
4K22D4T 2378 160 320
Maximum torque revolutions (rpm) Maximum power revolutions (rpm) Transmission Fuel oil
2000-4000 5600 6MT gasoline
Upper Configuration Basket size 800×610×1100mm(length, width and height) Working platform load rating 120kg
Maximum operating radius 6m Maximum operating height 13.5m (including 1.7m person height)
Boom form Hybrid arm (folding arm with telescopic)
Mechanical system Battery power Electric power source dual battery
Outrigger form A-type outrigger with automatic outrigger function (1 time leveling)
security system Big arm limit, soft leg protection
Insulation Type of working bucket Rotation angle Operating Method
Bucket insulation (400V) single-player single-fighting 350° Remote control operation


Product Overview

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck




Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck


Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck

Pickup Cherry Picker Mounted Scissor Mobile Mast Aerial Lift Work Platform Truck
